Summary of Contents for IAdea XMP-6200

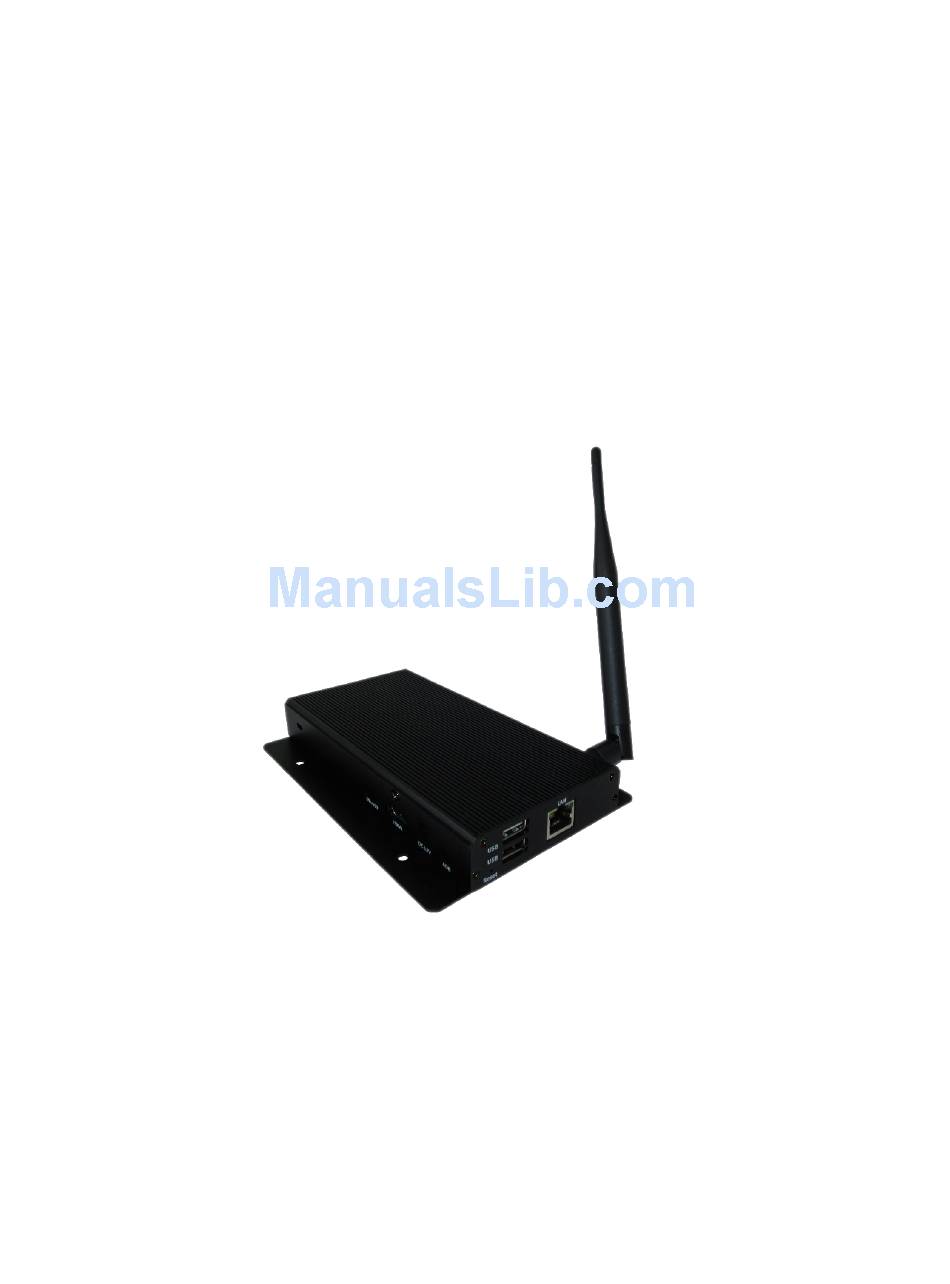

- Page 1 XMP-6200 Hardware User Manual...
-
Page 2: Table Of Contents
Contents Introduction 1.1. Package contents 1.2. Installation 1.3. Physical view Technical Data 2.1. Specifications... -
Page 3: Introduction
1. Introduction This document describes the hardware of the XMP-6200. 1.1. Package contents AC Adapter Media Player Unit Wi-Fi Antenna HDMI Cable (with select power plug) Velcro (2 sets) INCLUDED: A USB mouse is required for system setup 1.2. Installation Attach wireless antenna Attach the wireless antenna as shown below, and then screw antenna clockwise onto the post. -
Page 4: Physical View
Mounting Option 2: [Attach the player on the back of the monitor using Velcro] 1. Separate the Velcro pads, and stick on the bottom of player as shown below. 2. Stick the other Velcro pad onto the back of monitor, and then attach the player to it. Use HDMI cable to connect player and the monitor. -
Page 5: Technical Data
DC input port Micro USB for ADB , Android debug console port 2. Technical Data 2.1. Specifications XMP-6200 POPAI Screen Media Standards Video format support S6 (MPEG-1 SIF, 3Mbps CBR) S7 (MPEG-1 480p, 10Mbps CBR) S8 (MPEG-1 720p, 15Mbps CBR) - Page 6 Velcro ( 2 sets ) 12V 1.5A DC Power requirement Power consumption Environmental Operating temperature: 0 – 45° C / 32 – 113° F Humidity: 10 – 85% @ 40° C / 32 – 104° F non-condensing Dimensions 167x118.8x24.5 mm ( 6.57x4.67x0.96 inches) 275 g Weight 0.61 lbs...
