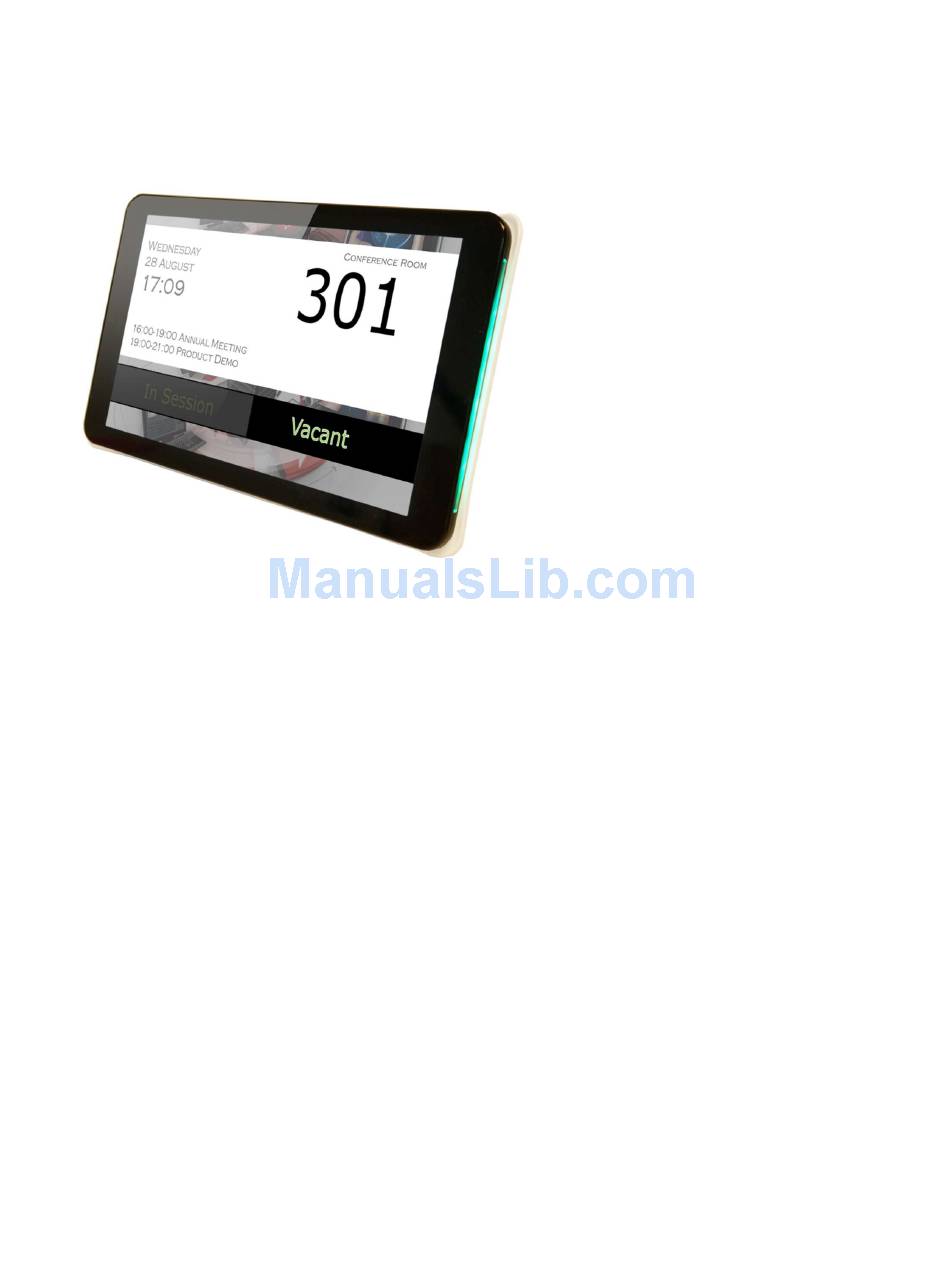

- Page 1 XDS-1070/1078 Hardware User Manual...
-
Page 2: Table Of Contents
Contents XDS-1070/1078 Hardware User Manual Introduction 1.1. Package contents 1.2. Physical view and features 1.3. Installation Technical Data 2.1. Specifications 2.1. Disclaimer... -
Page 3: Xds-1070/1078 Hardware User Manual

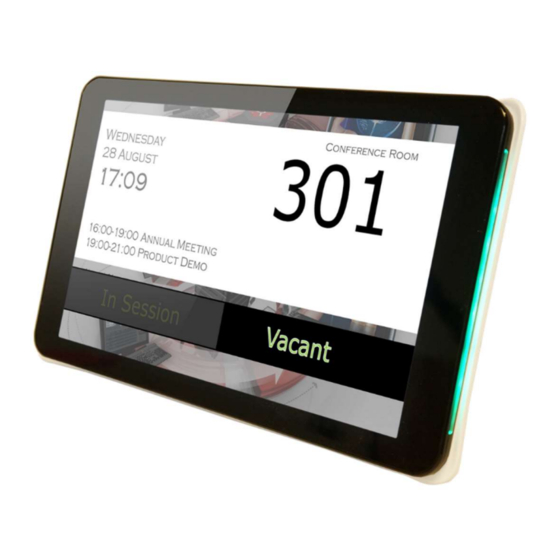

1. Introduction This document describes the hardware specification of the XDS-1078. 1.1. Package contents Power and MicroSD Table Stand Power adapter with Main Unit select power plug card brackets 1.2. Physical view and features Front View... - Page 4 Rear View...
-
Page 5: Installation
1.3. Installation Securing the power and network cable Insert power plug Fasten bracket onto the socket Securing Micro SD card Insert SD card bracket Fasten SD card bracket Installing the table stand Simply screw the supplied table stand into stand screw hole Support landscape and portrait setup... - Page 6 Mounting XDS-1078 is MIS-D75 compatible, the recommended screw is M4 x 4.5~5mm (excl. bracket thickness) Mounting Option 1: [VESA mount] Supporting VESA standard: VESA MIS-D75 (75*75mm) Supporting screw: M4*4mm (exclude the mounting plate thickness) Mounting Option 2: [Using back cover] (power / SD card brackets MUST NOT installed while mount on back cover) Release the back cover screw to release back cover Install back cover : thread head height must not exceed 3mm...
-
Page 7: Technical Data
2. Technical Data 2.1. Specifications XDS-1070/1078 10.1” HD panel Display 10 points multi-touch ( XDS-1078 only ) Programming LED bar x 2 ( XDS-1078 only ) 300 nits maximum brightness 1280x800 panel resolution Viewing angle (H/V): 170/170 Built-in speaker 2W x 2 H.264 (up to 1080p,10Mbps) -
Page 8: Disclaimer
2.1. Disclaimer Image Retention Disclaimer When an image is displayed on-screen for prolonged periods of time, you may see a faint image after it is replaced. This is expected normal behavior for displays. Image retention may be reduced by: Avoiding still images shown on-screen for more than a few minutes ...
