IAdea XMP-8552 Quick Start Manual

CAUTION
Risk of explosion if the battery is replaced by an incorrect type
Wait one-half hour after switching off before handling parts
- Replacement of a battery with an incorrect type that can be defeat a safeguard;
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a
battery, that can result in an explosion;
- Leaving a battery in an extremely high temperature surrounding environment that can
result in an explosion or the leakage of flammable liquid or gas;
- A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innova-
tion, Science and Economic Development Canada's licenceexempt RSS(s). Operation is
subject to the following two conditions:
(1)This device may not cause interference.
(2)This device must accept any interference, including interference that may cause
undesired operation of the device.
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure and Industry Canada RSS-102
RF exposure limits set forth for an uncontrolled environment. This device and its antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.
To comply with FCC RF exposure and Industry Canada RSS-102 RF exposure compli-
ance requirements, this grant is applicable to only Mobile Configurations. The antennas
used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.(For XMP-8552 only)
company Name: IAdea Corporation
Address: 3F, No. 21, Lane 168, Xingshan Road,Neihu Dist. Taipei, 114 Taiwan
Tel: 886-2-2791-1110
IAD_DGS_X75_10EP P.6

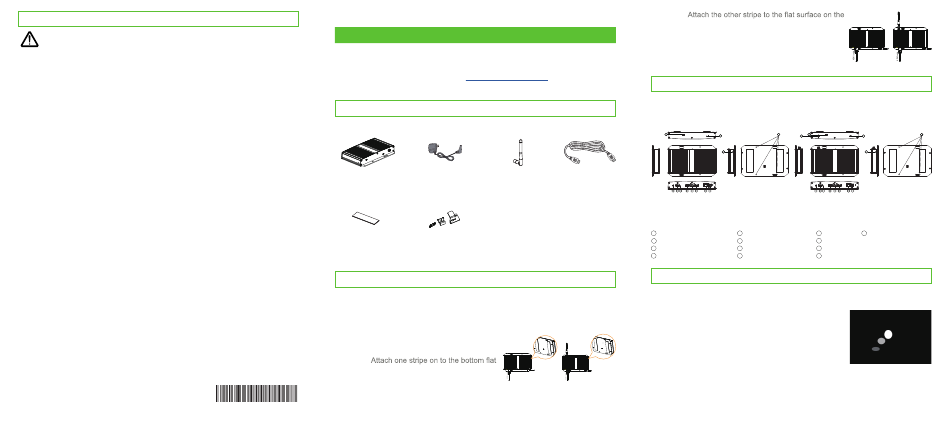

XMP-8550/XMP-8552
Quick Start Guide
This printed quick guide provides a quick walk-through of the set up process. For
complete documentation, please visit http://support.IAdea.com.
Box Content

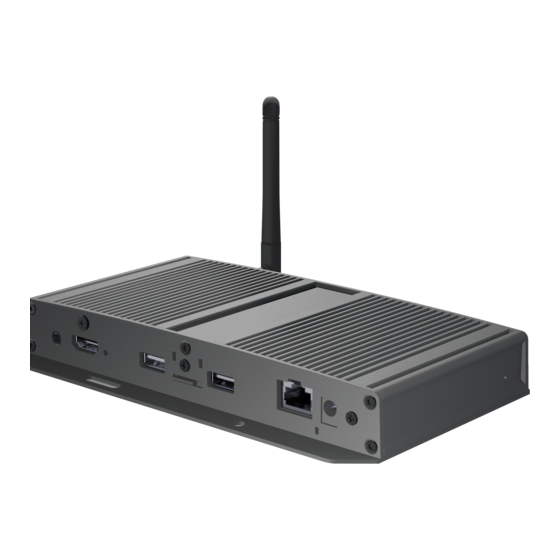

Media player unit
Velcro (2 sets)
Mounting and Installation
1 Attach the wirelss antenna by screwing the antenna clockwise onto the post.
2 Mount the media player to the back of the monitor using the velcro.
1 Seperate the velcro stripe into singles.
2
surface of the media player.
Q41M78SP05905A
Power adapter Wi-Fi antenna HDMI cable
(For XMP-8552 only)
Power bracket and
micro SD card bracket
screw*2
(USB mouse required)
AC adapter AC adapter
(XMP-8550) (XMP-8552)
P.1
3
back of the monitor.
4 Secure the media player to the monitor.
5 Connect the HDMI cable and AC adapter.
Port Connections
2 12 2
1 13
3
4 5 6 7 8 9 10 11 4 5 6 7
(XMP-8550)
1 Kensington lock 5 HDMI out 9 USB port
ADB Power LED Ethernet
2 6 10
3 Reset 7 USB port 11 DC in
Audio out Micro SD card slot
4 8 12 Mounting hole (screw spec: M4)
System Setup
1
Boot up
Plug in the AC adapter to the media player and it
will power on automatically.
Once the user has exited the boot up screen,
users can go through system configurations in both
landscape and portrait orientations.
P.2
AC adapter
AC adapter
(XMP-8550) (XMP-8552)
12
1
3
8 9 10 11
(XMP-8552)
13 Wireless antenna port
(For XMP-8552 only)
