XMP-6400
Hardware User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMP-6400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IAdea XMP-6400

  • Page 1 XMP-6400 Hardware User Manual...
  • Page 2: Table Of Contents

    Contents Introduction 1.1. Package contents 1.2. Installation 1.3. Physical view 1.4. How to set up HDMI AV input Technical Data 2.1. Specifications...
  • Page 3: Introduction

    1. Introduction This document describes the hardware of the XMP-6400. 1.1. Package contents AC Adapter Media Player Unit Wireless Antenna HDMI Cable (with select power plug) Power and Micro SD Velcro (2 sets) card brackets INCLUDED: A USB mouse is required for system setup 1.2.
  • Page 4 Mounting Option 1: [Wall Mount] The player has built-in wall mount bracket, screw thread: M4 Mounting Option2: [Attach the player on the back of the monitor using Velcro] 1. Separate the Velcro pads, and stick on the bottom of player. 2.
  • Page 5: Physical View

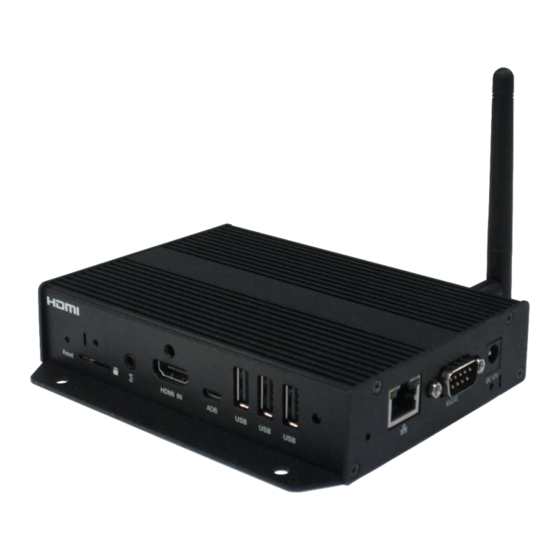

    1.3. Physical view Physical features (left to right in above illustration)  Reset button to perform factory reset  Micro SD card slot  3.5mm Audio out  HDMI connector for digital video and audio combined INPUT  Micro USB for ADB , Android debug console port ...
  • Page 6: How To Set Up Hdmi Av Input

    1.4. How to set up HDMI AV input XMP-6400 supports HDMI input resolution up to HD 720P, configure the AV source video output mode to 720P or AUTO Connect HDMI cable to the HDMI IN port on XMP-6400 HDMI cable...
  • Page 7: Technical Data

    2. Technical Data 2.1. Specifications XMP-6400 Video format support H.264 (up to 1080p,10Mbps) VC-1 (up to 1080p,10Mbps) MPEG-4 ASP (up to 1080p,10Mbps) MPEG-2 (up to 1080p,10Mbps) POPAI Screen Media Standards : S6 to S12, E4,E7,E8 JPEG,PNG up to 1920x1080 Image format support...
