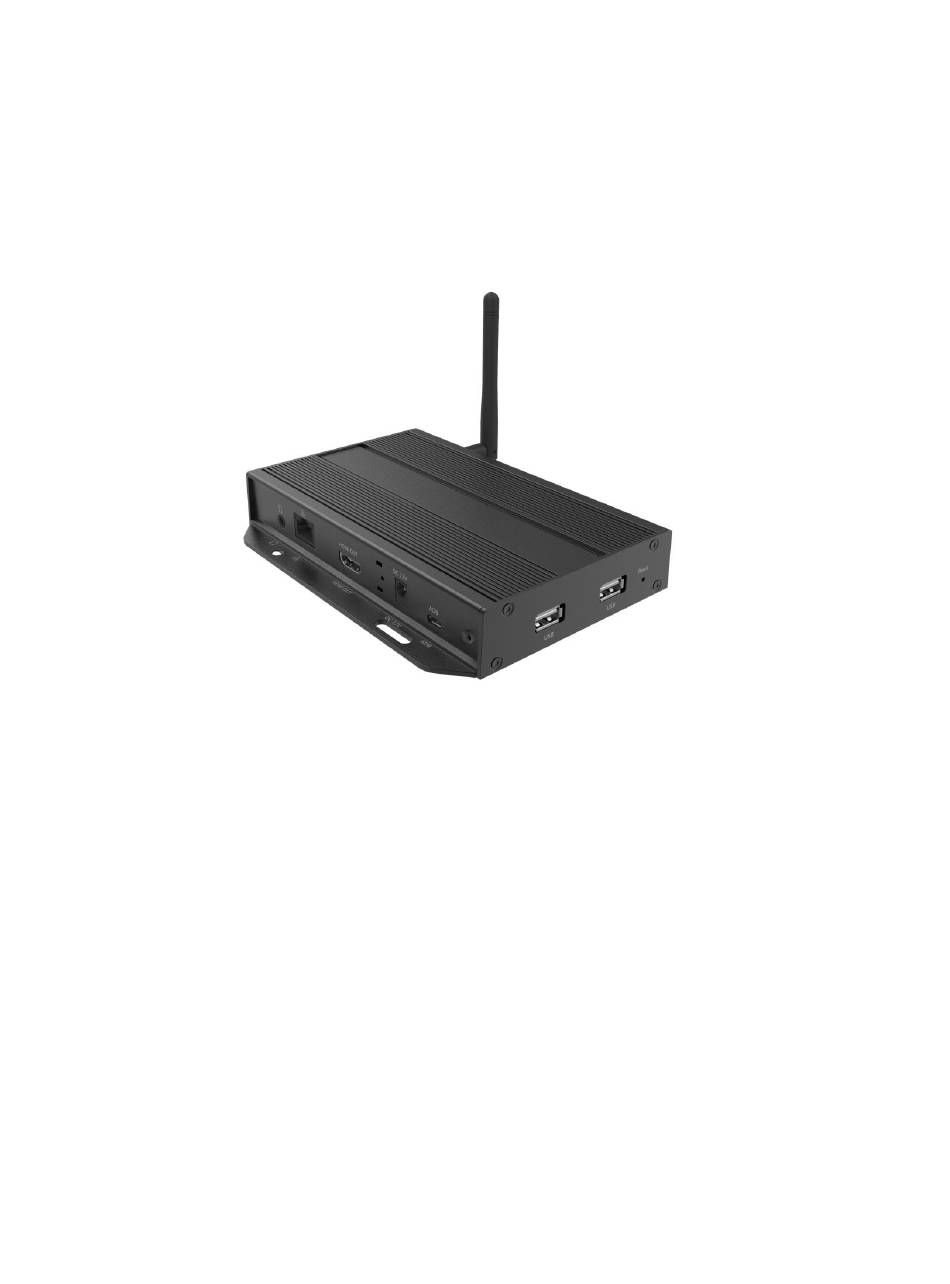

- Page 1 XMP-7500 Hardware User Manual...
-
Page 2: Table Of Contents
Contents Introduction 1.1. Package contents 1.2. Installation 1.3. Physical view Technical Data 2.1. Specifications... -
Page 3: Introduction
1. Introduction This document describes the hardware of the XMP-7500. 1.1. Package contents AC Adapter Media Player Unit Wireless Antenna HDMI Cable (with select power plug) Velcro (2 sets) Power & micro SD card brackets INCLUDED: A USB mouse is required for system setup 1.2. - Page 4 Mounting Option: [Attach on the back of the monitor using Velcro] Separate the Velcro pads, and stick on the bottom of player as shown in right. Stick the other Velcro pads onto the back of monitor, and then attach the player to it. Use HDMI cable to connect player and the monitor Mounting Option: [Built-in wall mount bracket] Mount the player with the built-in mount bracket, refer to below drawing for mounting hole and its dimension, mounting hole is highlighted in...
-
Page 5: Physical View
1.3. Physical view Physical features (left to right in above illustration) • 3.5 mm jack audio out • Ethernet port for network content update • HDMI 2.0 connector for digital video and audio combined output • DC input port • Micro USB for ADB , Android debug console port •... -
Page 6: Technical Data
2. Technical Data 2.1. Specifications XMP-7500 Video format support H.265(up to 4K@60p) H.264 (up to 1080p,10Mbps) VC-1 (up to 1080p,10Mbps) MPEG-4 ASP (up to 1080p,10Mbps) MPEG-2 (up to 1080p,10Mbps) POPAI Screen Media Standards : S6 to S12, E4,E7,E8 Image format support...
