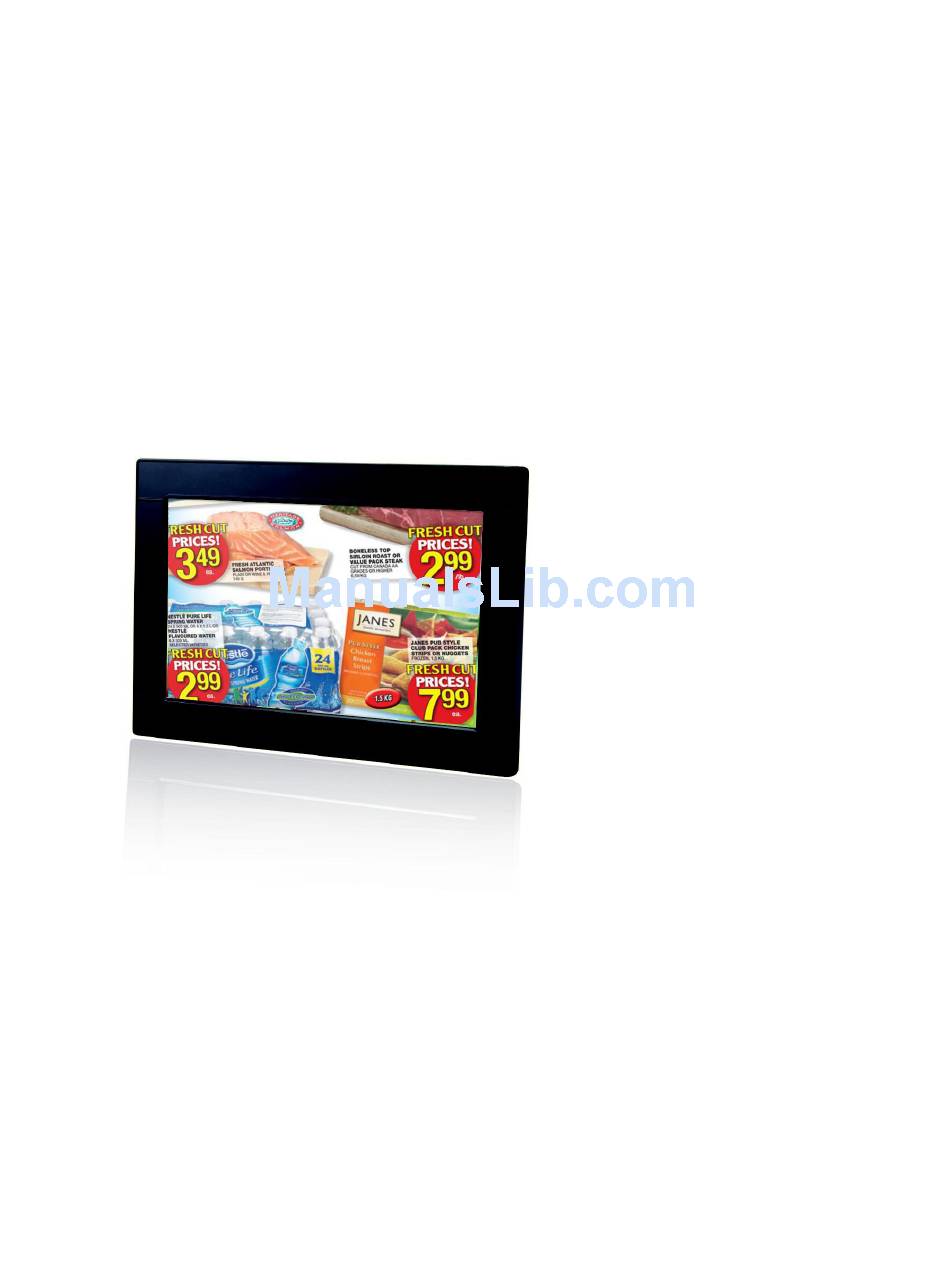

- Page 1 XDS-104 User’s Manual...
-
Page 2: Table Of Contents
Package contents Physical ports and features 2. Configuring the XDS-104 System connections USB keyboard configuration menus Navigating the menus Connect the XDS-104 to your network Clock and calendar settings Brightness and Volume settings Setting a password Factory reset Applying firmware upgrades 3. -
Page 3: Introduction

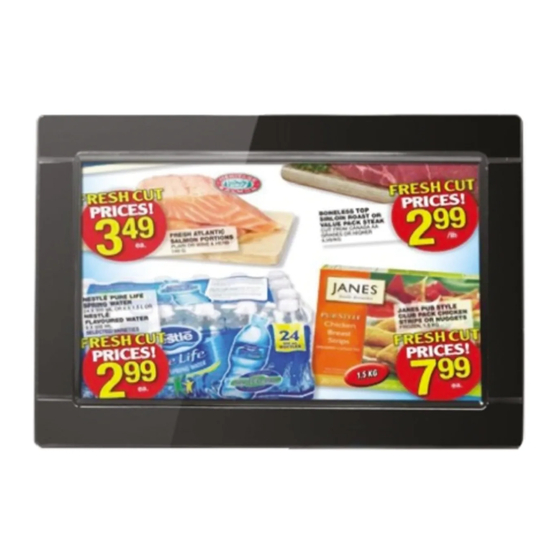

Introduction This document describes the hardware and software operations of the XDS-104, system set up, and frequently asked questions. Features 10-inch widescreen LCD display and stereo speakers Built-in wireless b/g network and optional USB Ethernet adapter Supports advanced device programming via the W3C SMIL open API... -
Page 4: Configuring The Xds-104
USB keyboard configuration menus You must attach a USB keyboard to the XDS-104 to configure settings. With the player booted up and ready, it takes approximately 30 seconds after you plug in the keyboard for the following menu to be displayed: Navigating the menus Navigate the menus using arrow keys, space bar, enter key, ESC, and numeral keys on your USB keyboard. -
Page 5: Clock And Calendar Settings
Wired connection (OPTIONAL): Attach the USB Ethernet Adapter accessory (sold separately; part no. IAD-ACC-ITM-0019) to media player’s USB port and connect a LAN cable to the adapter’s other end (RJ- 45 port). REBOOT player to initialize the adapter. Player IP address You will also need an IP address for the player on your network. -
Page 6: Brightness And Volume Settings
Highlight “Time setting” and press “Enter” on keyboard to <Select> SET local time, then SET time zone. Daylight Saving (DST) rules can be configured when you enter the Set time zone submenu. Brightness and Volume settings From the Main Menu, select Output setting to enter the submenu. You can enter the display brightness of the backlight in percentage (%) from 0 (dimmest) to 100 (brightest) You can enter the sound level in percentage (%) from... -
Page 7: Factory Reset
Factory reset If you forget a system password you have set, you must reset the system to regain access to the player. System reset will re-initialize the system, clear passwords, and return settings to their default values. Perform the following: Connect USB keyboard Reboot the player and look for the reset instructions on the top left (circled area in red). -
Page 8: Content Management
Content Management Please see the software set up instructions for your management system... -
Page 9: Working With Smil
Working with SMIL The XDS-104 uses open communications protocols for highly flexible content presentation and playback control. SMIL- compliance means predictable results across multiple devices, and SMIL’s non-proprietary nature means that your investments are never obsolete. Introduction Using SMIL (pronounced “smile”), the language created by W3C for multimedia communications, the media player understands the language “spoken”... -
Page 10: Technical Data
Technical Data Specifications XDS-104 Display and Sound 10.1” TFT LCD wide aspect ratio 300 nits maximum brightness 800x480 native resolution Built-in stereo speakers 2 Wx2 Video format support MPEG-1 or MPEG-4 ASP (up to 2 Mbps bitrate) Recommended 16:9 video resolution: 640x360 or 720x400... -
Page 11: Appendix: Faq
How do I manage the playback of contents? Playback on a schedule is one of the main functions of the XDS-104. For most users, it can be managed via the easy to use Adfotain Manager Express software. Scala users may obtain a player license from Scala to manage the media player directly from Scala Content Manager. - Page 12 usually based on user’s knowledge and experience with the specific media player. First check the on screen message and stats reports. Bad play list and timing issues are two major causes of playback problems. To determine if the problem is caused by a bad play list, just delete the play list and restart player. The player should loop through all media files, indicating a fault with the play list.
- Page 13 IAdea reseller. Subject to the conditions of this warranty, IAdea will perform necessary service on the product without charge for parts or labor if, in the opinion of IAdea, the product is found to be faulty within the warranty period. IAdea’s sole warranty and obligation will be to repair or replace (at it sole discretion) such products that require warranty during the applicable warranty period in accordance with these conditions.
