Zephyr Tornado II AK8200AS Use, Care And Installation Manual page 13

MULTIPLE BLOWERS ARE COMPATIBLE WITH AK8300ASX ONLY.
AK8200AS INCLUDES A 1000 CFM DUAL BLOWER ONLY.
FOR EXTERNAL BLOWER INSTRUCTIONS TURN TO PAGE 12.

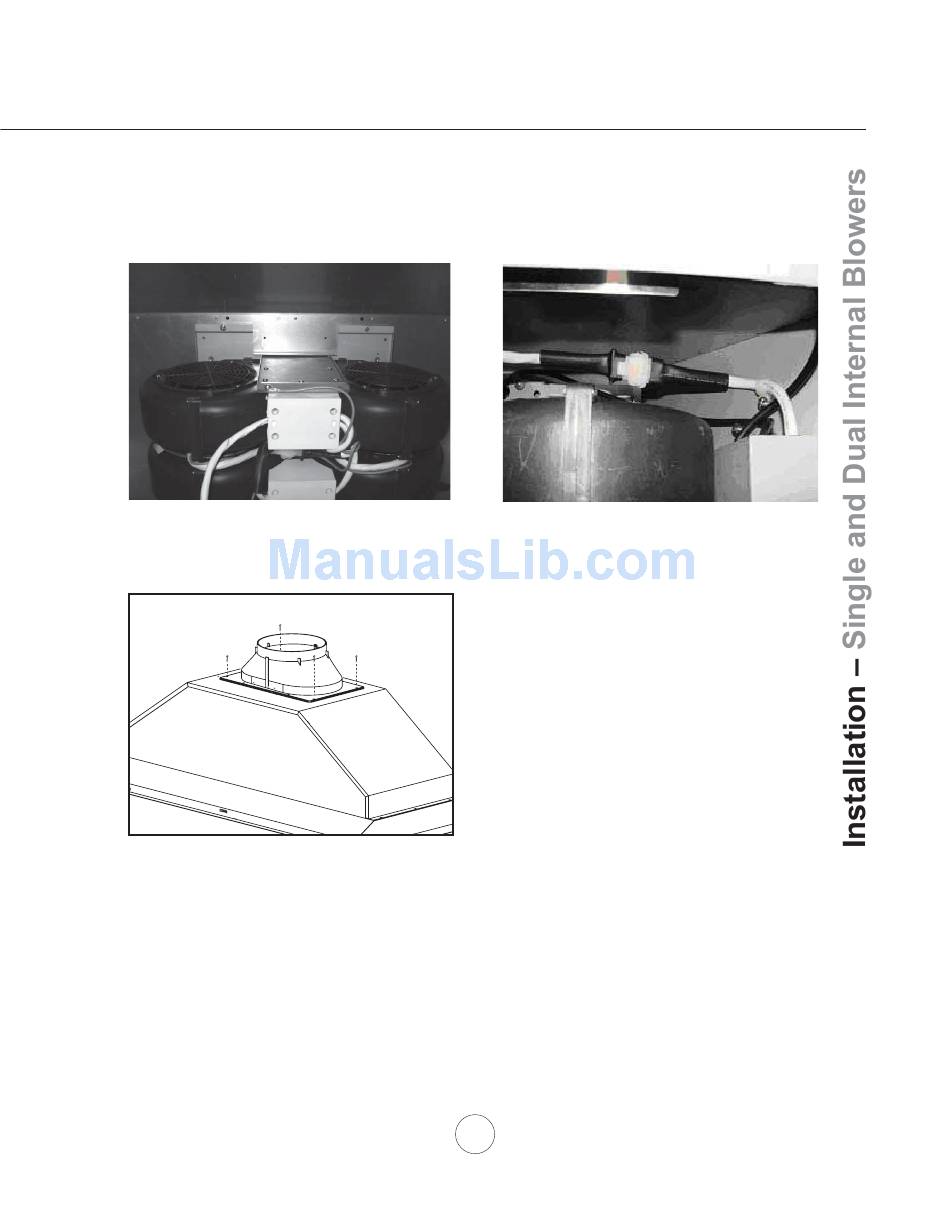

1. Position blower plate over bracket on inside
back of hood and pivot up. Secure plate to hood
with (2) 10x3/16" screws. (blower pictured is a
PBI-1100A)
3. Single Blower – Connect 6" round duct work to
blower collar.
Dual Blower – Place 8" round adapter on top of
power pack and secure with (4) M4x8 screws.
Connect 8" round duct work to 8" round adapter.
2. Connect 6 pin male connector from blower
wiring to 6 pin female connector in the power
pack. (plug is located inside the power pack
protruding from the white control board box).
