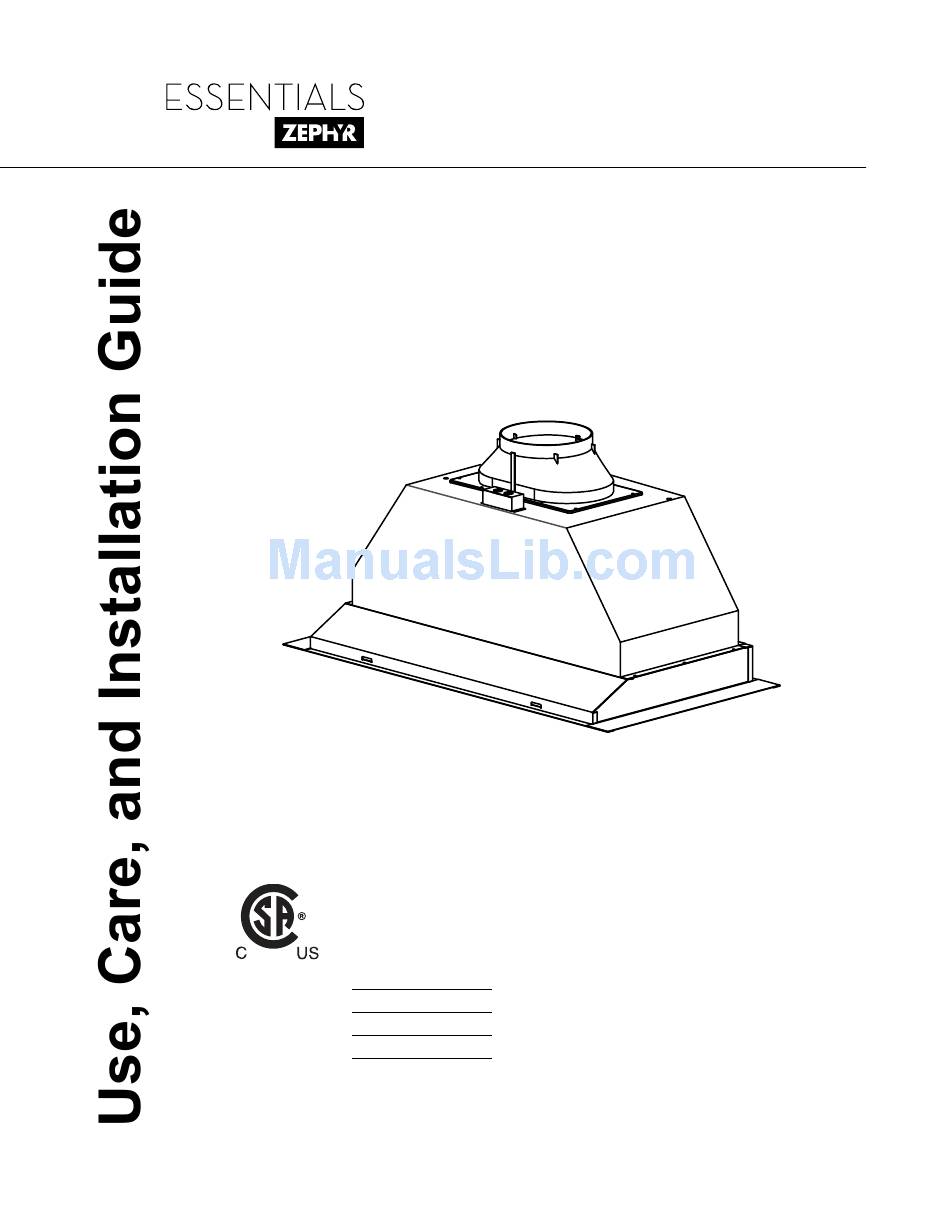

- Page 1 Willow AK8800AS AK8800AG Intended for outdoor covered pAtIo or lAnAI AreA. Model number: Serial Number: Date of Purchase: Sales Dealer: APR14.0201 © 2014 Zephyr Corporation READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION ducting calculation Sheet ........Mounting Height & clearance ........ ducting options ............Specifications ............... electrical ................. Installing the power pack ........CONTROLS rocker Switch controls ..........MAINTENANCE cleaning and Installing filters ....... lights ................
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING to reduce tHe rISK of fIre or electrIc SHocK, do not uSe tHIS fAn WItH AnY SolId-StAte control devIce. WARNING to reduce tHe rISK of fIre electrIc SHocK, or InJurY to perSonS, oBServe tHe folloWInG: a.
- Page 5 WARNING to reduce tHe rISK of fIre, uSe onlY MetAl ductWorK. CAUTION To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. the manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product.
- Page 6 www.zephyronline.com MODELS: AK8800AS And AK8800AG PARTS SUPPLIED 1 - 316S High quality stainless steel Power Pack (AK8800AS) 1 - Gray powder coated Power Pack (AK8800AG) 2 - Baffle filters 2 - Halogen light bulbs (pre-installed) 1 - Dual internal blower (pre-installed) 1 - 8” round adapter 1 - Hardware package HARDWARE PACKAGE CONTENTS Suction Cup (1) M4 x 1” (6) M4 x 8 (4) Wire Caps (3) PARTS NOT SUPPLIED - ducting, conduit and all installation tools - cable connector (if required by local codes) - optional stainless steel hood liner (AK08xxAS)
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 30”. Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.
- Page 9 WARNING FIRE HAzARD never exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape. Some Ducting Options side wall cap side wall cap w/ gravity damper w/ gravity damper Soffit or crawl space...
- Page 10 www.zephyronline.com 316 High class Stainless Steel Body for AK8800AS ” 7/16 ” elec ” ” 11/16 ” 7/16 ” 13/16” elec. ” 13/16 ” ” 5/16 ” ” 11/16 ” 13/16 side ” ” ” 5” ” ” 7/16 ” ”...
-
Page 11: Electrical Warning
ELECTRICAL WARNING All Electrical work must be performed by qualified electrician or person with similar technical know how and background. for personal safety, remove house fuse or open circuit breaker before beginning installation. do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. - Page 12 www.zephyronline.com CAUTION: At least two installers are required due to the weight and size of the hood. Remove support screw from top of Power Pack AK8800Ax before installing into cabinet. FIG 2b 1/16” 1. Place 8” round adapter on top of power pack and secure with (4) M4x8 screws. (FIG 3) 2. Install optional AK088xAS Stainless Steel liner under custom hood opening.
-
Page 13: Light On/Off
Lights On/Off Adjust Blower Level (2 Speeds) Light On/Off By pressing , the light is switched On and Off. is on, is off. Blower Speed Selection The 2 speed levels are selected by switching to for level one and for level two. Switching the rocker switch to middle will turn off the blower. -
Page 14: Surface Maintenance
www.zephyronline.com CAUTION: If this hood is installed in a salt water area (example: coast), rinse all surfaces once a week with clear water (even if the hood is not used), and wipe dry completely. SURFACE MAINTENANCE: clean periodically with hot soapy water and clean cotton cloth. do not use corrosive or abrasive detergent, or steel wool/ scoring pads which will scratch and damage surface. -
Page 15: Replacing Light Bulbs
Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out. If bulbs are difficult to turn due to prolonged use, firmly attach a glass suction cup approximately the diameter of the bulb or use a rubber/latex glove and turn counter clockwise. Replacement bulbs are available at specialty lighting stores. Purchase type MR16 (GU-10) 35W halogen. for Zephyr part numbers please turn to page 15 of the manual. Bottom view... - Page 16 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR WILLOW Issue Cause What to do After installation, 1. the power source is not turned on. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is on. work. 2. the power line and the cable locking connector 2.
- Page 17 DESCRIPTION PART # Replacement Parts Light Bulb MR16 (GU10) 35W (each) Z0B-0023 Baffle Filter (each) 50210010 Optional Accessories liner, 36” AK0886AS liner, 42” AK0882AS liner, 48” AK0888AS liner, 54” AK0884AS liner, 60” AK0880AS to order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
-
Page 18: Limited Warranty
Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows:...
