  • Page 1 U s e r ’s m a n u a l NDR-BA6104 NDR-BA6208 NDR-BA6416...

  • Page 2: Important Safeguards And Warnings

    NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 IMPORTANT SAFEGUARDS AND WARNINGS EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of following directives and national regulations implementing the directives:  Electromagnetic compatibility EMC 2004/108/EC. ...
  • Page 3 4. The device has to be protected against humidity and dust. In case the recorder had a contact with water react immediately: switch off the power supply and contact the authorised Novus service. If the device gets dirty it might get damaged or electrocute someone.

  • Page 4: Foreword Information

    Recording resolution: 2048x1536, 1920x 1080, 1280 x 720, 960x576, 720x576, 720 x 288, 360 x288  NDR-BA6104 - 1 video and audio channel for NOVUS IP 3000 series camera with recording speed up to 12 fps for 1280x720 resolution. Supported resolution up to 1920x1080* ...
  • Page 5 2 kg (without HDD) 4 kg (without HDD) *DVR is compatible with NOVUS IP 3000 series cameras. ** During IP channel playback the number fps per IP channels fps is reduced by half All rights reserved © AAT Holding S.A.
  • Page 6 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 FOREWORD INFORMATION 1.3. Package contents Unpack the device carefully. After unpacking, please ensure that package contains the following items: NDR-BAxxxx DVR IR remote control (NDR-BA6208, NDR-BA6416 ) Power supply Power cord 12VDC Screws Mouse HDD SATA cables Short user’s...

  • Page 7: Starting The Device

    NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE 2. STARTING THE DEVICE 2.1. Electrical connection and other rear panel elements of NDR-BA6104 DVR 9 10 11 1.AUDIO IN: Audio (mono) inputs for connecting microphones with pre-amplifiers 2.ALARM IN: Alarm inputs, which may be set either as normally open (N.O.) or normally closed (N.C.).

  • Page 8: Alarm Out

    NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE 2.2. Electrical connection and other rear panel elements of NDR-BA6208 DVR. 13 14 15 1 2 3 4 5 9 10 11 1. AUDIO IN: Audio (mono) inputs for connecting microphones with pre-amplifiers 2.
  • Page 9 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE 2.3. Electrical connection and other rear panel elements of NDR-BA6416 DVR. 10 11 12 1. POWER SWITCH: DVR power switch. 2. ALARM OUT: Alarm relay output (NO, COM), max. load capacity of the outputs is 0,5A/125VAC and 1A/30VDC.
  • Page 10 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE 2.4. Network wiring Although connection DVR to one IP camera with straight Ethernet cable is possible we strongly advise to use additional network switch. By using Ethernet cables connect the cameras and NVR to the switch, like on image below.
  • Page 11 User’s manual ver.1.2 STARTING THE DEVICE 2.5. HDD mounting NDR-BA6104 support up to 1 internal SATA HDD. NDR-BA6416 DVR and NDR-BA6208 supports up to 2 internal SATA HDDs. WARNING! In order to find information regarding the compatible models of HDDs and their maximum capacities, please contact Novus distributor or check the information presented at www.novuscctv.com.
  • Page 12 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE After removing top cover of the DVR, please mount the HDD to the DVR bottom using included screws (4 pieces for each HDD), and connect power and signal cables. NDR-BA6104 NDR-BA6416 and NDR-BA6208 : After connecting an HDD(s), please put the top cover onto the DVR and turn the device on in order to check the operation of particular components and to format the HDDs.
  • Page 13 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 STARTING THE DEVICE Analog cameras recording capacity table The size of the IP camera recording depends on the size of the bitrate set in the camera. The table below shows an example of bitrate for IP cameras “Total Recording capacity”...

  • Page 14: Recorder's Operation

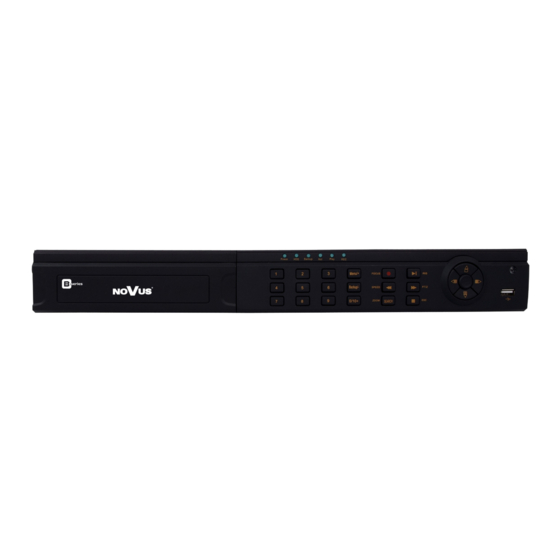

    NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S OPERATION 3. RECORDER’S OPERATION 3.1. Front panel description NDR-BA6104 : NDR-BA6416 and NDR-BA6208 : 1. LED: LEDs indicating DVR’s status: - Power - power supply indicator - Net - network operation - HDD - HDD operation indicator...
  • Page 15 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S OPERATION 8. PLAY / PAUSE pressing the PLAY during “live” mode enters playback mode. Subsequent pressing pauses the playback. In PTZ control mode button is used for IRIS adjustment. 9. FF Consecutive presses in playback mode switch playback speed between FFx1, FFx2, FFx4, FFx8, FFx16, FFx1/4, FFx1/2.
  • Page 16 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S OPERATION Note: If remote controller is not used for a some time, its ID will be automatically changed to 0. Description of IR remote controller function: Turns the DVR off Enable manual records 0-9, -/--...
  • Page 17 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S OPERATION NV-RCDVRB-II remote controller bought separately accessory NDR-BA6104 DVR Remote controller ID is fixed to 0. Description of IR remote controller function: Enable manual records SEARCH Starts search MENU DVR menu EXIT Exit current interface...

  • Page 18: Recorder's Menu

    NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU 4. RECORDER’S MENU DVR features multi-layered, on-screen displayed menu used for setting the device up. Multi-lingual OSD is displayed using one of the following languages: English, Polish, Spanish, Slovak, Czech, Turkish, Dutch, Russian, Italian, French, Greek and other.
  • Page 19 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU This window allows user to configure network settings such as; HTTP Port, Server Port, IP Address, Subnet Mask, Gateway, Preferred and Alternate DDNS Server. Alternatively, select the Obtain an IP address automatically to get address from DHCP Server.
  • Page 20 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU For proper recorder operation, please format the installed HDD using this window. Additional information like HDD Size, Free space etc. are also available here. When HDD formatting is complete, click the Finish button to end setup wizard and open the LOGIN window.
  • Page 21 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU To disable LOGIN window display during next start-up, please go to the MAIN MENU / BASIC / SYSTEM and check off the Password Check. To prevent unauthorized access, it is recommended to log out when you leave the screen. In the monitoring screen, click MENU in the bottom left corner and select LOG OFF.
  • Page 22 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU 4.3 Configuring IP camera channel It’s strongly advisable to configure IP camera with PC computer and check DVR network configuration before connecting camera to DVR. To configure IP address for DVR select MAIN MENU / SETUP / NETWORK / NETWORK If you are using DHCP sever for IP address management select OBTAIN IP ADDRESS AUTMATICALY check box.
  • Page 23 SETUP button. Fill in User Name and Password fields with valid values ( default user name / password for NOVUS IP cameras is root / pass ) and press OK button.
  • Page 24 RECORDER’S MENU 4.4. Setting English language. The procedure presented below shows how to go back to the English language in the NOVUS DVRs menu in case of selecting any other language by mistake. 1. To open main menu press the MENU button on the DVR’s front panel, and select the first position.
  • Page 25 NDR-BA6104,NDR-BA6208,NDR-BA6416 User’s manual ver.1.2 RECORDER’S MENU 4. Choose the English language in the 8th menu position (third from the bottom) . 5. Next, click the button in the middle, which loads a new interface language. All rights reserved © AAT Holding S.A.
  • Page 26 2015-05-29 MB, MK AAT Holding S.A., 431 Pulawska St., 02-801 Warsaw, Poland tel.: +4822 546 07 00, fax: +4822 546 07 59 www.novuscctv.com...
