Meter Description

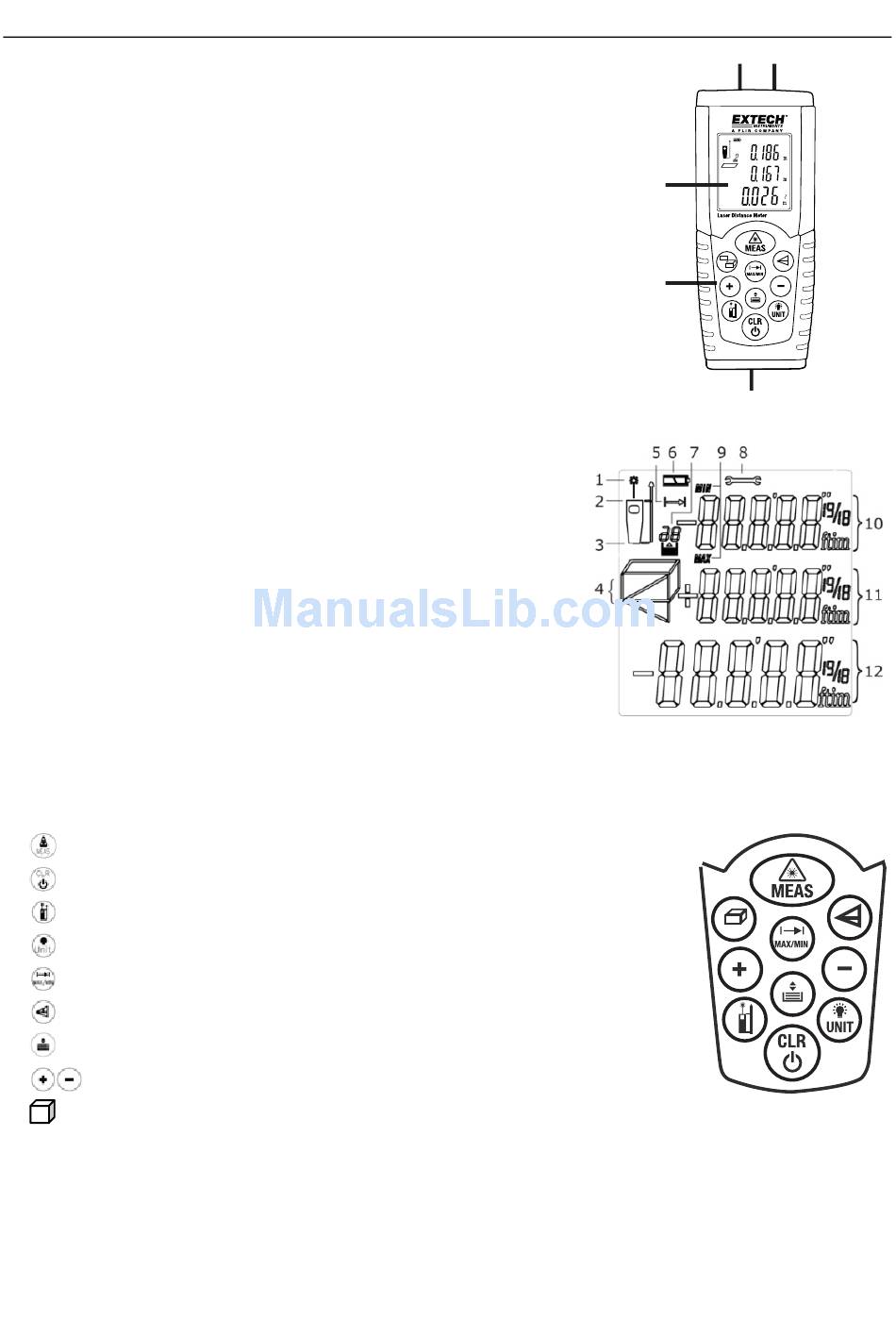

Front Panel
1. Laser Pointer
2. Laser Test Beam
3. LCD display area
4. Keypad (described below)
5. Battery compartment on rear of instrument
Display
1. Laser Status icon appears when laser is active
2. Reference level (Top)
3. Reference Level (Bottom)
4. Area, Volume, and Indirect Measurement icons
5. Single Distance Measurement mode
6. Battery status icon
7. Reading Memory Location Number
8. Error icon
9. Continuous MIN-MAX measurement mode
10. Display Line 1
11. Display Line 2
12. Display Line 3 (Summary Display Line)
Keypad
Power ON / Measurement Button
CLEAR / Power OFF Button
Measurement Reference Button
Backlight / Unit Button
MAX-MIN Continuous Measurement Button
Indirect Measurement Button
Memory Button
Add/Subtract Buttons
Area-Volume Button
3
2 1
3
DT200
4
5
