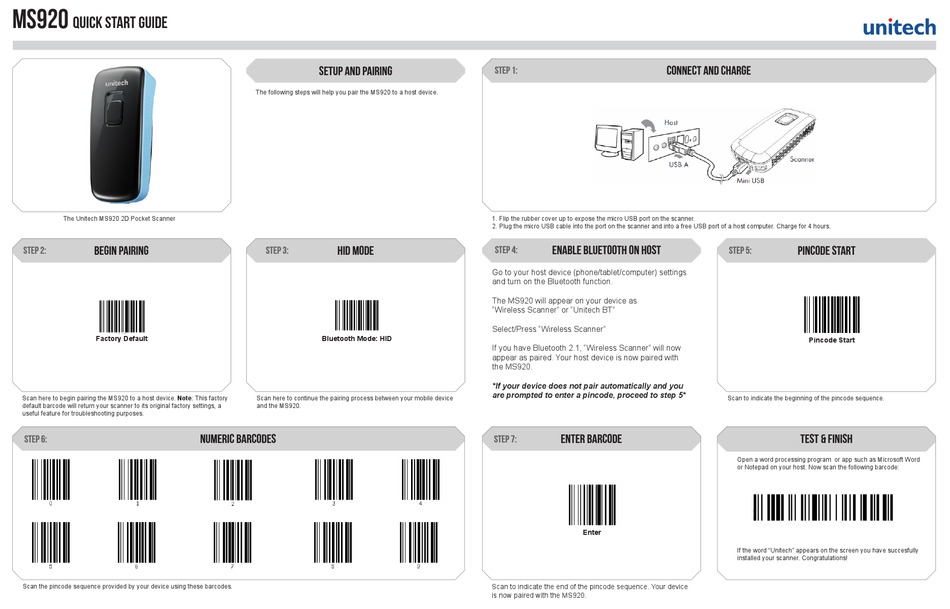

Unitech MS920 Quick Start Manual

MS920
Quick Start Guide

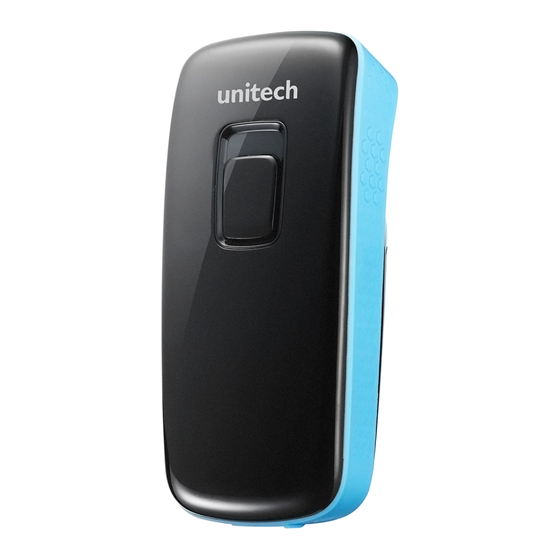

The Unitech MS920 2D Pocket Scanner
Begin pairing
Step 2:
Factory Default
Scan here to begin pairing the MS920 to a host device. Note: This factory
default barcode will return your scanner to its original factory settings, a
useful feature for troubleshooting purposes.
Step 6:
Scan the pincode sequence provided by your device using these barcodes.
SETUP AND Pairing
The following steps will help you pair the MS920 to a host device.
HID Mode
Step 3:
Bluetooth Mode: HID
Scan here to continue the pairing process between your mobile device
and the MS920.
Numeric Barcodes
connect and Charge
Step 1:
1. Flip the rubber cover up to expose the micro USB port on the scanner.
2. Plug the micro USB cable into the port on the scanner and into a free USB port of a host computer. Charge for 4 hours.
Enable Bluetooth on host
Step 4:
Go to your host device (phone/tablet/computer) settings
and turn on the Bluetooth function.
The MS920 will appear on your device as
"Wireless Scanner" or "Unitech BT"
Select/Press "Wireless Scanner"
If you have Bluetooth 2.1, "Wireless Scanner" will now
appear as paired. Your host device is now paired with
the MS920.
*If your device does not pair automatically and you
are prompted to enter a pincode, proceed to step 5*
Enter Barcode
Step 8:
Step 7:
Enter
Scan to indicate the end of the pincode sequence. Your device
is now paired with the MS920.
Pincode Start
Step 5:
Pincode Start
Scan to indicate the beginning of the pincode sequence.
Test & Finish
Open a word processing program or app such as Microsoft Word
or Notepad on your host. Now scan the following barcode:
If the word "Unitech" appears on the screen you have succesfully
installed your scanner. Congratulations!
