- Page 1 - MS925HC - User's Manual Version 1.2 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 2 Renew the product name from MS925 to MS925HC 20200619 Add “SCANLINK ” © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 3: Preface
© 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 4 RF exposure guidelines when used with an accessory that contains no metal © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 5 Canada. European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive, the EMC 2014/30/EU directive and the Low Voltage 2014/35/EU directive.
- Page 6 Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the EU directive 2002/96/EC and update 2003/108/EC concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from unitech directly or via unitech’s resellers, you shall either...
- Page 7 第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備 之干擾。 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 8 Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
- Page 9 It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by unitech’s warranty policy...
- Page 10 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 11 Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.
- Page 12 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 13 Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...
- Page 14 The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
-
Page 15: Table Of Contents
Chapter 3 – Symbology ................27 xiii © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 16 Appendix B – Default Table ..............93 B-1 Default Table 1..................93 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 17 B-3 Default Table 3..................95 B-4 Default Table 4..................97 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 18: Regulatory Compliance Statements

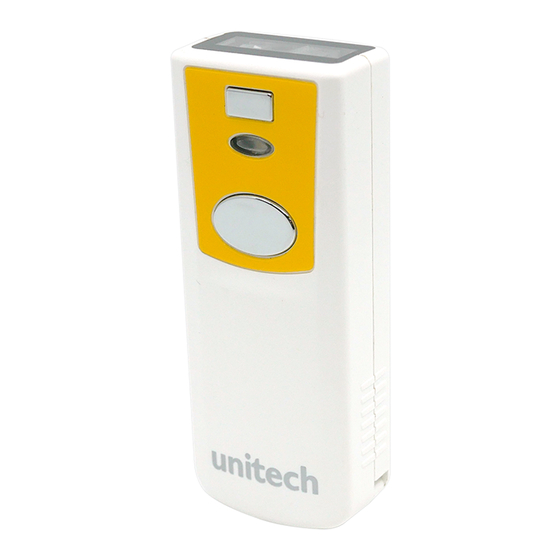

MS925HC User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the MS925HC gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents: MS925HC 2D Mini Wireless Barcode Scanner ... -
Page 19: Scanner Detail
MS925HC User’s Manual 1.2 Scanner Detail © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 20: Specifications
All major 1D & 2D barcodes Symbologies © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 21: Getting Started
2. Insert the micro USB connector into the port on the scanner and USB A connector into a USB port on the host PC. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd... -
Page 22: Beeper / Led Indicator
(scan [ABORT] to abort and start over) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 23 Low power Flashing Red Charging Solid Red © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 24: Chapter 2 - Installation
Emulates a USB keyboard that transmits each barcode data to the host after decode. USB HID © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 25 Emulates a USB mass storage device that saves each barcode data during off-line data collection. Memory Mode © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 26: Bluetooth ® Profile
6. The scanner will beep twice to verify the connection. BT HID © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 27 7. The scanner will beep twice to verify the connection. BT SPP © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 28: Pincode Setup
Bluetooth application. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 29: Getting Connected, Touch Keyboard
3. Scan below configuration barcode; the scanner will emit several beeps. BT HID © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 30 To resolve this issue, please simply press the function button to toggle iOS Touch Keyboard. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 31 4. Turn off “Physical keyboard”, or Turn on “On-screen keyboard” and the Touch Keyboard will function properly again. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 32: Scanlink
*Note: Please check the your host device’s compati- bility before using ScanLink function via either of the profiles. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 33: Power Off Timeout
Disable Time out (Scanner always On) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 34: Set Bluetooth ® Device Id
Step 2 : Set Wireless ID © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 35 3. To reset the Bluetooth device name to default (”Wireless Scanner”), please simply do Step1 & Step 5, skipping Step 2 to Step 4. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd...
-
Page 36: Set Spp Pincode
Up to 8 numbers can be set as SPP Pincode. Numeric Barcodes © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 37: Batch Mode, Binary Check Character
Batch Mode will not function when Memory Mode is enabled, or no connection is made beforehand. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 38 2 bytes of characters. As a result, the data will be: TEST + <Enter> + F + 1 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd...
-
Page 39: Memory Mode, Delete Record
To delete ALL stored data, simply delete the file “BARCODE.txt” in the removable storage device “MiniScan” until you hear two beeps. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 40: Data Format, Date & Time Setup
2. Scan [ ; ] from the full ASCII table on Appendix 3. Scan [Field Separator] © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 41 3 hours before use. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 42: Date Format, Time Format
2. Scan [1], [2] on Appendix 3. Scan [Date Format] © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 43 2. Scan [0], [2] on Appendix 3. Scan [TimeFormat] © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 44: Chapter 3 - Symbology
Enable All 2D Code Disable All 2D Code © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 45 CODE 93* EAN/UCC/GS1-128* EAN/UCC/GS1-128* IATA* IATA © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 46 GS1 Databar EXPANDED STACKED ENABLE DISABLE © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 47 MICRO QR CODE* MICRO QR CODE AZTEC AZTEC* © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 48: Msi Code, Uk Plessey Code, Telepen
CDV & SEND CD CDV & NOT SEND CD* © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 49 DISABLE TELEPEN TELEPEN ASCII TELEPEN NUMBER © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 50: Code 93, Telepen , Iata
MAX LENGTH (48) MAX LENGTH (48) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 51: Interleaved 2 Of 5, Code 11
MAX LENGTH (32) MAX LENGTH (48) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 52: Industrial 2 Of 5, Matrix 2 Of 5
MAX LENGTH (48) MAX LENGTH (48) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 53: Codabar
Not send START / STOP MAX Length (48) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 54: Abc-Codabar Cx-Codabar
Insert Data On Insert Data Off* © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 55: Codabar Coupling, Adjacent Required
Insert Data Off © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 56 ABC-Codabar, CX-Codabar will be considered coupling formats. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 57: Standard & Full Ascii 39, Code 32
Start / Stop –Send Start / Stop –Not Send* © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 58 ASCII Code 39 is enabled, Standard Code 39 will be automatically disabled. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 59: Upc-E
+5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 60: Upc-E System Number, Upc-E Expand To Upc-A
© 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 61: Upc-A, Upc-A Expand To Ean-13
+5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 62: Ean-8
+5 ON or +2 ON so the scanner will output a 5-digit or 2-digit addendum. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 63: Ean-13, Isbn, Issn, Ismn
Addenda Required On* Addenda Required Off © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 64 ISSN or ISBN. ISMN ISMN OFF* ISMN ON © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 65: Ean/Ucc/Gs1-128, Code 128
2. Scan one ASCII Code 3. Scan DEFINE FNC1. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 66: Gs1 Databar, Limited, Expanded
GS1 DataBar PREFIX NOT SEND* GS1 DataBar STACKED DISABLE © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 67 GS1 DataBar LIMITED CHECK DIGIT NOT SEND* GS1 DataBar LIMITED PREFIX NOT SEND* © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 68 GS1 DataBar EXPANDED STACKED DISABLE GS1 DataBar EXPANDED MAX LENGTH (74) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 69: Pdf 417, Data Matrix, Aztec
MIN LENGTH (0001) MAX LENGTH (3116) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 70 MIN LENGTH (0001) MAX LENGTH (3832) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 71: Qr Code, Micro Qr Code
MIN LENGTH (0001) MAX LENGTH (0035) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 72: Chapter 4 - Command Settings
Scanning SETUP CODE OFF will turn the scanner into unprogrammable state and the scanner will not react to any configuration barcode! © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 73: Reading Mode
Flash Mode The trigger does not function in Flash Mode. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 74 Factory Scanability Test Use Only Test Mode © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 75: Beep Tone, Beep Mode, Terminator
Beep Low Beep Medium * Beep off © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 76 Normal * Mute Warning Beep Only © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 77 [Barcode Data] [Terminator] © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 78: Send Data Length, Preamble & Postamble
Clear Pre / Postamble Preamble Postamble © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 79 3. Default value for both: None. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 80: Advanced Reading Mode Settings
Sec, 255=125 Sec, Default = 124 (60 Sec)) 3. Scan LED AUTO-OFF TIMEOUT © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 81 Sec...254=124.5 Sec, 255=125 Sec, Default = 006 (1.0 Sec)) 3. Scan IDENTICAL READ TIMEOUT © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 82: Accuracy Adjustment
2. If you make a mistake, forget a step, etc., and want to abort the multi- step configuration, scan RESET/ABORT and start over again. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd... -
Page 83: Code Id, Inverse Barcode
2. The code ID is located at the position before the barcode data and after the preamble. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 84 2.Code ID: enable AIM ID, 3.Bar code symbologies : EAN 13+5 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 85: Symbologies Code Identifier
MS925HC User’s Manual 4.8 Symbologies Code Identifier © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 86: Set Code Id
Telepen Set ID Code 11 Set ID © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 87 2. If you make a mistake, forget a step, etc., and want to abort the multi- step configuration, scan RESET/ABORT and start over again. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd...
- Page 88 RESET/ABORT and start over again. Reset / Abort © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 89 RESET/ABORT and start over again. Reset / Abort © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 90 ASCII numeric table. 3. Scan [Set Intercharacter Delay]. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 91 * This conversion is not supported when Keyboard Layout is set to Alt Code. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 92: Keyboard Layout
MS925HC User’s Manual 4.10 Keyboard Layout © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 93: Caplock Mode,Numeric Key, Ht/Cr/Esc Conversion
2. If ABCD/ ABCD, abcd/ abcd, ABCD/T*E, abcd/tn*e are on, they work independently according to their rules. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 94 2. When enabled, HT [$I], CR [$M] and ESC [%A] is transmitted as <TAB>, <ENTER> and <ESCAPE> on keyboard respectively. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 95: Appendix A - Full Ascii Table & Function Key Table
2. If you make a mistake, forget a step, etc., and want to abort the multi- step configuration, scan RESET/ABORT and start over again. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd... - Page 96 MS925HC User’s Manual FULL ASCII ( Code 39 ) Numeric Table © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 97: Full Ascii Table (Code 39)
A-2 FULL ASCII Table (Code 39) ￭ FULL ASCII Table ( CODE 39 ) Control Codes © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 98 MS925HC User’s Manual © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 99 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Symbols © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 100 MS925HC User’s Manual © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 101 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Upper Case Alphabets © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 102 MS925HC User’s Manual © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 103 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Lower Case Alphabets © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 104 MS925HC User’s Manual © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 105 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Numbers © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 106: Function Key Table (Code39)
MS925HC User’s Manual A-3 Function Key Table (Code39) © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 107 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Navigation Keys © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 108 MS925HC User’s Manual ￭ FULL ASCII Table ( CODE 39 ) Modifier Keys © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 109 *2: When “Shift(Left)Make” is programmed, please scan “Shift(Left)Break” to resume barcode setting. *3: When “Ctrl(Left)Make” is programmed, please scan “Ctrl(Left)Break” to resume barcode setting. © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd...
-
Page 110: Appendix B - Default Table
Appendix B – Default Table B-1 Default Table 1 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 111 MS925HC User’s Manual B-2 Default Table 2 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 112 MS925HC User’s Manual B-3 Default Table 3 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 113 MS925HC User’s Manual © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 114 MS925HC User’s Manual B-4 Default Table 4 © 2019 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co.,Ltd All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
