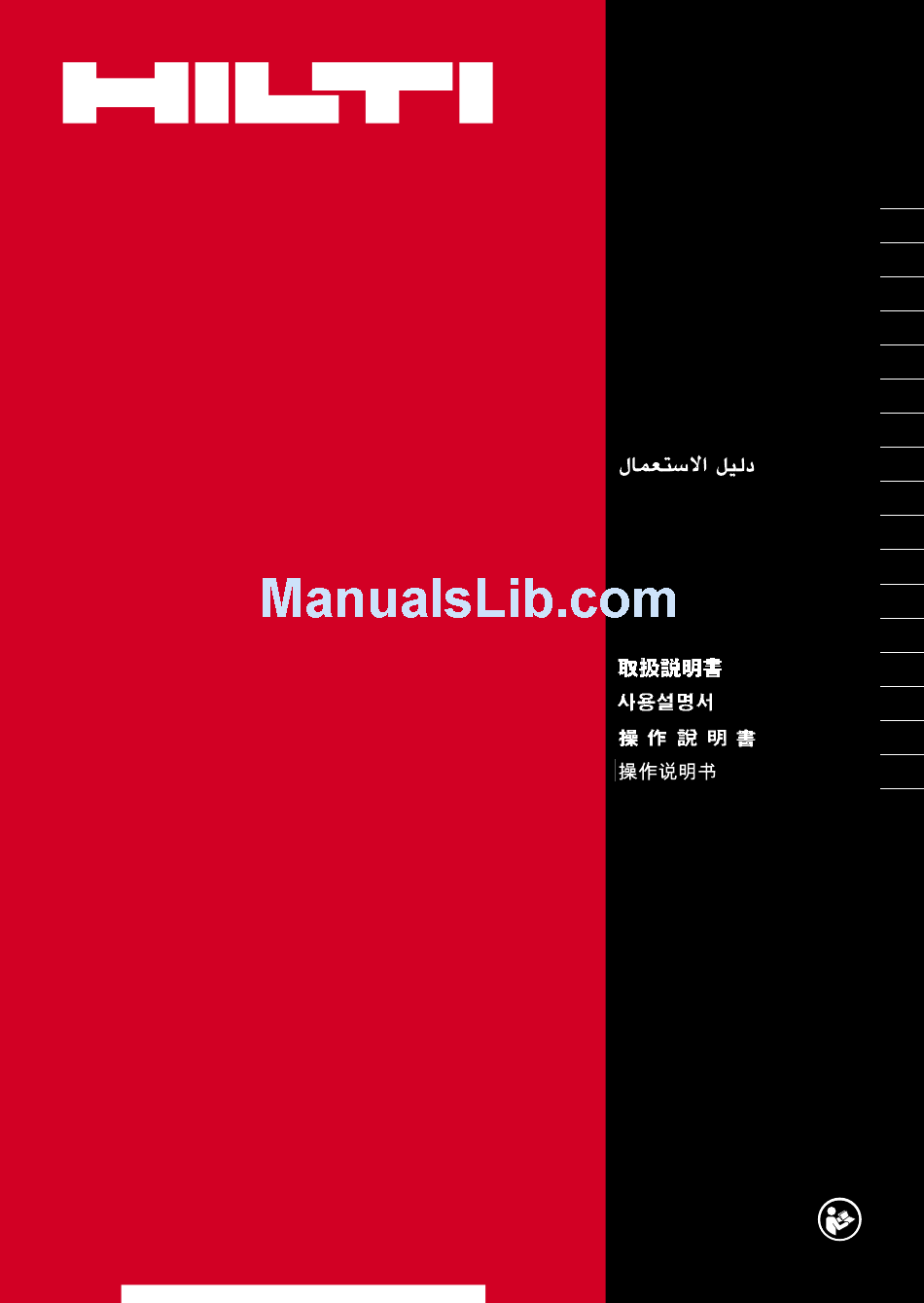

Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00
SID 2-A
Operating instructions
Mode d'emploi
Brugsanvisning
Bruksanvisning
Bruksanvisning
Käyttöohje
Инструкция по зксплуатации
Kulllanma Talimatı
Lietošanas pamācība
Instrukcija
Kasutusjuhend
IНСТРУКЦIЯ З ЕКСПЛУАТАЦIЇ
Пайдалану бойынша басшылы
en
fr
da
sv
no
fi
ru
tr
ar
lv
lt
et
uk
қ
kk
ja
ko
zh
cn

Advertisement

Table of Contents
loading

Related Manuals for Hilti SID 2-A

Summary of Contents for Hilti SID 2-A

  • Page 1 SID 2-A Operating instructions Mode d’emploi Brugsanvisning Bruksanvisning Bruksanvisning Käyttöohje Инструкция по зксплуатации Kulllanma Talimatı Lietošanas pamācība Instrukcija Kasutusjuhend IНСТРУКЦIЯ З ЕКСПЛУАТАЦIЇ қ Пайдалану бойынша басшылы Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...
  • Page 2 Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...
  • Page 3 Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...
  • Page 4 Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...

  • Page 5: Table Of Contents

    ORIGINAL OPERATING INSTRUCTIONS SID 2-A cordless impact screw- driver It is essential that the operating instructions are read before the power tool is operated for the first time. Always keep these operating instructions together with the power tool. Ensure that the operating instructions are with the power tool when it is given to other persons.

  • Page 6: General Information

    Release button & Control switch Hex. socket 1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to serious bodily injury or fatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality.

  • Page 7: Description

    2 Description 2.1 Use of the product as directed The SID 2-A is a hand-held cordless impact screwdriver. It is designed for driving and removing screws in wood, metal, masonry and concrete and for tightening and releasing nuts and bolts.
  • Page 8 2.2 Items supplied 1 SID 2-A cordless impact screwdriver 1 Operating instructions Accessories can be found at your Hilti Center or online at www.hilti.com. 2.3 Additional items required for operating the cordless impact screwdriver: B 12/2.6 Li-ion battery and C 4⁄12­50 charger.

  • Page 9: Technical Data

    3 Technical data Right of technical changes reserved. Power tool SID 2­A Rated voltage 10.8 V Weight in accordance with EPTA 1.1 kg procedure 01/2003 Rated speed under no load 0…2,500/min Impact speed Max. 3,410/min Chuck ¹/₄" hex. socket with locking sleeve NOTE The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and...

  • Page 10: Safety Instructions

    Battery B 12/2.6 Rated voltage 10.8 V Capacity 2.6 Ah Energy capacity 28.08 Wh Weight 0.24 kg Type of cell Li­ion 4 Safety instructions NOTE The safety rules in section 4.1 contain all general safety rules for power tools which, in accordance with the applicable standards, require to be listed in the operating instructions.
  • Page 11 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 12 4.1.4 Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
  • Page 13 4.1.6 Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 4.2 Additional safety rules 4.2.1 Personal safety a) Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.
  • Page 14 If the battery is too hot to touch it may be defective. Place the tool in a location where it can be kept under observation, well away from flammable materials, and allow it to cool down. Contact Hilti Service after the battery has cooled down.

  • Page 15: Before Use

    4.2.4 Electrical safety Before beginning work, check the working area (e.g. using a metal detector) to ensure that no concealed electric cables or gas and water pipes are present. External metal parts of the power tool may become live, for example, when an electric cable is damaged accidentally. This presents a serious risk of electric shock.

  • Page 16: Operation

    6 Operation 6.1 Setting forward or reverse rotation The forward / reverse switch is used to select the direction of rotation of the drive spindle. An interlock prevents switching while the motor is running. When the forward / reverse switch is in the middle position the control switch is locked.

  • Page 17: Care And Maintenance

    8 Troubleshooting If the fault you are experiencing is not listed or the recommended remedial measures do not successfully solve the problem, please return the tool to Hilti Service. Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...

  • Page 18: Disposal

    Contact Hilti Service if the prob- lem persists. The power tool or the Electrical fault. Switch the tool off im- battery gets very hot.

  • Page 19: Manufacturer's Warranty - Tools

    Batteries that have reached the end of their life must be disposed of in accordance with national regulations or returned to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled.
  • Page 20 We declare, on our sole responsibility, that this product complies with the following directives and standards: 2006/42/EC, 2004/108/EC, 2006/66/EC, 2011/65/EU, EN 60745­1, EN 60745­2­2, EN ISO 12100. Hilti Corporation, Feldkircherstrasse 100, FL­9494 Schaan Paolo Luccini Tassilo Deinzer Head of BA Quality and Process Management Executive Vice President Business Area Electric Tools &...
  • Page 21 Hilti Corporation LI-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan Pos. 8 | 20141007 Printed: 12.11.2014 | Doc-Nr: PUB / 5206134 / 000 / 00...
