2. Connect the mini RJ11 connector end of the MOD4 cable to the
rectangular socket labeled "BOARD" that is located on the right
side of the Pen Tray (see the figure below).

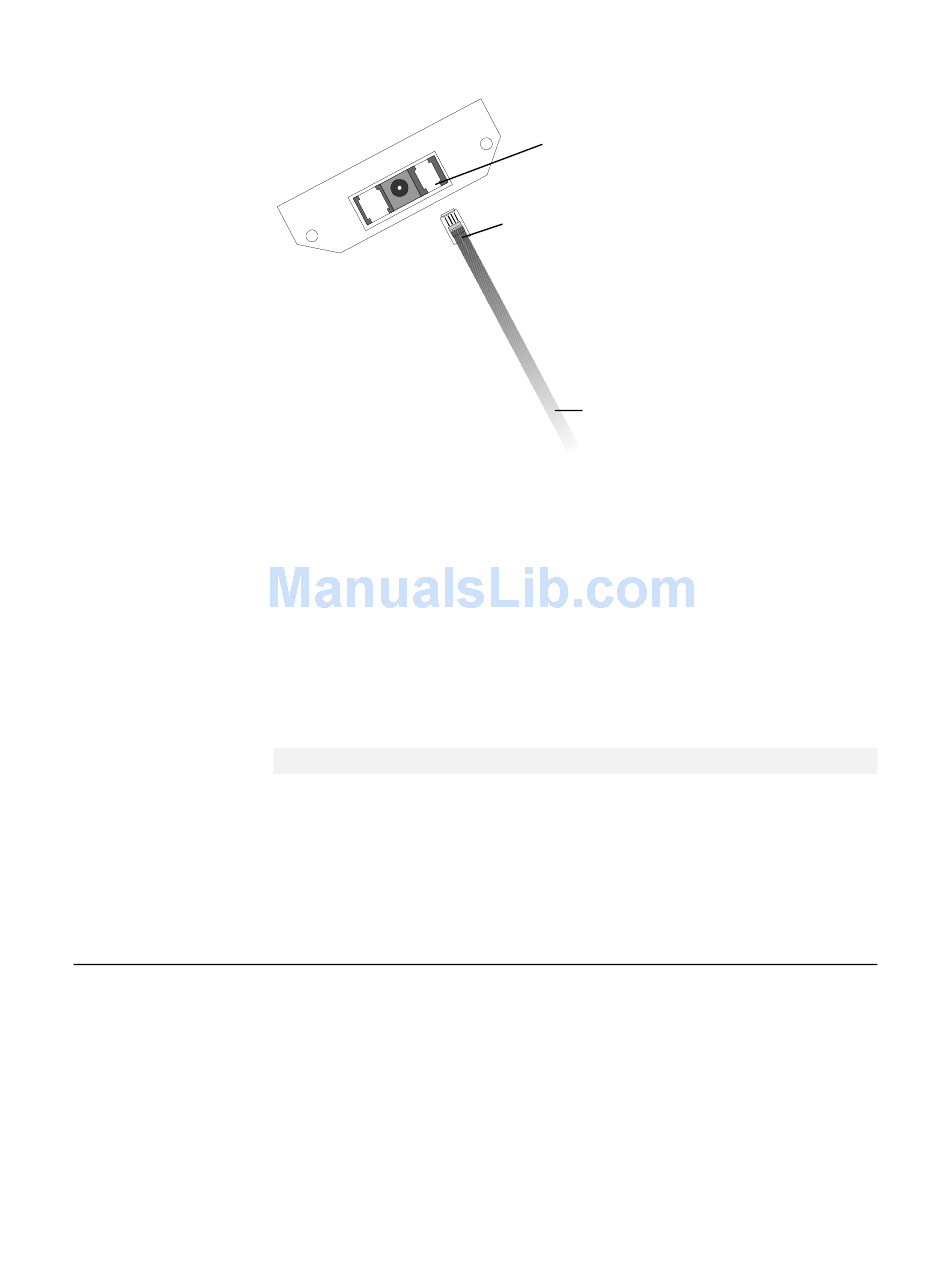

Connecting the MOD4 Cable to the Pen Tray

Finding and Marking a Suitable Location

FLOOR STAND NOTE: This procedure, as well as the wall-mounting
procedures that follow, are unnecessary if the whiteboard is mounted on
a floor stand. If you are mounting your whiteboard on a floor stand,
proceed to "Connecting the Pen Tray to the Computer and Power
Source" on page 14.
Hardware Required
•
pencil
•
measuring tape
•
drywall mounting anchors (if needed)
•
masking tape
SMART Board Installation Guide
mini RJ11 socket on end of Pen Tray
mini RJ11 connector
MOD4 cable
