3. Fasten all bracket screws – on both the Pen Tray and whiteboard
sides of the bracket – snugly. Make sure these screws are tightly
secured to maintain the rigidity of the Pen Tray during
subsequent use.
screws for
attaching bracket
to Pen Tray
Step 4: Connect the MOD4 cable to the Pen Tray
1. Route the loose end of the MOD4 cable (you previously
connected the other end to the underside of the whiteboard) over
the Pen Tray bracket on the right side of the whiteboard.
screws for attaching
bracket to
whiteboard

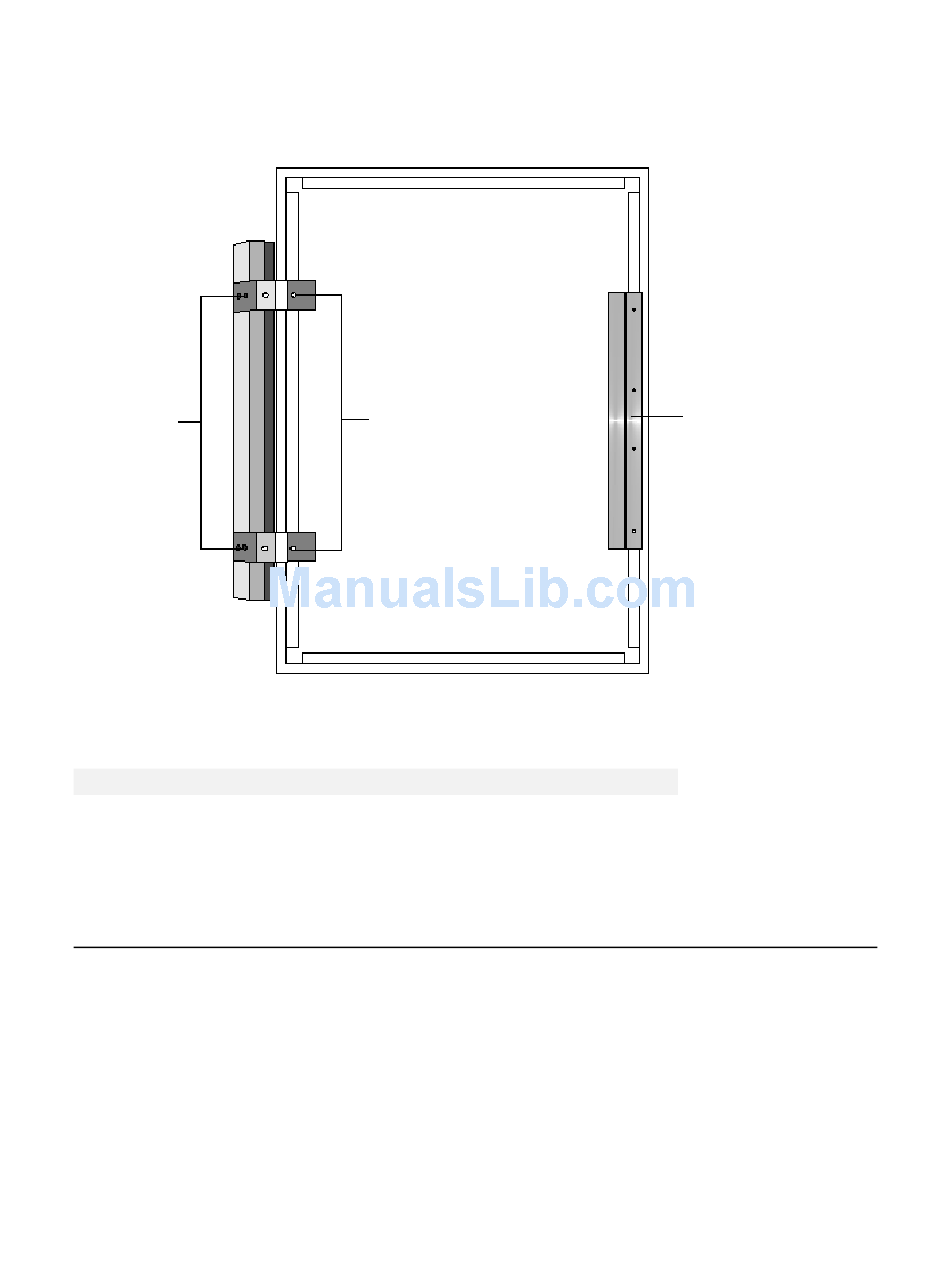

SMART Board on its Side (Rear View)

SMART Board Installation Guide
bracket for mounting
whiteboard on wall
