Page 1: User Manual
JM01 Motorcycle GPS Tracker User Manual Version: J1409-1.0 www.jimilab.com... - Page 2 Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. 1 Accessories Cable User Manual (Optional) Relay (Optional) Pictures are for indication and illustration purposes only. NOTE: After opening the packing box, please check if the accessories are complete.
-
Page 3: Interface Descriptions

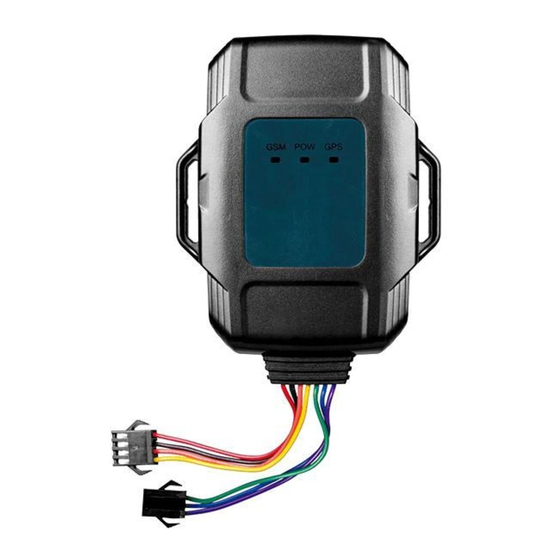

2 Interface descriptions GSM indicator SIM card slot Power indicator GPS indicator... - Page 4 3 LED status indicator and wiring 3.1 Red LED (power/working status indicator) Status Meaning Quick flashing Low battery Slow flashing Fully charged Continuously in bright Charging Continuously in dark No battery/troubleshoot 3.2 Blue LED (GPS signal indicator) Status Meaning Quick flashing Searching GPS signal Slow flashing GPS signal has successfully...
- Page 5 3.4 Armed When red/green/blue 3 LED lights are flashing twice in cycle, it means the terminal is armed. 3.5 Function of the wires Function Color Function Illustration Positive pole Black Negative pole Orange ACC on Relay Relay Yellow Relay controlled wire Green Send data / for backup Blue...
-
Page 6: Installation
4 Installation 4.1 Placement The terminal should be placed under cover. It is recommended to ask professionals to install the terminal for you. NOTE: (1) The terminal should be placed under cover; (2) protect it from water; (3) Use bandage or foam tape to keep the terminal stable; (4) Please make sure that the front side of the terminal should be facing up without any metal cover. - Page 7 2. Best place to install Under the pedal Inside the Inside the front cover taillight cover NOTE: The GPS signal will be weaken if the device is installed under the driver seat. 4.2 Wiring Black Orange Yellow Green Blue Purple...
- Page 8 86 30 87a 85 Yellow Software Power/ACC update interface Orange Fuse 2A interface Pump Black ON(ACC) Battery Ignition lock 9-28VDC...
-
Page 9: Power On/Off
(1) Use multimeter to find out the negative pole of the battery. (2) Use multimeter to find out the ACC wire. Method: Use the red pen to connect with the ACC wire while the black pen connects with the ground wire. In this condition, when the ignition lock is off, the voltage is 0;... -
Page 10: Parameters Setting
5.2 GSM&GPS signal searching After the power is on, it will start searching the GSM and GPS signal. During this period, the green indicator (GSM indicator) will be flashing while the blue indicator will be flashing quickly. When the blue indicator is flashing slowly, it means GPS has located. 5.3 Power OFF Pull out the SIM card, the terminal will be off. - Page 11 Please send SMS command to the number of terminal so as to set up the DNS parameter. The terminal will reply “OK” automatically after setting successfully. Send SMS command: SERVER,1,DNS,Port,0# e.g. SERVER,1,JM01.szdatasource.com,8841,0# 6.3 Set SOS Number (1) Add SOS number Via SMS command Send SMS command: SOS, A,number1,number2,number3 # (A means add number).
- Page 12 If you do not know the sequence number, you can also delete the number by SMS command like this: SOS, D,number# e.g. SOS, D, 135278****0# means delete this SOS number directly. It will reply “OK” if the number is deleted successfully. (3) Add SOS numbers via platform You can set SOS number via the platform after activating the terminal.
- Page 13 Send SMS command: PARAM# The terminal will reply messages including: IMEI number, GPRS upload interval, time interval that GPS is activated when ACC is off, SOS numbers, center number, sensor alarm interval, defense time and time zone. 6.6 Set GPS data upload interval (1) Upload by interval The default upload interval is 20 seconds, which means every 20 seconds the terminal will upload its location data to the platform.
- Page 14 6.7 Corners upload (ON as default) The terminal will upload GPS data to the platform when the vehicle is turning (the turning angle reaches the pre-set value). NOTE: if the speed is too low during turning, the GPS data will be not able to upload to the platform.
-
Page 15: Operation
7 Operation 7.1 Check location (1) Ask for coordinates Send SMS command from SOS number to the terminal: WHERE# Only SOS number can apply for replying longitude and latitude from the terminal. If GPS is located, it will reply latest longitude and latitude information. e.g. - Page 16 The platform website: www.jimishare.com Please contact your supplier for the login methods and operations. 7.2 Vibration Alarm (ON as default) When the vehicle is turned off (ACC low) and stays off for 3 minutes (pre-set), the terminal will enter arm status. During this time, if the terminal detects 6 times vibrations (default) and the vehicle still stays off (ACC off) in 30 seconds, it will activate vibration alarm.
- Page 17 “Cut Power! <DateTime:10-11-23 23:42:51> http://maps. google.com/ maps?q=N22.571490,E113.877103” Send SMS command: POWERALM,OFF# to turn it off. 7.4 Low Battery Alarm (ON as default) When the battery is low, the terminal will send SMS to SOS numbers and upload alarm information to platform. Send SMS command: BATALM,OFF# to turn off the alarm. 7.5 Moving alarm (OFF as default) Send SMS command: MOVING,ON,R# (100≤R≤1000 meters, 300 is recommended) In the situation where ACC becomes low, if the vehicle is moved over 300 meters...
-
Page 18: Troubleshooting
When the vehicle was stolen, you can cut off the petrol on the platform in the situation where the speed is under 20km/h. Platform password is needed. Or you can send SMS command to the device. Send SMS command: RELAY,1# to cut off petrol. (2) Restore petrol You can restore petrol on the platform. - Page 19 SIM card is not inserted Check the SIM card correctly The sheet mental of SIM Wipe it clean card isdusty Cannot connect to the Contact your SIM card Invalid SIM card network operator Move back to the GSM Out of GSM service area service covered area.
