PG201 User Manual
Version: V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the PG201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jimi PG201

Summary of Contents for Jimi PG201

  • Page 1 PG201 User Manual Version: V1.0...

  • Page 2: Main Functions

    1 Introduction 1.1 Main Functions SOS call and speed dial in emergencies GPS+LBS+WiFi positioning Dust- and water-proof Low battery alert Voice time reminder Battery strength reminder 1.2 Specifications Location Accuracy < 10 meters Working Voltage/Current 3.7VDC/75mA Battery 1200mAh lithium-polymer battery Dimensions 102.5 (L) mm*61.0 (W) mm*9.0 (H) mm Weight...

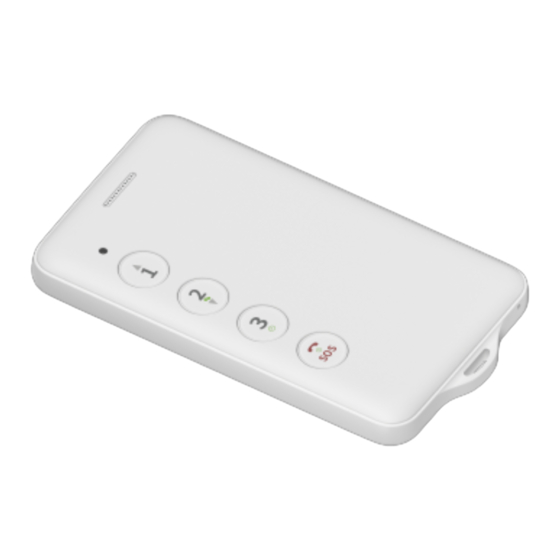

  • Page 3 1.4 Appearance Receiver Work phone 1/Help Work phone 2/Battery reminder Work phone 3/Time reminder SOS/Power/End call USB charging port Back cover Speaker Hole for lanyard Name card Front cover Cover-removing groove...

  • Page 4: Quick Start

    2 Quick Start 1.5 SIM Attachment Step 1. Prepare a Nano SIM. Standard Micro Nano √ Note: It is recommended to activate the SIM card with the Caller ID function and a monthly data plan of at least 30MB. Step 2. Attach the SIM. 1.
  • Page 5 3. Insert the SIM to the slot in the correct direction. 4. Attach the cover back in place and thread the lanyard.
  • Page 6 1.6 Power-on and -off Power-on: Press and hold for 3s until the red, green, and blue LED light up in sequence. Power-off: Remove the SIM and press the "RESET" button by the card slot (as the following figure shows).
  • Page 7 ★Note: If the device fails to power on, do the followings: 1. Check whether a SIM is inserted; if not, insert a Nano SIM; or 2. Check whether the device has sufficient power; if not, charge the device. 1.7 Charging 1.

  • Page 8: Led Indication

    1.8.2 Downloading App You can download the location service app for Android and iOS via the website provided by your dealer. 1.9 LED Indication To know the work state of the device, press any button to activate the LED indicator while the device is in standby.

  • Page 9: Panic Button

    1. Press button 1, 2, or 3 to answer an incoming call and press the panic button (SOS) to end a call. During a call, you can turn on or off the hands-free mode by long pressing the button 1, 2, or 3. 2.

  • Page 10: Troubleshooting

    which means it is resistant to splashing and water jets under normal use. However, the resistance to splashing and water jets may decline with daily wear and the warranty does not cover damages resulted from soaking in liquid. 5 Troubleshooting When a problem arises, you can troubleshoot it by the following solution.

  • Page 11: Warranty Instructions And Service

    service. The device keeps replying with Please contact with your "No data found, please try again". dealer. Please set your mobile You may send the request via a number as the emergency non-emergency (SOS) number. number. Warranty Instructions and Service Statement 1.
