Summary of Contents for Jimi JM01

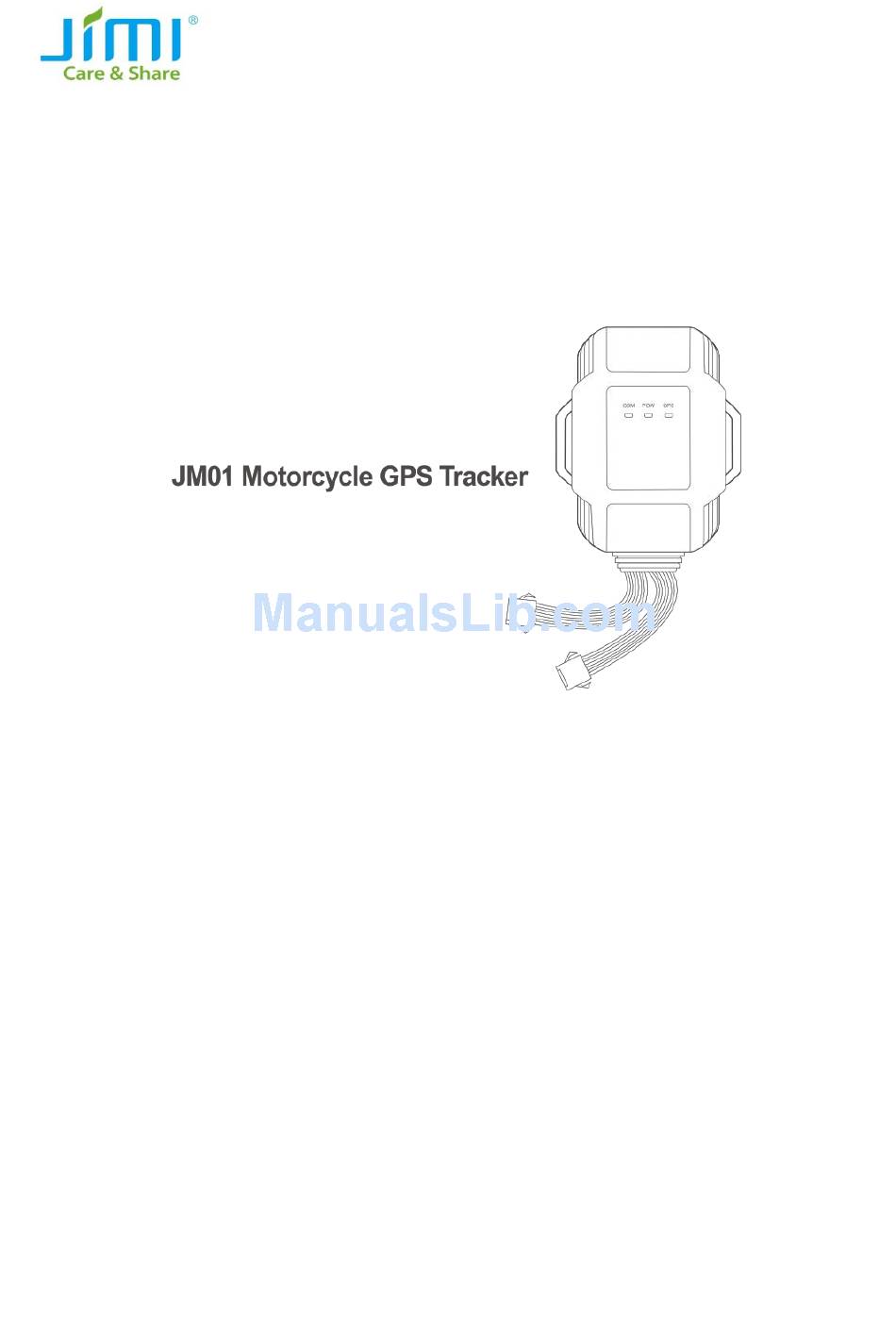

- Page 1 User Manual...
-
Page 2: Interface Descriptions
Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only 1 Accessories Pictures are for indication and illustration purposes only. NOTE: After opening the packing box, please check if the accessories are complete. If there is anything missing, please contact your distributor. - Page 3 3 LED status indicator and wiring 3.1 Red LED（power/working status indicator） Status Meaning Quick flashing Low battery Slow flashing Fully charged Continuously in bright Charging Continuously in dark No battery/troubleshoot 3.2 Blue LED(GPS signal indicator） Status Meaning Quick flashing Searching GPS signal Slow flashing GPS signal has successfully Continuously in dark...
-
Page 4: Installation
3.5 Function of the wires Function Color Function Illustration Positive pole Black Negative pole Orange ACC on Relay Yellow Relay controlled wire Green Send data / for backup Blue Receive data / for backup Purple Ground wire 4 Installation 4.1 Wiring 1：Red 2：Black 3：Orange... -
Page 5: Power On/Off
(1) Use multi-meter to find out the negative pole of the battery. (2) Use multi-meter to find out the ACC wire. Method: Use the red pen to connect with the ACC wire while the black pen connects with the ground wire. In this condition, when the ignition lock is off, the voltage is 0; when the ignition lock is turned on, the multi-meter will show the voltage. -
Page 6: Parameters Setting
Please send SMS command to the number of terminal so as to set up the DNS parameter. The terminal will reply “OK” automatically after setting successfully. Send SMS command: SERVER,1,DNS,Port,0# e.g. SERVER,1,JM01.szdatasource.com,8841,0# 6.3 Set SOS Number (1) Add SOS number Via SMS command Send SMS command: SOS, A,number1,number2,number3 #(A means add number). - Page 7 (2) Delete SOS Numbers Send SMS command: SOS, D,1,2,3# (D means delete SOS number) e.g. SOS, D,1# means delete the first number SOS, D,3# means delete the third number If you do not know the sequence number, you can also delete the number by SMS command like this: SOS, D, number# e.g.
-
Page 8: Operation
It means for every 300 meters, the terminal will upload GPS data to platform. NOTE: if the upload interval is short, the GPRS current will add up. Please set the suitable upload interval. 6.7 Corners upload (ON as default) The terminal will upload GPS data to the platform when the vehicle is turning (the turning angle reaches the pre-set value). - Page 9 (3) Check platform The terminal will send position information to the platform server timely. Users can check the position on the platform. The platform website: www.cootrack.com Please contact your supplier for the login methods and operations. 7.2 Vibration Alarm (ON as default) When the vehicle is turned off (ACC low) and stays off for 3 minutes (pre-set), the terminal will enter arm status.
-
Page 10: Troubleshooting
7.6 Petrol cut-off (1) Cut-off petrol When the vehicle was stolen, you can cut off the petrol on the platform in the situation where the speed is under 20km/h. Platform password is needed. Or you can send SMS command to the device. Send SMS command: RELAY,1# to cut off petrol. - Page 11 Please contact the SIM card operator GPRS function is not activated to activate GPRS ①restart the terminal Cannot check Cannot get the position data ②contact with your supplier address information It is not a SOS number set SOS number FCC Statement 1.
