Jimi QBIT User Manual

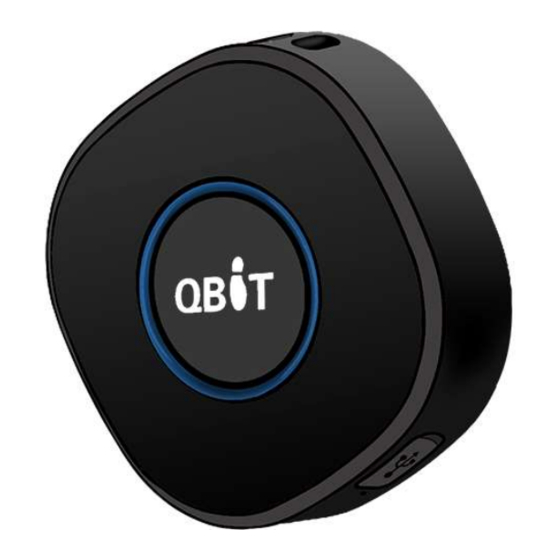

Portable gps tracker
Hide thumbs
Table of Contents

Advertisement

Quick Links

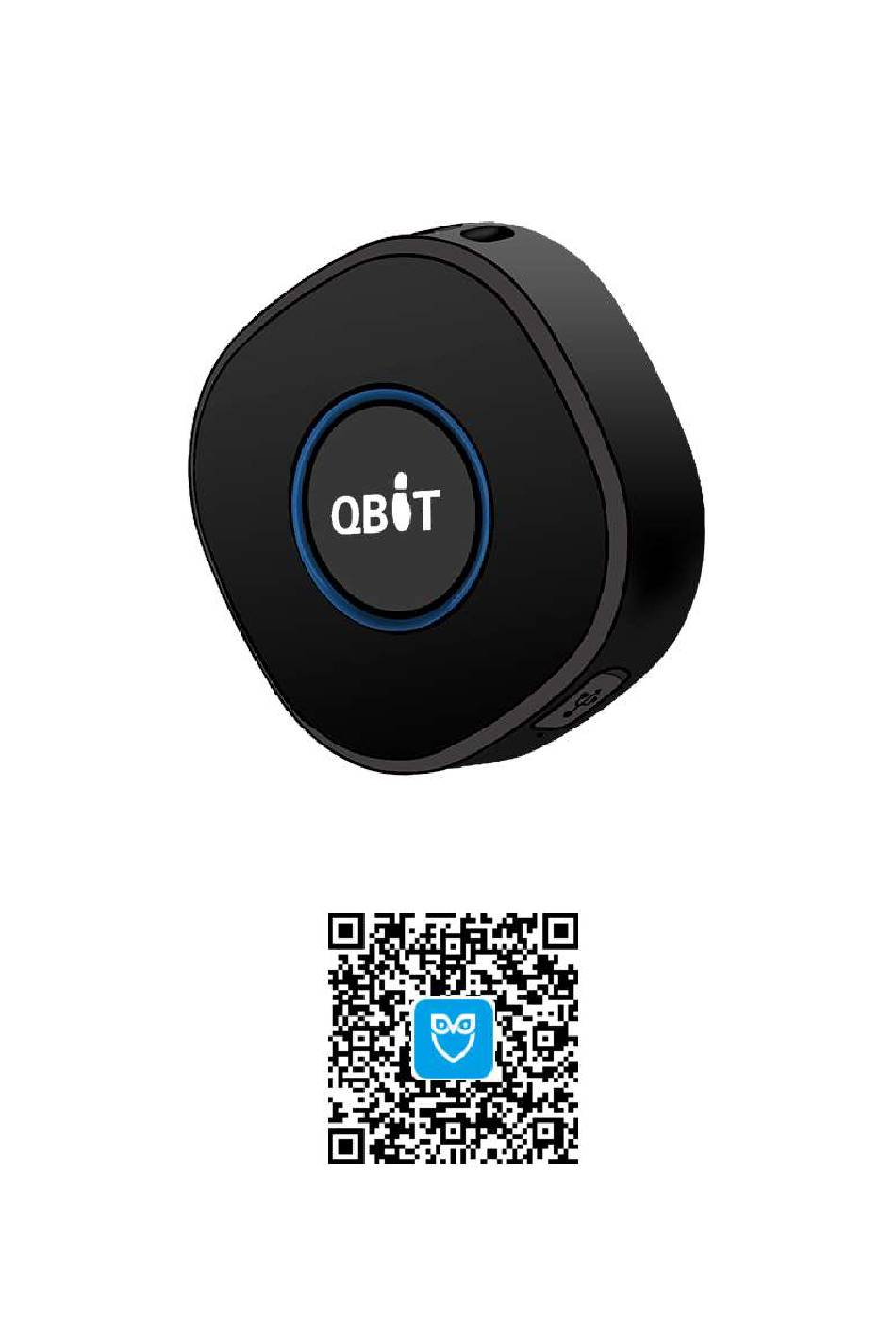

Portable GPS Tracker
(User Manual)
Download APP
Tracking App:
JIMIMAX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBIT and is the answer not in the manual?

Questions and answers

Related Manuals for Jimi QBIT

Summary of Contents for Jimi QBIT

  • Page 1 Portable GPS Tracker (User Manual) Download APP Tracking App: JIMIMAX...

  • Page 2: Table Of Contents

    Content Accessories .......................... 3 Overview ..........................3 Quick Start ........................... 4  Charging ........................4  Insert Sim Card ......................4  Power On / Off ......................5  Download “JIMIMAX” App ..................6  Sign up and Login ....................... 6 ...

  • Page 3: Accessories

    Accessories User Lanyard Activated Charger Cable Guide Rope Sim Card Overview...

  • Page 4: Quick Start

    Quick Start  Charging Charging Red light keeps on Fully Charged Red light flashes slowly ≧2 Hours Charging Time Note: Please fully charge the device for first use.  Insert Sim Card  Insert the Nano SIM into the device.

  • Page 5: Power On / Off

     When putting the battery lid back, please align it and press it lightly to lock it in.  Power On / Off  Power On: Long press the SOS button over 3 seconds to turn on the device. Blue, Green flicker alternately means the device is on.

  • Page 6: Download "Jimimax" App

     Download “JIMIMAX” App  Sign up and Login  When first using, please click the “Sign Up” to create an account.  Fill in a valid email and click “GET CODE”. You will receive a verification code by email.

  • Page 7: Bind Device To App

     Type in the verification code, and set a password to sign up.  After successful registration, log in with the email and password you just registered to enter the homepage.  Bind device to APP  Click the middle icon “Add device” to add the tracker device. ...
  • Page 8  If the device is offline, the APP will prompt you whether you want run an offline analysis.  Check the device or SIM card follow the analysis result. If you cannot fix it, please click “Contact Us” or the floating “Get Help”...

  • Page 9: Main Functions

    Main Functions  Real Time Location - Check where the tracker is, and get actual address. QBIT Advisory Traffic Map Type The Tracker Your Phone Zoom in Click to see Go to the address Device / Me Device Status If the map doesn't show, please download Google Maps...

  • Page 10: Trip Tracking & Navigation

     Trip Tracking & Navigation - Tapping “Tracking” button to enter the Track page. The trajectory drawn based on the positions point of the tracker. *The smaller the reporting interval you set, the more accurate the trajectory will Import address to Google Map...

  • Page 11: History Playback

     History Playback - Tapping “Playback” button to enter Trips page. - Choose a date you want to playback and click “Continue” button - Tap on to play the history. Select Date Range...
  • Page 12  Preset SOS Number - Tapping “Settings” button to enter Settings page. - Preset the phone numbers you want the tracker to call when the SOS alert triggered. Tap “Send” to submit *If there is an error when sending, please take a screenshot and contact us.
  • Page 13 - Preset the whitelist of numbers you allowed to call to the device. Tap “Send” to submit *Please read the instructions at the top carefully when modifying the settings. Test them after setting to ensure important alert work properly Note: 1.

  • Page 14: Geo-Fence

    call.  Reject Call: Long press to reject incoming call.  Hang up: Short press to hang up during a call.  Call Tracker: Dial the SIM card number of Tracker with the whitelist number.  Geo-Fence - Tapping “More” button and tapping Fence in the pull up menu to enter Fence page.

  • Page 15: Troubleshooting

    Troubleshooting  LED Indicator Function SOS Button Blue Green Red, green and blue each light up and flash alternately for 1s when Power on Press and hold for 3s turning on Long press for 3s when no SIM card inserted Power off In the power-on state, press the key 5 times to force the shutdown (the interval between each press should less than 0.7 seconds)

  • Page 16: Command List

     Command List  Command can be sent via SMS Function Command Explanation Get device status Check Status CHECK# Get location Check Position WHERE# detail Status Get location in Check URL URL# Set SOS number Set SOS number SOS,A,number1,number2,number3# as “number1~3” Set APN as Set APN APN,name#...

  • Page 17: Faq

    A: There is no positioning point of the device on the map because the device has not uploaded any positioning data. If QBIT is online, please bring the device to an open sky to get GPS signals. If QBIT is offline, please check battery power and SIM card data balance first, and contact us.
  • Page 18 APN Then inserting the SIM card into the phone and turn off the PIN. Then insert the card into the QBIT and keep it on. e.g.：Disable the PIN Then send a command to the SIM card in the device via SMS: APN,name# e.g.：Send APN command...
  • Page 19 After sending, the device will reply "OK" and reboot the device. Once the QBIT gets online again, means it can now successfully connect to the network via the new SIM card. Q: Why does the QBIT offline on the JIMIMAX? ...

  • Page 20: Warranty & Support

    If you are using other SIM cards, please top-up on the operator’s website. Contact us by tap the floating ‘Get Help’ icon to live chat  with technical team. Email us:Customer-service@jimilab.com  Warranty & Support This warranty covers any manufacturing defects to the device or accessories encountered by normal use.
