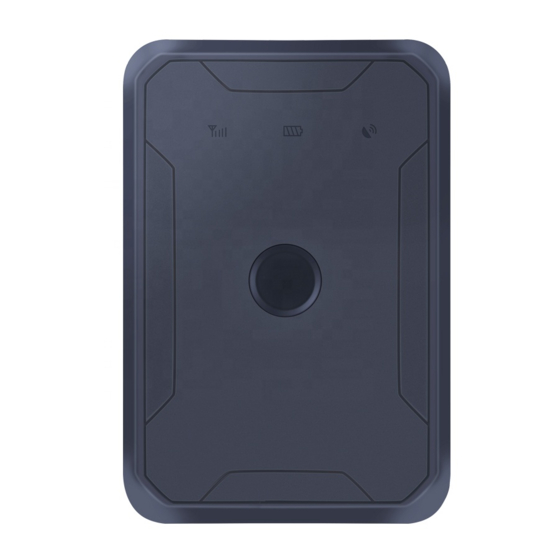

- Page 1 JM-LL02 LTE CAT M1/NB2 ASSET TERMINAL USER MANUAL(V1.0)
- Page 2 CONTENTS ..Product overview ..Standard parts list ..Specification ..LED indication ..Charging ..Product Setup ..Configure the device ..Commands list ..Installation recommendation ..Web Platform and App ..Troubleshooting ..Warranty instructions Maintenance Record...

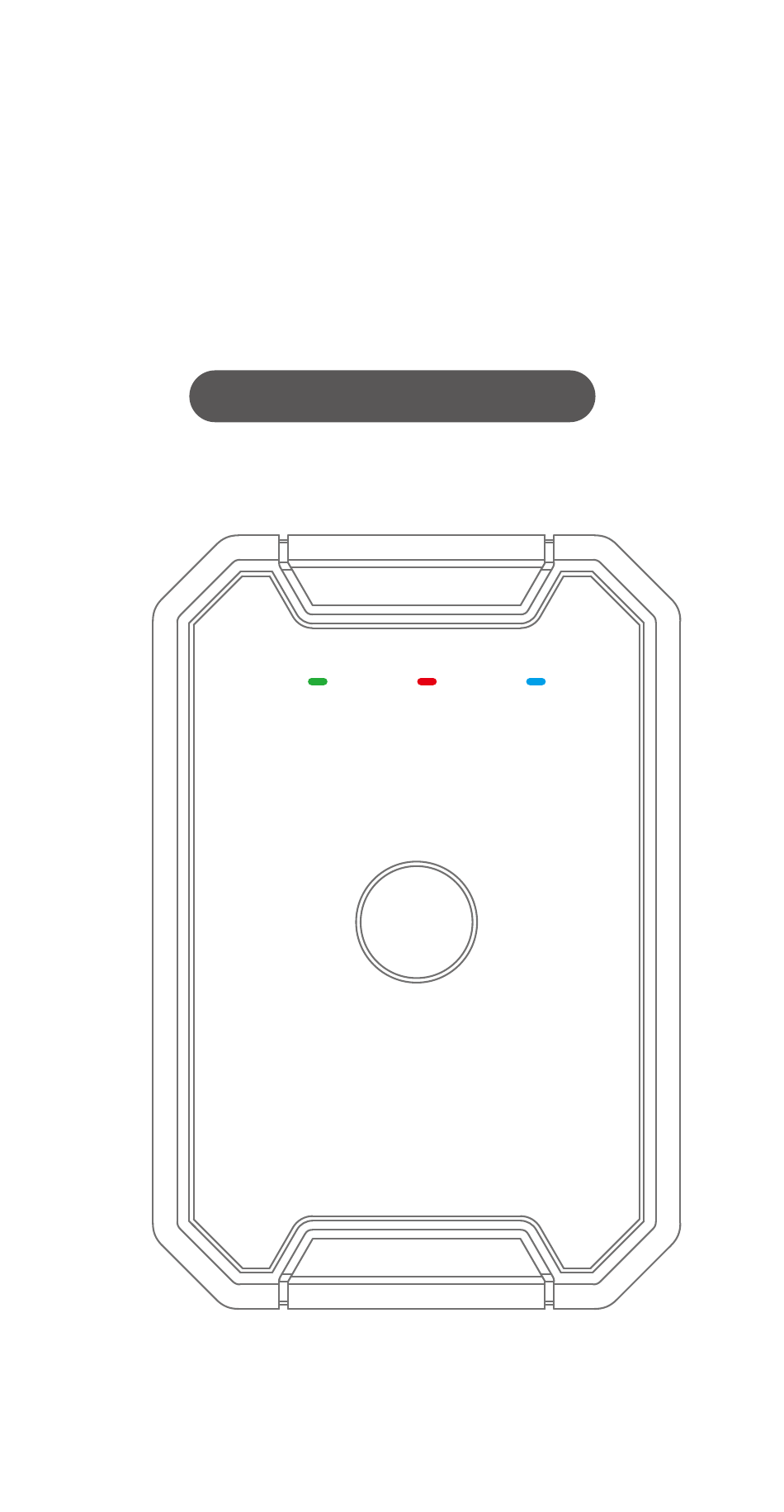

- Page 3 Making connections simpler 01/Product overview Network indicator GPS indicator Power indicator On/off button Light sensor Magnetic cover joint part Charging port Magnetic contacts Magnetic connector GPS + WIFI + LBS positioning Real-time location query ● ● Geo-fence alert Vibration alert ●...
- Page 4 Making connections simpler 03/Specification LTE M1/NB2：B2/B4/B5/B12/B13/B66 Frequency band GSM：850/1900MHz Avg. Cold start: <40sec TTFF(opensky) Avg. Hot start: <1sec Location accuracy < 10m Dimensions 85 X 58 X 29 mm Weight 6000 mAh,37V Li - Polymer battery Operating -20°C to+70°C Temperature Transmit Protocol 04/LED indications Power Status (Red)
- Page 5 Making connections simpler Solid off No GSM signal/ No SIM card 05/Charging Please charge the device by original 5V/2A charger. It takes about 3 hours to fully charge the device. Charging LED 06/Product setup Insert SIM card: Please use a screw driver to remove the screws and open the case to insert a SIM card (Size: Nano).
- Page 6 Use your mobile phone to send commands to the device SIM card number by SMS, please refer details of the commands in Commands list section . Method 2 : 1. Download and install the "Jimi loT Lab" app by the following link: http://d.6short.com/lnbr. For iOS 9 and above Only Make sure the Bluetooth is enabled on your iPhone, choose Connect on landing page.
- Page 7 If the password has been set, each command will need to be sent with the password filled. In "Jimi loT Lab" app landing page, you can create a template with multi- ple commands in Presets page, when the device is connected you can tap the "Upload preset"...
- Page 8 Making connections simpler ASETGMT,<X># X=ON/OFF, ON:Enable auto set time zone, Auto set ASETGMT OF:Disable auto set time zone time zone ASETGMT# Query auto set lime zone settings SERVER, 1,domain name,port# SERVER,0,IP,port# Platform Default:SERVER, 1,GPSDEV. SERVER server TRACKSOLID.COM,21102# setting SERVER# Check the current sever settings GMT,A,B,C# A:E/W;...
- Page 9 Making connections simpler PWDSW,A# A=ON PWDSW,A,B# A=Numbers and alphabets, 1-19 digits;Default:666666 Set command B=OFF PWDSW password When PWDSW is ON, all the command has to send with the password as the first parameter, e.g.:MODE,666666, 1,30,30# PWDSW# Query current password selling Modify PASSWORD,A,B# PASSWORD...
- Page 10 Making connections simpler Query device PARAM parameters Query platform server GPRSSET and APN Setting STATUS Query status 09/Installation recommendation Under rear windshield Under front windshield Around dashboard The device should face up to the sky. Metal thermal barrier or heating layer of the windshield affects the signal.
- Page 11 Making connections simpler 11/Troubleshooting Type Check theAPN and IP settings. Unable to connect to tracking Check whether the data service of platform SIM card is enabled. Check the balance of SIM card. Check if the device entered network blind area. Tracker shows offline Check the balance of SIM card.
- Page 12 Making connections simpler Maintenance Record Date Serviced by Product Model IMEI Number Fault Descriptions Comments 8 11...
