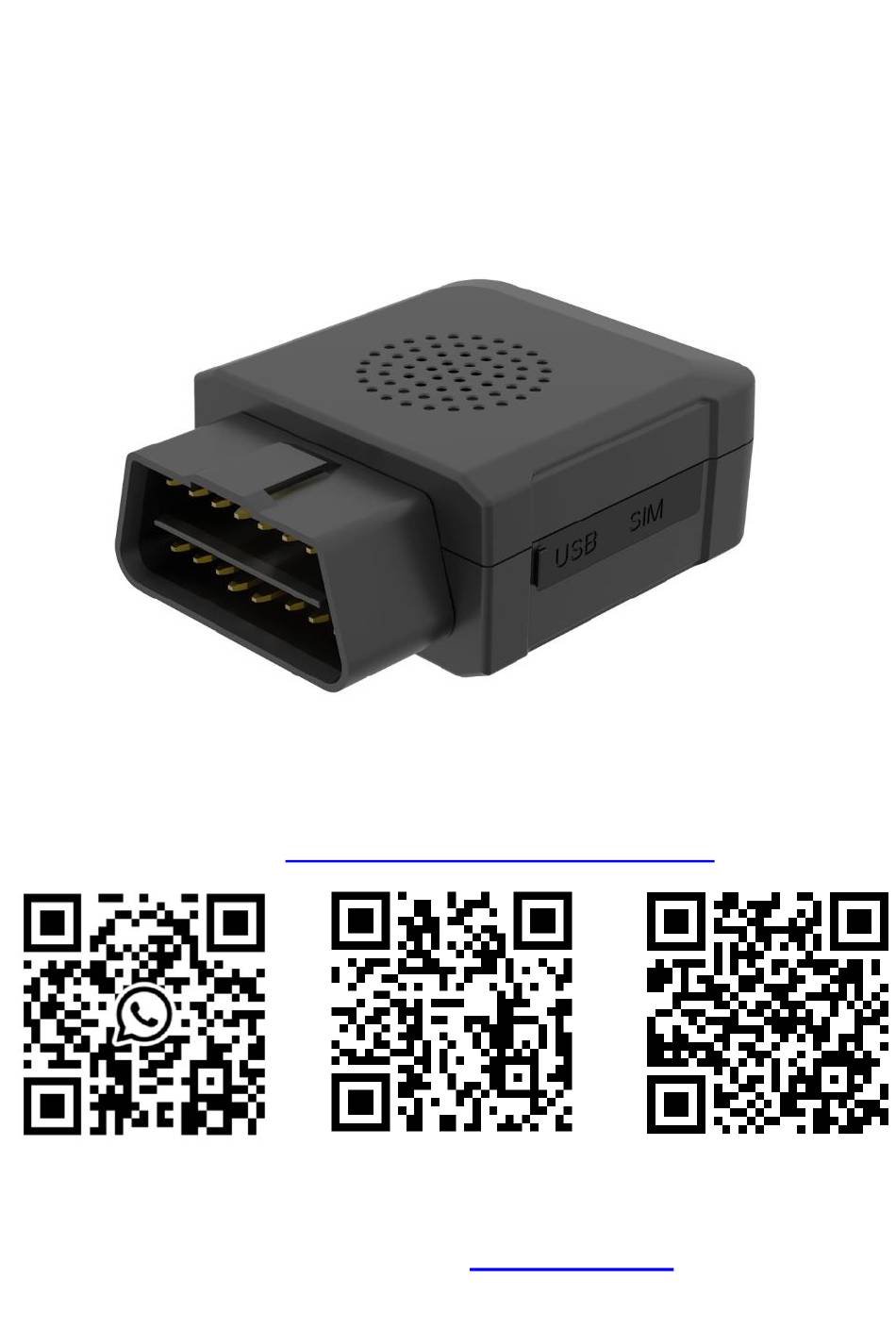

- Page 1 VL04 GPS Tracker (User Manual) Email: customer-service@jimilab.com WhatsApp FB Messenger Tracking App Tracking Website: Tracksolid.com...
-
Page 2: Table Of Contents
Content Appearance ................3 Accessories ................4 Quick Setup ................4 ➢ Insert SIM Card ..................... 4 ➢ Insert & Power on ..................5 ➢ Download Tracksolid App ................6 ➢ Sign up & Login ..................... 6 ➢ Bind Device ....................7 Ensure Device Online .............. -
Page 3: Appearance

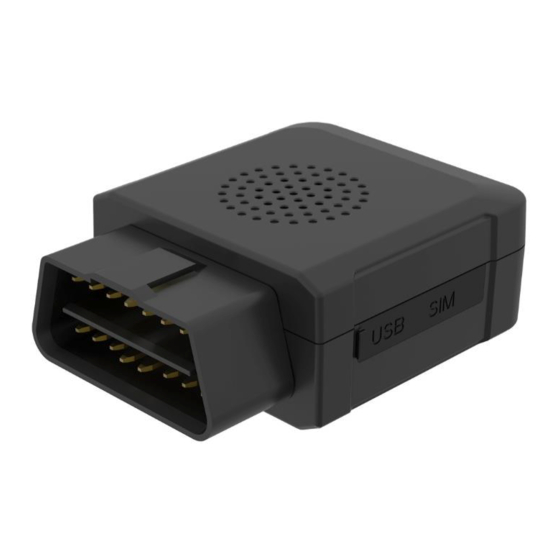

Appearance Speaker Power LED OBD II Port GNSS LED Network LED SIM Card Slot Debug Data Port (For Business Clients) -
Page 4: Accessories
Accessories SIM Card Base User Manual * Note: A SIM card is necessary to use the GPS locator. Please prepare a SIM card compatible with the device. Quick Setup Insert SIM Insert & Power on Download App Bind Device Sign up & Login ➢... -
Page 5: Insert & Power On
What SIM Card should I Choose? 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 4G LTE-TDD: B38/B40/B41 Frequency Band 2G GSM: B2/B3/B5/B8 Required Service Data & SMS & Voice Call SIM Type Nano Size ➢ Insert & Power on 1. Connect the device to the OBD port when the vehicle is ignition off. *You may find the OBD port in A to E spots marked on the picture down below. -
Page 6: Download Tracksolid App
➢ Download Tracksolid App ⚫ Search “Tracksolid” in App Store or Google Play to download. ⚫ Scan the QR down below to download. ➢ Sign up & Login ① ② ③ ④ ⑤ ⑦ ⑥ ① Input your email ② Click ‘->’ to get verification code ③... -
Page 7: Bind Device
➢ Bind Device Add Device Scan Barcode Find the IMEI barcode on package or device 1. Click the ‘+’ on the top right to add device. 2. Scan or type in the IMEI number on the package or device body. 3. - Page 8 ⚫ Edit basic info about this device, or click on ‘Save’ directly to skip this step. ⚫ You can come back and edit the info anytime in the ‘Detail’ Page. Edit...
-
Page 9: Ensure Device Online
Ensure Device Online 1. Go to ‘List’, you will see the VL04 you just bind. 2. You can tell the status of the device via the color of the icons. 3. To get a location or send any command, the device must be online. -
Page 10: Set Sos Number
➢ Set SOS number ⚫ After device is online, you can set an SOS number to receive SMS alert or trigger a voice monitor call. 1. Find your device in the list page, click on the icon. 2. Go to ‘Command’ page to set the SOS number. ⚫... -
Page 11: Troubleshooting
Troubleshooting ➢ LED Indicators Status Meaning Quick Solution Solid on Fully charged Battery died / Malfunction Flicker Quickly Low battery Unplug the device (0.1s on; 0.1s off) from OBD II Port Flicker Slowly Working properly and install again. (0.1s on; 2s off) Flicker Slowly Charging (2s on;... -
Page 12: Set Up Apn
Step 2 - Insert the SIM card into your smartphone and disable the PIN code. Step 3 - Get the APN name from carrier or Google it. Step 4 - Insert SIM back into the device and power on VL04, then send an SMS command (APN,APNname#) to the SIM card. -
Page 13: Get Help
APN name: mobilenet Then send the command: APN,mobilenet# (No spaces between the commands) Step 5 – Reboot the device and find it online. ➢ Get Help ⚫ Email us: customer-service@jimilab.com ⚫ Messenger us on Facebook: M.Me/LNCOON ⚫ Live chat via WhatsApp: +86 13423860204... -
Page 14: Main Functions
Main Functions ➢ Bottom Menu Map Page Device List Alerts Report Account Setting ➢ Console Menu 1. Tapping the icon to check the device. 2. Tapping the button to expand the menu. Device Status Last Location Console Menu Note: If there is no map display, please install Google Maps app. -
Page 15: Real Time Tracking
➢ Real Time Tracking ⚫ Tapping on ‘Tracking’ to enter tracking page. Map Type Show Traffic Street View Locate VL04 Show the Address Share Location Device Status... -
Page 16: History Playback
➢ History Playback VL04 Select the time period and click "OK" ⚫ Click ‘Playback’ to search the track among the past 6 months. Calendar Report Play & Pause Speed up Hide & Show the line Choose another period... -
Page 17: Geo Fence
➢ Geo Fence Add Fence ⚫ Click ‘Geo Fence’ to manage your customized fences. ⚫ Search Landmark Set Radius Rename Fence Alert Trigger Option Confirm Create Fence... -
Page 18: Set Work Mode
➢ Set Work Mode ⚫ Find your device in the list page, click on the icon. ⚫ Go to ‘Command’ page to set a work mode based on different situations, to get a more accurate location or longer standby time. ⚫... -
Page 19: Command List
➢ Command List ⚫ Command can be send via SMS ⚫ Send online command via ‘User-Defined’ in the Command Page Function Command Explanation Check Status CHECK# Get device status Get Location WHERE# Get current location Set SOS number as ‘number’ Set SOS Number SOS,A,number# Set APN as ‘name’... -
Page 20: Specifications
➢ Specifications Positioning GPS/Glonass/BDS/QZSS Positioning system AGPS/LBS Assisted Frequency Track accuracy <2.5m CEP Network Communication network LTE Cat1 + WCDMA + GSM LTE-FDD: B1/B3/B5/B7/B8/B20/B28 Frequency LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 Power & Function Battery 50mAh industrial-grade LiCo battery Data storage Ignition detection External Power Voltage Physical Specification Dimensions...
