Vehicle GPS Tracker GV200
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jimi GV200

Summary of Contents for Jimi GV200

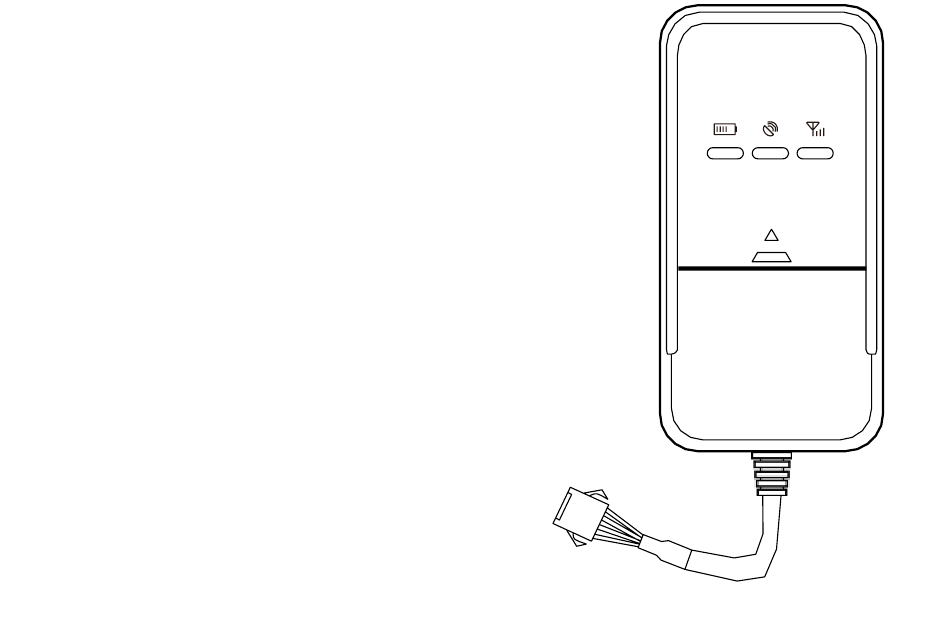

  • Page 1 Vehicle GPS Tracker GV200 User Manual...
  • Page 2 Thanks for purchasing this Jimi GV200. This device will provide you high quality GPS tracking service based on Jimi’s exceptional technology and standards. This user manual has been specially designed to guide you through the functions and features of your GV200.

  • Page 3: Features And Benefits

    Popular Uses: Fleet Management - Track your fleet easily. View up to 15,000 units from a single map. Investigators and Law Enforcement - Get the real-time location evidence you need. Vehicle Owners - Use for vehicle theft and recovery efforts. Features and Benefits: No Battery Life Concerns - The unit is hardwired to your vehicle’s battery.
  • Page 4 Introducing your GV200 Learn about your device’s layout, indications and specifications. 1. Inside the Box Check your product box for the following items: ● Device ● Charging Cable ● User Manual 2. GV200 Overview GSM indicator (green) GPS indicator (blue)

  • Page 5: Led Indicators

    LED Indicators Power indicator (red) Indication Flashing Power on Solid red Not working properly Power off GPS indicator (blue) Indication Quick Flashing (0.1s on, 0.1s off) Searching GPS signal Solid blue GPS fixed No GPS fixed or initializing GSM indicator (green) Indication Quick flashing (0.1s on, 0.1s off) GSM initializing...

  • Page 6: Specifications

    3. Specifications Dimension 86.6(L) x 44(W) x 13.6(H) mm Weight 50.5g -20℃ - 70℃ Operation Temperature Operation Voltage 9-36vDC Humidity 20% - 80% GSM Frequencies 850/900/1800/1900 MHz GPRS Class 12 GPS Sensitivity -159dBm Acquisition Sensitivity -144dBm Position Accuracy Cold Start: ＜ 38s TTFF (Open Sky) GSM/GPS Antenna LED Indicator...

  • Page 7: Getting Started

    4. Getting Started Get started by assembling and setting up your device for its first use. To remove the back cover: ● Firmly hold the device with both hands and the front panel facing down. ● Push the back cover up with your thumbs until it disengages from the device and then slide it up to remove.
  • Page 8 Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge. 4.2 Charge the device (Covert installation) Plug the device connector into a charging cable. The charging cable with 2A FUSE for short-circuit over current protection.
  • Page 9 2. All metallic cases of the windshield will attenuate the signal on the tracking device. It’s simply due to the shielding effects of the metal compound of the case. 3. The device should be fixed into position with cable ties or wide double-side tape. Installation please refers to below picture.

  • Page 10: Device Wiring

    Device Wiring 1 The standard voltage is 9V-36V, the red wire is the positive, the black wire is the negative. 2. Connect the black wire to ground. 3. Wiring diagram Storage battery 2A Fuse Black 12V/24V Orange START Ignition Yellow 12/24V Relay Pump...
  • Page 11 4.5 Power/ACC/Tele-cut off(petrol/electricity) control cable (4 pin) 1. Device standard power supply 9V-36V DC, please use the original factory supply power cord, red is positive, black is negative. During installation, power negative please should be independently grounded, do not connect with other ground wire.
  • Page 12 5.1 Add SOS number SMS command to the device to add the SOS number. SOS,A,No.1,No.2,No.3# “A” means to add new numbers, for example: SOS,A, 18165542975, 18165542976, 18165542977# It will reply “OK! SOS1: 18165542975 SOS2: 18165542976 SOS3: 18165542977” after set successfully. 5.2 APN setting Please send the SMS command below,APN command format: APN,APN name# or APN,APN name,user name,password#...
  • Page 13 Command format: SERVER,1,domain,Port,0# Example: SERVER,1,www.jimishare.com,8841,0# It will reply “OK” after set successfully. 5.4 Set the center number If you want to cut off/restore oil by SMS command, you have to set a center number firstly. Only the center number can send the cut off/restore oil command to the device.
  • Page 14 Users can modify GPRS time sending interval by SMS TIMER,T1,T2# T1 ranges 5~18000 or 0(seconds), upload interval when ACC ON, 0 means no upload, default is 10; T2 ranges 5~18000 or 0(seconds), upload interval when ACC OFF, 0 means no upload, default is 10;...
  • Page 15 You can check the parameter setting by command: PARAM# Example: PARAM# Information replied: IMEI: 353419032348877 ---IMEI number of the device; TIMER: 10,10; ---GPS data uploading Interval; SENDS:5; --- the GPS working time when ACC is OFF; SOS:18165542976,,; --- SOS numbers, maximum 3 SOS numbers can be set and used for alarm and monitoring;...

  • Page 16: Operation Of Device

    GPRSSET# Example:GPRSSET# Reply message: GPRS:ON //GPRS on/off status// Currently use APN:CMNET,user,password; //APN setting information// Server:1,www.gpsluckly.com,88,0; //platform information// URL:http://maps.google.com/maps?q=; //preset web link setting information // 6. Operation of device 6.1 Power on/ Power off Power on: Once insert a valid SIM card and connect all the wires, turn on the device, then Power LED will flash first, during signal searching process, GSM and GPS LED will flash.
  • Page 17 6.2 Check location 1. Via SMS 1.1 SMS “WHERE#” to the SIM number of device. The device will send a location message automatically. You can get the coordinates. If the device does not search any information of location, it will send “No data” to the cell phone. Example: Current position! Lat:N22.577156,Lon:E113.916748,Course:131.99,Speed:0.00Km/h,Date...
  • Page 18 this case, the device will send related SMS to the specific numbers and dial the numbers in circles. If nobody answers, the call just keeps 3 loops at most. At the meantime, the device will upload SOS alarm data to the server. And it will send: Cut Power! <Date Time:13-06-17 14:53:06>, http://maps.google.com/ maps?q=N22576713,E113.916585 The specific numbers should be preset, please refer to 5.1...
  • Page 19 SENALM, ON# The alarm will be sent to both the service platform and SOS numbers. When vehicle power is off, ACC status is low, and if the lead time of low ACC is more than 10 minutes (settable), device will activate security alarm. When the security alarm is on, once the vehicle vibrates for several times, the alarm will be activated;...
  • Page 20 6.6 Oil cut-off 1. via platform Send oil cut-off command on platform. To make sure the security of vehicle, tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. Platform account password is needed when sending oil cut off command.
  • Page 21 When the alarm is off, sending recover oil commands manually. Device will restore oil supplying, and vehicle will work normally again. Platform account password is needed when sending oil cut off command. 2. Via SMS Only center number can send the command to the device to restore oil. The format is: RELAY,0# After the command is carried out, it will receive “Restore fuel supply: Success!”...

  • Page 22: Troubleshooting

    6.9 Restore to factory setting SMS command format: “FACTORY#” to set all parameter to default factory value. Once received “OK”, it succeeds. 6.10 Reboot device When there is something wrong with the link of GPRS, e.g., the parameter setting of the device is correct, but you can't track the car on the platform. At this moment you can send a command to the device to reboot the device.
  • Page 23 before contacting a service professional. Problems Causes Solutions Red LED does not work when The fuse blows Replace the fuse power connected Check SIM card installation Wrong installation of SIM card (►4.1 Install SIM card) Filth on the SIM card iron surface. Clean it Useless SIM Contact internet service provider...
  • Page 24 Use only approved accessories specially designed for your device. Incompatible accessories can cause serious injuries or damage to your device. Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explore when overheated. Never crush or puncture the battery.
