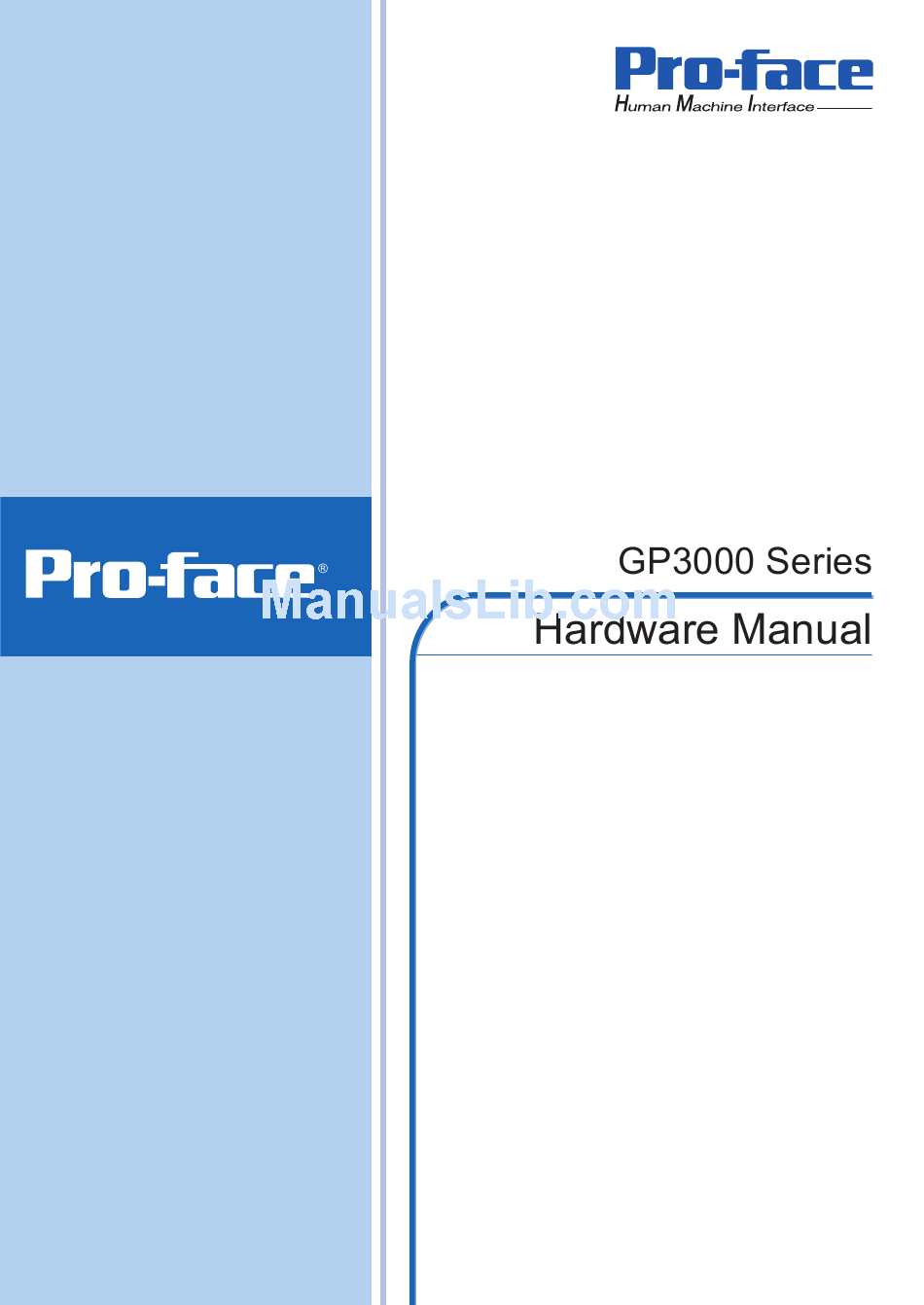

Pro-face GP3000 Series Hardware Manual

Hide thumbs Also See for GP3000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Pro-face GP3000 Series

Summary of Contents for Pro-face GP3000 Series

  • Page 2: Preface

    Preface Thank you for purchasing Pro-face’s GP3000 Series Programmable Operator Interface (Hereafter referred to as the “GP unit”). Before operating your GP unit, be sure to read this manual to familiarize yourself with the GP unit’s operation procedures and features.

  • Page 3: Essential Safety Precautions

    Essential Safety Precautions All safety-related procedures stated in this document must be followed to operate the GP correctly and safely. Be sure to read this and any related documents thoroughly to understand the correct operation and functions of the GP unit. Safety Icons Throughout this manual, these icons provide essential safety information for GP operation procedures requiring special attention.
  • Page 4 Design a circuit that will supply power to the GP unit’s I/O before starting up the GP. If the GP unit’s inter- nal program enters RUN mode prior to the I/O unit’s load control power turning ON, an incorrect output (signal) or malfunction could cause an accident.
  • Page 5 After the GP unit’s backlight burns out the touch panel is still active, unlike the GP unit’s “Standby Mode”. If the operator fails to notice that the backlight is burned out and touches the panel, a potentially danger- ous machine operation error can occur. Therefore, do not create GP unit touch panel switches that may cause injury and/or equipment damage.
  • Page 6 Do not connect or disconnect Host and GP unit communication cables while the GP is turned ON. Do not replace the GP unit’s battery yourself. The GP uses a lithium battery for backing up its internal clock data and the battery may explode if it is replaced incorrectly. When replacement is required, please contact your local GP distributor.
  • Page 7 Unit Disposal When the product is disposed of, it should be done so according to your country’s regulations for similar types of industrial waste. General Safety Precautions Do not press on the GP unit’s display with excessive force or with a hard object, since it can damage the display.

  • Page 8: About The Manuals

    LED and the LCD display may look bluish. About the Manuals For the detailed information on GP3000 Series, refer to the following manuals. • Maintenance/Troubleshooting For the Offline Settings, see Maintenance/Troubleshooting (Offline Settings Guide).

  • Page 9: Information Symbols

    Indicates useful or important supplemental information. Contains additional or useful information. Indicates pages containing related information. GP3000 Series Model Name Indication Model name A G P 3 * ** - * 1 - *** - **** GP-3200 series (3.8-inch): QVGA (320 x 240 dots) GP-3300 series (5.7-inch): QVGA (320 x 240 dots), VGA (640 x 480 dots)

  • Page 10: Gp3000 Series Model Names

    GP3000 Series Model Names Series Names Models AGP-3200A AGP3200-A1-D24 GP-3200 series AGP-3200T AGP3200-T1-D24 AGP-3300L AGP3300-L1-D24 AGP3300-L1-D24-D81K AGP-3300L-D81 AGP3300-L1-D24-D81C AGP-3300L-FN1M AGP3300-L1-D24-FN1M AGP-3300L-CA1M AGP3300-L1-D24-CA1M AGP-3300S AGP3300-S1-D24 AGP3300-S1-D24-D81K AGP-3300S-D81 AGP3300-S1-D24-D81C AGP-3300S-CA1M AGP3300-S1-D24-CA1M AGP3300-T1-D24 AGP-3300T/U GP-3300 series AGP3300-U1-D24 AGP3300-T1-D24-D81K AGP-3300T-D81 AGP3300-T1-D24-D81C AGP-3300T-FN1M AGP3300-T1-D24-FN1M AGP-3300T-CA1M...

  • Page 11: Package Contents

    • GP-3300 series <AGP-3310T/3360T only> <All GP-3300 series, except AGP-3310T/3360T> Clip: 2, Tie: 2 Holder: 1, Clamp: 1 • GP3000 series except GP-3300 series Holder: 1, Cover: 2 (GP-3200 series only: Holder: 1, Cover: 1) AUX Connector: 1 RCA-BNC Convertor: 1 •...

  • Page 12: Ul/C-Ul/Csa Approval

    UL/c-UL/CSA Approval 1) The following units are UL/c-UL/CSA listed products. (UL File No.E220851, UL File No.E182139, CSA File No.219866) Product Model No. UL/c-UL/CSA Registration Model No. AGP3300-L1-D24-∗∗∗∗ 3280007-03 AGP3300-S1-D24-∗∗∗∗ 3280007-02 AGP3300-T1-D24-∗∗∗∗ 3280007-01 AGP3301-L1-D24 3280007-13 AGP3301-S1-D24 3280007-12 AGP3302-B1-D24 3280007-24 AGP3310-T1-D24 3710011-01 AGP3360-T1-D24 3710011-02 AGP3400-T1-D24-∗∗∗∗...
  • Page 13 Additional four digits at the end of the model name do not affect the registration model No. For example, AGP3500-S1-AF and AGP3500-S1-AF-D81K are approved for the same UL/c-UL registration model No. of 3280024-21. As for AGP3500-S1-AF-CA1M and AGP3510-T1-AF-CA1M, the sales area is limited. This product conforms to the following standards: •...
  • Page 14 <Cautions> Be aware of the following items when building the GP into an end-use product: • The GP unit’s rear face is not approved as an enclosure. When building the GP unit into an end-use product, be sure to use an enclosure that satisfies standards as the end-use product’s overall enclosure. •...

  • Page 15: Ce Marking

    CE Marking The following units are CE marked products complying with the EMC Directive. They comply with EN55011 Class A, EN61131-2. AGP3200-A1-D24 AGP3200-T1-D24 The following units are CE marked products complying with the EMC Directive. They comply with EN55011 Class A, EN61000-6-2. AGP3300-L1-D24-∗∗∗∗...

  • Page 16: Table Of Contents

    Contents Preface ........................1 Essential Safety Precautions..................2 About the Manuals ....................7 Information Symbols....................8 GP3000 Series Model Name Indication ..............8 GP3000 Series Model Names................... 9 Package Contents ....................10 UL/c-UL/CSA Approval.....................11 CE Marking......................14 About Revision ......................14 Chapter 1 System Design 1.1 AGP-3300...
  • Page 17 Chapter 3 Part Names and Functions 3.1 GP-3200 Series ....................3-2 3.2 GP-3300 Series ....................3-3 3.3 GP-3400 Series ....................3-7 3.4 GP-3500 Series .................... 3-10 3.5 GP-3600 Series .................... 3-14 3.6 GP-3700 Series .................... 3-17 Chapter 4 Specifications 4.1 GP-3200 Series ....................4-2 4.1.1 General Specifications ..................4-2 4.1.2 Performance Specifications ..................4-4 4.1.3 Interface Specifications ..................4-6...
  • Page 18 Chapter 5 DIO Connector 5.1 DIO Interface (Connector) ................5-2 5.2 Wiring to the DIO Connector................5-6 Chapter 6 FLEX NETWORK Connector 6.1 FLEX NETWORK Specifications ..............6-2 6.1.1 FLEX NETWORK Interface (Connector)...............6-2 6.1.2 Flex Network Data Transfer Settings ..............6-3 6.2 Wiring to the FLEX NETWORK Connector.............
  • Page 19 8.6.2 AGP-35*0T......................8-33 8.6.3 AGP-3500L/3500S, GP-3600/3700 Series ............8-36 Chapter 9 Maintenance 9.1 Cleaning the Display..................9-2 9.2 Periodic Check Points..................9-3 9.3 Replacing the Installation Gasket ..............9-4 9.4 Replacing the Backlight .................. 9-6 ∗ 9.4.1 AGP-35 0T ......................9-6 9.4.2 AGP-3500S......................9-16 9.4.3 AGP-3600T/3650T....................9-20 9.4.4 AGP-3750T ......................9-24...

  • Page 20: Chapter 1 System Design

    System Design 1. AGP-3300*/3301*/3310T/3360T and GP-3200/3400/3500/3600/ 3700 Series 2. AGP-3302* 3. DIO Board Type 4. FLEX NETWORK Board Type 5. CANopen Board Type...
  • Page 21 GP3000 Series Hardware Manual 1.1 AGP-3300∗/3301∗/3310T/3360T and GP-3200/3400/3500/3600/3700 Series The following diagram illustrates the standard range of items that can be connected to AGP-3300∗/3301∗/ 3310T/3360T and GP-3200/3400/3500/3600/3700 Series units. For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection Manual”.
  • Page 22 Chapter 1 System Design RS-232C Cable CA3-CBL232/5M-01 Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01 Host Controller Omron PLC SYSMAC Link Cable PLC etc. CA3-CBLSYS-01 Mitsubishi PLC Q-Series Connection Cable CA3-CBLQ-01 (12) Siemens TTY Converter Cable CA6-CBLTTY/5M-01 RS-232C Cable RS-232C CA3-CBL232/5M-01 Isolation Unit CA3-ISO232-01 Mitsubishi PLC Q-Series Link Cable Switch setting...
  • Page 23 GP3000 Series Hardware Manual (10) MPI Cable ST03-A2B-MPI21-PFE Mitsubishi PLC FX-Series Connection Cable (11) CA3-CBLFX/1M-01 CA3-CBLFX/5M-01 (11) Mitsubishi PLC A-Series Connection Cable CA3-CBLA-01 Host Controller PLC etc. RS-422 Cable CA3-CBL422/5M-01 COM Port RS-422 Cable Conversion CA3-CBL422-01 Adapter CA3-ADPCOM-01 (11) 2 Port...
  • Page 24 Chapter 1 System Design RS-422 Cable CA3-CBL422-01 (11) Host Controller PLC etc. 2 Port Adapter Cable Mitsubishi PLC A, QnA, CA3-MDCB11 FX Series' 2 Port Adapter II GP070-MD11 Multi-Link Cable CA3-CBLMLT-01 Terminal Block RS-422 Cable Conversion Adapter (Prepared by user) CA3-ADPTRM-01 (10) Siemens COM Port...
  • Page 25 GP3000 Series Hardware Manual RS-422 Cable CA3-CBL422-01 RS-485 Isolation Unit (11) CA3-ISO485-01 Host Controller PLC etc. Switch setting 2 Port Adapter Cable Mitsubishi PLC A, QnA, :4-wire (RS422) CA3-MDCB11 FX Series' 2 Port Adapter II GP070-MD11 Multi-Link Cable CA3-CBLMLT-01 Terminal Block...
  • Page 26 (2)USB Host Interface (3)CF Card Interface Not available with GP-3200 series For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/ otasuke/). You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site “Otasuke Pro!”...
  • Page 27 GP3000 Series Hardware Manual 1.2 AGP-3302∗ The following diagram illustrates the standard range of items that can be connected to AGP-3302∗ units. For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection Manual”. GP RUN Mode Peripherals...
  • Page 28 Chapter 1 System Design RS-232C Cable RS-232C CA3-CBL232/5M-01 Isolation Unit CA3-ISO232-01 Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01 Switch setting RS-232C Omron PLC SYSMAC Link Cable CA3-CBLSYS-01 Host Controller PLC etc. Mitsubishi PLC Q-Series Connection Cable CA3-CBLQ-01 Siemens TTY Converter Cable CA6-CBLTTY/5M-01 RS-422 Cable RS-232C...

  • Page 29: Gp-3200 Series

    GP3000 Series Hardware Manual MPI Cable ST03-A2B-MPI21-PEE Mitsubishi PLC FX-Series Connection Cable CA3-CBLFX/1M-01 CA3-CBLFX/5M-01 Mitsubishi PLC A-Series Connection Cable CA3-CBLA-01 Host Controller PLC etc. RS-422 Cable CA3-CBL422/5M-01 COM Port RS-422 Cable Conversion CA3-CBL422-01 Adapter CA3-ADPCOM-01 2 Port Adapter Cable Mitsubishi PLC A , QnA,...
  • Page 30 (Commercial type) GP Interfaces (1) USB Host Interface *1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/otasuke/). You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site “Otasuke Pro!” (C)] command.
  • Page 31 GP3000 Series Hardware Manual 1.3 DIO Board Type GP Unit DIO Connector CA6-DIOCNALL-01 DIO Cable Various parts including I/O Unit, Indicator, LED, Sensor, Switch, etc. (Prepared by the user) GP Interfaces (1) DIO Interface 1.4 FLEX NETWORK Board Type FLEX NETWORK...
  • Page 32 GP Interface (1) CANopen Interface *1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/otasuke/). You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site “Otasuke Pro!” (C)] command.
  • Page 33 GP3000 Series Hardware Manual 1-14...

  • Page 34: Chapter 2 Accessories

    Accessories 1. Accessories 2. Optional Item for the DIO Board Type 3. Optional Items for the FLEX NETWORK Board Type 4. Optional Item for the CANopen Board Type This chapter describes peripheral devices that can be connected to GP Series units.

  • Page 35: Serial Interface Item

    GP3000 Series Hardware Manual 2.1 Accessories All accessories listed here are produced by Pro-face. Serial Interface Item 2.1.1 Product Name Model No. Description Connects Mitsubishi PLC A-Series (or RS-232C Cable CA3-CBL232/5M-01 (5m) other host controller) to the AGP. (RS- 232C) Connects a host controller to the GP.

  • Page 36: Usb Host Interface

    Can be used to transfer project data created with the Screen Editor via a serial interface. *1 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/ otasuke/). You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu-[Connect to Support Site “Otasuke Pro!”...

  • Page 37: Cf Card Items

    GP3000 Series Hardware Manual CF Card Items 2.1.3 (GP-3200 series and AGP-3302B are not available) Product Name Model No. Description CF Card (128MB) CA3-CFCALL/128MB-01 CF Card (256MB) CA3-CFCALL/256MB-01 CF Card (512MB) CA3-CFCALL/512MB-01 Inserted into the GP unit’s CF Card slot.

  • Page 38: Maintenance Items

    Chapter 2 Accessories 2.1.5 Maintenance Items Product Name Model No. Corresponding GP Description Used to install the GP into a Installation Fastener CA3-ATFALL-01 GP3000 Series solid panel. ST400-WP01 GP-3200 Series CA3-WPG6-01 GP-3300 Series CA5-WPG8-01 GP-3400 Series Provides dust and moisture Installation Gasket...

  • Page 39: Expansion Unit

    GP3000 Series Hardware Manual 2.1.6 Expansion Unit Corresponding Product Name Model No. Description VM Unit is a unit (4ch, 32,000 colors) for display AGP-35*0T GP2000-VM41 and capture of the video image. Attaching AGP-36*0T Analog RGB input/output (1ch each). VM Unit...

  • Page 40: Optional Item For The Dio Board Type

    Chapter 2 Accessories 2.2 Optional Item for the DIO Board Type 2.2.1 Maintenance Items Product Name Model No. Description Connector attached to the DIO interface. Connects an DIO Connector CA6-DIOCNALL-01 external I/O device. (Set of 5 connectors) 2.3 Optional Items for the FLEX NETWORK Board Type 2.3.1 I/O Units Product Name...

  • Page 41: Analog Units

    GP3000 Series Hardware Manual 2.3.2 Analog Units Product Name Model No. Description FLEX NETWORK 2-Channel Converts 2-channel analog signals to digital FN-AD02AH41 Analog/Digital Conversion Input Unit signals at 12-bit resolution. FLEX NETWORK 2-Channel Converts 2-channel 12-bit digital signal to Digital/Analog Conversion Output FN-DA02AH41 analog signal and sends output.

  • Page 42: Maintenance Items

    Chapter 2 Accessories 2.3.6 Maintenance Items Product Name Model No. Description Connector attached to the FLEX NETWORK interface. Connects the FLEX FLEX NETWORK Connector CA6-FNCNALL-01 NETWORK communication cable. (Set of 5 connectors) Connects the FLEX NETWORK single- Single-Axis Teaching Loader Cable FN-LD10CBL (5m) axis positioning unit and the single-axis teaching loader.
  • Page 43 GP3000 Series Hardware Manual 2-10...

  • Page 44: Chapter 3 Part Names And Functions

    Part Names and Functions 1. GP-3200 Series 2. GP-3300 Series 3. GP-3400 Series 4. GP-3500 Series 5. GP-3600 Series 6. GP-3700 Series This chapter describes the GP’s part name and functions of each part.

  • Page 45: Gp-3200 Series

    GP3000 Series Hardware Manual 3.1 GP-3200 Series A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution. Indicates Normal operation (power is Green ON ON.) or OFFLINE operation.
  • Page 46 Chapter 3 Part Names and Functions 3.2 GP-3300 Series A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution. (The logic program is disabled in the AGP-3302B/3301L/3301S.

  • Page 47: Flex Network Interface (Connector)

    GP3000 Series Hardware Manual D: Ethernet Interface (10BASE-T/100BASE-TX) The Ethernet transmission interface (10BASE-T/ 100BASE-TX). An RJ-45 type modular jack connector (8-pole) is used. The LED turns on or off to indicate the current status. (Except AGP-3301*/AGP-3302B) Indicates DIO board type...
  • Page 48 Chapter 3 Part Names and Functions M: Serial Interface (COM2) ∗ ∗ AGP-3300 /3301 /3310T/3360T: RS422/RS485 serial interface. D-sub 9-pin socket type connector. ∗ AGP-3302 RS422 serial interface. D-sub 9-pin plug type connector. N: CF Card Cover The CF Card I/F and Dip Switches are located in the CF Card Cover open.
  • Page 49 GP3000 Series Hardware Manual S: Speaker Output Interface This interface connects a speaker. Use for mini jack connector (Φ3.5 mm). (AGP-3310T/3360T only) • The following are parts for the AGP-3310T/3360T. AGP-3360T AGP-3360T AGP-3360T AGP-3360T Front Rear Bottom Right Side...
  • Page 50 Chapter 3 Part Names and Functions 3.3 GP-3400 Series The following images of an GP-3450T Series unit. A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution.
  • Page 51 GP3000 Series Hardware Manual D: Auxiliary input/output /Voice Output Interface (AUX) This interface is External Reset, Alarm Output, Buzzer Output, and sound output. E: Audio Input Interface (L-IN/MIC) (AGP- 3450T only) This interface connects a microphone. DIO board type Use for mini jack connector (Φ3.5mm).
  • Page 52 Chapter 3 Part Names and Functions O: Ethernet Interface (LAN) The Ethernet transmission interface (10BASE-T/ 100BASE-TX). An RJ-45 type modular jack connector (8-pole) is used. The LED turns on or off to indicate the current status. Indicates Green ON Data transmission available No connection or Bottom Green OFF...
  • Page 53 GP3000 Series Hardware Manual 3.4 GP-3500 Series A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution. Logic execu- Operation tion mode Color Indicator...
  • Page 54 Chapter 3 Part Names and Functions G: Ethernet Interface (LAN) The Ethernet transmission interface (10BASE-T/ 100BASE-TX). An RJ-45 type modular jack connector (8-pole) is used. The LED turns on or off to indicate the current status. Indicates Green ON Data transmission available No connection or subsequent Green OFF transmission failure...
  • Page 55 GP3000 Series Hardware Manual M: CF Card Access LED This lamp light up when CF card is inserted and CF card cover is closed. However, opening the CF card cover, in the CF card while accessing it continues to light up.
  • Page 56 Chapter 3 Part Names and Functions T: Dip Switches1 2 3 4 Function Note Switches CF Card Startup Settings Startup from CF Startup from CF CF Card with startup (Controls unit startup from Card is enabled. Card is disabled. data required. the CF Card.) Forced Transfer Forced Transfer...
  • Page 57 GP3000 Series Hardware Manual 3.5 GP-3600 Series The following images of an AGP- 3650T (AC model) unit. A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution.
  • Page 58 This interface is External Reset, Alarm Output, Buzzer Output, and sound output. L: Function Expansion Memory Interface Cover Remove the cover. This is the interface for inserting the function expansion memory that expands Pro-face’s Screen Editor’s alarm and text table function.
  • Page 59 GP3000 Series Hardware Manual O: CF Card Cover The CF Card I/F and Dip Switches are located in the CF Card Cover open. This cover must be closed when accessing the CF Card. P: Audio Input Interface (L-IN/MIC) (AGP-3650T only) This interface connects a microphone.
  • Page 60 Chapter 3 Part Names and Functions 3.6 GP-3700 Series The following images of an AGP-3750 (AC model) unit. A: Status LED This LED indicates the GP’s status, e.g. power input, firmware RUN status or backlight condition. Also, indicates the status of logic program execution.
  • Page 61 GP3000 Series Hardware Manual E: Expansion Unit Interface 1 Connects expansion units with communication features. F: VM Unit Interface The interface which connects the expansion unit which is a kind of Display manufactured by Pro- face. G: Auxiliary input/output /Voice Output...
  • Page 62 Chapter 3 Part Names and Functions N: Serial Interface (COM1) RS232C/RS422/RS485 serial interface. D-sub 9-pin plug type connector. Communication method is switched via software. O: Serial Interface (COM2) RS422/RS485 serial interface. D-sub 9-pin socket type connector. P: Dip Switches 2 3 4 Function Note Switches...
  • Page 63 GP3000 Series Hardware Manual 3-20...
  • Page 64 Specifications 1. GP-3200 Series 2. GP-3300 Series 3. GP-3400 Series 4. GP-3500 Series 5. GP-3600 Series 6. GP-3700 Series This chapter describes the general, functional and interface specifications of the GP as well as its dimensions.

  • Page 65: General Specifications

    GP3000 Series Hardware Manual 4.1 GP-3200 Series 4.1.1 General Specifications Electrical Specifications Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage Drop 2ms (max.) Power Consumption 13W (max.) In-Rush Current 60A (max.) AC1000V 20mA for 1 minute Voltage Endurance (between charging and FG terminals) DC500V 10MΩ...

  • Page 66: Structural Specifications

    Chapter 4 Specifications Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Structure Feature size: All-in-one Installation configuration: Panel embedding Cooling Method Natural air circulation...

  • Page 67: Performance Specifications

    GP3000 Series Hardware Manual 4.1.2 Performance Specifications Performance Specifications Internal Memory FLASH EPROM 6MB SRAM 320KB Backup Data Used lithium battery for backup memory COM1: RS232C/RS422/RS485 Asynchronous Transmission: Data Length: 7 bit/8 bit Serial Parity: none, Odd or Even Interface Stop Bit: 1bit/2bit Data transmission Speed: 2400bps to 115.2 kbps...

  • Page 68: Display Specifications

    Chapter 4 Specifications Display Specifications AGP-3200A AGP-3200T Display Type Monochrome Amber/Red LCD TFT Color LCD Resolution W320 X H240 pixels Dot pitch W0.24mm[0.01in] X H0.24mm[0.01in] Effective Display Area W78.8mm[3.10in] X H59.6mm[2.35in] Black and White 256 Colors (No blink) Color/Shade level (8 Shades) 64 Colors (Enables blink feature) Amber/Red LED...

  • Page 69: Interface Specifications

    GP3000 Series Hardware Manual 4.1.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 70 Chapter 4 Specifications In the case of RS232C RS232C Pin No. Arrangement Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready Signal Ground DR(DSR) Input Data Set Ready RS(RTS) Output Request to Send CS(CTS)

  • Page 71: Dimensions

    GP3000 Series Hardware Manual 4.1.4 Dimensions The following dimensions apply to all GP-3200 Series units. External Dimensions Unit: mm[in.] 118[4.65] 40[1.57] 130[5.12] 5[0.20] Side Front...
  • Page 72 Chapter 4 Specifications Installation Fasteners Attached Dimensions Unit: mm[in.] 118[4.65] 139.3[5.48] 40[1.57] 5[0.20] 130[5.12] Left side Front Right side Bottom...
  • Page 73 GP3000 Series Hardware Manual Cable Attached Dimensions Unit: mm[in.] 83[3.27] 83[3.27] Right side Rear Left side Bottom • All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used.
  • Page 74 Chapter 4 Specifications Panel Cut Dimensions Unit: mm[in.] +0.04 [4.67 118.5 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 5.0[0.20] Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-11...

  • Page 75: General Specifications

    GP3000 Series Hardware Manual 4.2 GP-3300 Series 4.2.1 General Specifications Electrical Specifications AGP-3300∗/3301∗/3310T/3360T AGP-3302∗ Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage Drop 5ms (max.) 10ms (max.) Power Consumption 26W (max.) 18W (max.) In-Rush Current 30A (max.) AC1000V 20mA for 1 minute...

  • Page 76: Dimensions

    Chapter 4 Specifications Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) • GP-3300 Series, except AGP-3300U Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Feature size: All-in-one Installation configuration: Panel embedding Structure...

  • Page 77: Performance Specifications

    GP3000 Series Hardware Manual 4.2.2 Performance Specifications Performance Specifications GP-3300 Series (except AGP-3310T/3360T) ∗ ∗ AGP-3300 AGP-3301 AGP-3302B Internal Memory FLASH EPROM 6MB SRAM 320KB SRAM 128KB Backup Data Use lithium battery for backup memory COM1: RS232C COM1: RS232C/RS422/RS485 Asynchronous Transmission...
  • Page 78 Chapter 4 Specifications • When the message “RAAA051 Low battery” is displayed, supply power to the display unit and fully charge the battery. The battery charges within 24 hours to a level which allows backup operation. Completing a full charge requires about 96 hours (4 days). •...
  • Page 79 GP3000 Series Hardware Manual AGP-3310T/3360T AGP-3310T AGP-3360T Internal Memory FLASH EPROM 8MB SRAM 320KB Backup Data Use lithium battery for backup memory COM1: RS232C/RS422/RS485 Asynchronous Transmission: Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data transmission Speed: 2400bps to 115.2 kbps...
  • Page 80 Chapter 4 Specifications • When the message “RAAA051 Low battery” is displayed, supply power to the display unit and fully charge the battery. The battery charges within 24 hours to a level which allows backup operation. Completing a full charge requires about 96 hours (4 days). •...
  • Page 81 GP3000 Series Hardware Manual Display Specifications AGP-3300L AGP-3300S AGP-3310T AGP-3302B AGP-3300T AGP-3300U AGP-3301L AGP-3301S AGP-3360T Blue-mode TFT Color LCD Monochrome Display Type Monochrome STN Color LCD TFT Color LCD (Ultra lumi- TFT Color LCD nance) W640 X H480 Resolution W320 X H240 pixels pixels W0.18mm[0.007in]...

  • Page 82: Interface Specifications

    Chapter 4 Specifications 4.2.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 83 GP3000 Series Hardware Manual AGP-3300∗/3301∗/3310T/3360T Serial Interfaces (COM1) This interface is used to connect an RS232C/RS422/RS485 cable. D-sub 9-pin plug connector is used. <GP unit side> GP Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40(UNC) <Cable side> Recommended Cable Connector XM2D-0901 <OMRON Co.>...
  • Page 84 Chapter 4 Specifications Serial Interface (COM2) This interface is used to connect an RS422/RS485 serial cable. A D-sub 9-pin socket connector is used. • Always connect close to the GP unit's COM port when terminating with the termination pins (TRMRX/TRMTX). <GP unit side>...
  • Page 85 GP3000 Series Hardware Manual AGP-3302 Serial Interface (COM1) This interface is used to connect an RS232C serial cable. A D-sub 9-pin plug connector is used. <GP unit side> GP Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40(UNC) <Cable side> Recommended Cable Connector XM2D-0901 <OMRON Co.>...
  • Page 86 Chapter 4 Specifications Serial Interface (COM2) This interface is used to connect an RS422 serial cable. A D-sub 9-pin plug connector is used. <GP unit side> GP Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40(UNC) <Cable side> Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.>...

  • Page 87: Dimensions

    GP3000 Series Hardware Manual 4.2.4 Dimensions The following dimensions apply to GP-3300 Series units. External Dimensions Dimensions are the same for AGP-3300*/3301*/3302B/3310T/3360T models. Unit: mm[in.] 155.5[6.12] AGP-3300T 59.5[2.34] 167.5[6.59] 5[0.20] Front Side 155.5[6.12] AGP-3360T 59.5[2.34] 167.5[6.59] 5[0.20] Front Side 4-24...
  • Page 88 Chapter 4 Specifications Installation Fasteners Attached Dimensions Dimensions are the same for AGP-3300*/3301*/3302B/3310T/3360T models. Unit: mm[in.] 65[2.56] 65[2.56] AGP-3300T 59.5[2.34] 5[0.20] 167.5[6.59] Front Side Bottom 50[1.97] 50[1.97] 65[2.56] 65[2.56] AGP-3360T 59.5[2.34] 167.5[6.59] 5[0.20] Side Front 50[1.97] 50[1.97] Bottom 4-25...
  • Page 89 GP3000 Series Hardware Manual Cable Attached Dimensions GP-3300 dimensions with cable connected differ between AGP-3300*/3301*/3302 and AGP-3310T/3360T. AGP-3300*/3301*/3302* Unit: mm[in.] AGP-3301∗/3302B Series units are not equipped with an Ethernet interface. Front [0.51] [1.14] DIO Connector, FLEX NETWORK Connector or CANopen [0.94]...
  • Page 90 Chapter 4 Specifications Unit:mm[in.] Rear Power Connector 30[1.18] Pin terminal Bottom Cable [1.38] • Depending on the type of connection cable used the dimensions shown above will change. The dimensions given here are representative values and are intended for reference only. 4-27...
  • Page 91 GP3000 Series Hardware Manual AGP-3310T/3360T Unit:mm[in.] 11 [0.43] 74 [2.91] Left side Rear Right side (The figures show the AGP-3360T) Bottom • Depending on the type of connection cable used the dimensions shown above will change. The dimensions given here are representative values and are intended for reference only.
  • Page 92 Chapter 4 Specifications Panel Cut Dimensions Unit: mm[in.] +0.04 [6.14 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 5.0[0.20] Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-29...

  • Page 93: General Specifications

    GP3000 Series Hardware Manual 4.3 GP-3400 Series 4.3.1 General Specifications Electrical Specifications GP-3400 Series Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage 10ms (max.) Power Consumption 28W (max.) In-Rush Current 30A (max.) AC1000V 20mA for 1 minute Voltage Endurance (between charging and FG terminals) DC500V 10MΩ...

  • Page 94: Dimensions

    Chapter 4 Specifications Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Structure Feature size: All-in-one Installation configuration: Panel embedding Cooling Method Natural air circulation...

  • Page 95: Performance Specifications

    Power Supply Voltage: DC5V Interface Output Current: 500mA(max.) Communication Distance:5m(max.) Function Expansion For Pro-face’s Function Expansion Memory mounting (on internal circuit board) Memory “8.6 Installation and Removal of Function Expansion Memory” (page 8-31) Interface CF Card Compact Flash CF Card Slot (TYPE-II) Interface NTSC: 59.9Hz...
  • Page 96 Chapter 4 Specifications Variable Area 64 KB SRAM (uses lithium battery) Program Area 132 KB FLASH EPROM User active capacity. The GP’s internal clock has a slight error. At normal operating temperatures and conditions, with the GP operating from its lithium battery, the degree of error is 65 seconds per month. Variations in operating conditions and battery life can cause this error to vary from -380 to +90 seconds per month.
  • Page 97 GP3000 Series Hardware Manual Display Specifications AGP-3400S AGP-3400T AGP-3450T Display Type STN Color LCD TFT Color LCD Resolution W640 X H480 pixels Dot pitch W0.237mm[0.01in] X H0.237mm[0.01in] Effective Display Area W153.7mm[6.05in] X H115.8mm[4.56in] 65,536 Colors (No blink) Color/Shade level 4,096 Colors...

  • Page 98: Interface Specifications

    Chapter 4 Specifications 4.3.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 99 GP3000 Series Hardware Manual In the case of RS232C RS232C Pin No. Arrangement Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready Signal Ground DR(DSR) Input Data Set Ready...
  • Page 100 Chapter 4 Specifications Serial Interface (COM2) This interface is used to connect an RS422/RS485 serial cable. A D-sub 9-pin socket connector is used. • Always connect close to the GP unit's COM port when terminating with the termination pins (TRMRX/TRMTX). <GP unit side>...
  • Page 101 GP3000 Series Hardware Manual Sound Output/AUX Input/Output Interface This interface is used for external reset, alarm output, buzzer output or sound output. <Cable side> Applicable Connector S2L3.5/12/90F <made by Weidmuller> Pin Arrangement Pin# Signal Name Direction Meaning RESET IN_A Input...

  • Page 102: Dimensions

    Chapter 4 Specifications 4.3.4 Dimensions The following dimensions apply to all GP-3400 Series units. The dimensions of the AGP-3400∗ are the same. The following drawings show the AGP-3450T. External Dimensions Unit: mm[in.] 204[8.03] 215[8.46] 60[2.36] 5[0.20] Front Right side 4-39...
  • Page 103 GP3000 Series Hardware Manual Installation Fasteners Attached Dimensions Unit: mm[in.] 204[8.03] 83[3.27] 83[3.27] 60[2.36] 215[8.46] 5[0.20] Front Right side Left side 83[3.27] 83[3.27] Bottom 4-40...
  • Page 104 Chapter 4 Specifications Cable Attached Dimensions Unit:mm[in.] 40[1.57] 44[1.73] 29[1.14] AUX Connector 20[0.79] Power DIO Connector, Connector FLEX NETWORK 28[1.10] Connector or CANopen Connector 59[2.32] Right side Left side Rear Power Connector Cable Pin terminal Bottom [1.42] (The figure shows the DIO board type unit.) A 20 mm-space is necessary for the DIO/FLEX NETWORK board and a 127 mm-space for the CANopen board type.
  • Page 105 GP3000 Series Hardware Manual Panel Cut Dimensions Unit: mm[in.] 204.5 +1 +0.04 [8.05 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 10.0[0.39] Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-42...

  • Page 106: General Specifications

    Chapter 4 Specifications 4.4 GP-3500 Series 4.4.1 General Specifications Electrical Specifications DC model AC model Input Voltage DC24V AC100 to 240V Rated Voltage DC19.2 to 28.8V AC85 to 265V Rated frequency 50/60Hz Rated frequency range 40 to 72Hz Shorter than 1cycle Allowable Voltage 10ms or less (Voltage drop interval must be...
  • Page 107 GP3000 Series Hardware Manual Environmental Specifications Surrounding Air 0 to 50°C Temperature Storage Temperature -20 to +60°C 10 to 90% RH Ambient Humidity (Wet bulb temperature: 39°C max. - no condensation.) 10 to 90% RH Storage Humidity (Wet bulb temperature: 39°C max. - no condensation.) Dust 0.1mg/m...
  • Page 108 Chapter 4 Specifications Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Structure Feature size: All-in-one Installation configuration: Panel embedding Cooling Method Natural air circulation...

  • Page 109: Performance Specifications

    USB Host Power Supply Voltage: DC5V Interface Output Current: 500mA(max.) Communication Distance:5m(max.) For Pro-face’s Function Expansion Memory mounting For Pro-face’s Function Expansion Memory mounting Function (Inside interface cover) (on internal circuit board) Expansion Memory “8.6 Installation and “8.6 Installation and Removal of Function...
  • Page 110 Chapter 4 Specifications Variable Area 64 KB SRAM (uses lithium battery) Program Area 132 KB FLASH EPROM User active capacity. The GP’s internal clock has a slight error. At normal operating temperatures and conditions, with the GP operating from its lithium battery, the degree of error is 65 seconds per month. Variations in operating conditions and battery life can cause this error to vary from -380 to +90 seconds per month.
  • Page 111 GP3000 Series Hardware Manual Display Specifications AGP-3500T AGP-3510T AGP-3500L AGP-3500S AGP-3550T AGP-3560T Display Type Monochrome LCD STN Color LCD TFT Color LCD Resolution W640 X H480 pixels W800 X H600 pixels W0.264mm[0.01in] X Dot pitch W0.33mm[0.01in] X H0.33mm[0.01in] H0.264mm[0.01in] W216.0mm[8.5in] X W215.2mm[8.43in] X...
  • Page 112 Chapter 4 Specifications 4.4.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 113 GP3000 Series Hardware Manual In the case of RS232C RS232C Pin No. Arrangement Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready Signal Ground DR(DSR) Input Data Set Ready...
  • Page 114 Chapter 4 Specifications <Cable side> Recommended Cable Connector XM2A-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.> (#4-40 UNC) RS422/RS485 Pin No. Arrangement Signal Name Direction Meaning Termination TRMRX (Receiver side: 100Ω) Input Receive Data A(+) Output Send Data A(+) RS(RTS)
  • Page 115 GP3000 Series Hardware Manual Sound Output/AUX Input/Output Interface This interface is used for external reset, alarm output, buzzer output or sound output. <Cable side> AGP-35*0T: S2L3.5/12/90F <made by Weidmuller> Applicable Connector AGP-3500L/AGP-3500S: S2L3.5/12/180F <made by Weidmuller> Pin Arrangement Pin# Signal Name...

  • Page 116: Dimensions

    Chapter 4 Specifications 4.4.4 Dimensions The following dimensions apply to all GP-3500 Series units. External Dimensions AGP-35*0T Unit: mm[in.] 258.5[10.18] 57[2.24] 270.5[10.65] 5[0.20] Front Right side AGP-3500L/AGP-3500S Unit: mm[in.] 301[11.85] 313[12.32] 56[2.20] 5[0.20] Front Right side 4-53...
  • Page 117 GP3000 Series Hardware Manual Installation Fasteners Attached Dimensions AGP-35*0T Unit: mm[in.] 258.5[10.18] 110[4.33] 110[4.33] 270.5[10.65] 57[2.24] 5[0.20] Front Left side Right side 110[4.33] 110[4.33] Bottom 4-54...
  • Page 118 Chapter 4 Specifications AGP-3500L/AGP-3500S Unit: mm[in.] 301[11.85] 130[5.12] 130[5.12] 313[12.32] 56[2.20] 5[0.20] Front Right side Left side 130[5.12] 130[5.12] Bottom 4-55...
  • Page 119 GP3000 Series Hardware Manual Cable Attached Dimensions AGP-35*0T Unit:mm[in.] Connector, FLEX NETWORK Connector or CANopen Connector 28[1.10] 59[2.32] Left side Right side Rear AUX Connector Power Connector 8.4[0.33] Bottom The DC type unit has the power (The figure shows the DIO board type unit.) supply terminals shown above.
  • Page 120 Chapter 4 Specifications AGP-3500L/AGP-3500S Unit:mm[in.] Connector, FLEX NETWORK Connector or CANopen Connector 12.7[0.50] 10[0.39] Connector 28 [1.10] Left side Rear Right side 59[2.32] AUX Connector 8.4[0.33] Cable Bottom The DC type unit has the (The figure shows the DIO board type unit.) power supply terminals shown above.
  • Page 121 GP3000 Series Hardware Manual Panel Cut Dimensions AGP-35*0T Unit: mm[in.] 259 +1 +0.04 [10.20 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 10.0[0.39] AGP-3500L/AGP-3500S Unit: mm[in.] 301.5 +1 +0.04 [11.87 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 10.0[0.39]...
  • Page 122 Chapter 4 Specifications Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-59...
  • Page 123 GP3000 Series Hardware Manual 4.5 GP-3600 Series 4.5.1 General Specifications Electrical Specifications DC model AC model Input Voltage DC24V AC100 to 240V Rated Voltage DC19.2 to 28.8V AC85 to 265V Rated frequency 50/60Hz Rated frequency range 40 to 72Hz Shorter than 1cycle...
  • Page 124 Chapter 4 Specifications Environmental Specifications Surrounding Air 0 to 50°C Temperature Storage Temperature -20 to +60°C 10 to 90% RH Ambient Humidity (Wet bulb temperature: 39°C max. - no condensation.) 10 to 90% RH Storage Humidity (Wet bulb temperature: 39°C max. - no condensation.) Dust 0.1mg/m and below (non-conductive levels)
  • Page 125 GP3000 Series Hardware Manual Structural Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Structure...

  • Page 126: Performance Specifications

    Connector: modular jack connector (RJ-45) Expansion Unit Connects the communication unit Interface VM Unit Interface Connects the VM unit / DVI Input unit manufactured by Pro-face. Conforms to USB1.1.(TYPE-A conn.) x 2 ± Power Supply Voltage: DC5V USB Host Interface Output Current: 500mA(max.)
  • Page 127 GP3000 Series Hardware Manual Variable Area 64 KB SRAM (uses lithium battery) Program Area 132 KB FLASH EPROM User active capacity. The GP’s internal clock has a slight error. At normal operating temperatures and conditions, with the GP operating from its lithium battery, the degree of error is 65 seconds per month.
  • Page 128 Chapter 4 Specifications Display Specifications AGP-3600T AGP-3650T Display Type TFT Color LCD Resolution W800 X H600 pixels Dot pitch W0.3075mm[0.01in] X H0.3075mm[0.01in] Effective Display Area W248mm [9.76in] X H186.5mm[7.34in] 65,536 Colors (No blink) Color/Shade level 16,384 Colors (Enables blink feature) Backlight CCFL Brightness control...

  • Page 129: Interface Specifications

    GP3000 Series Hardware Manual 4.5.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 130 Chapter 4 Specifications In the case of RS232C RS232C Pin No. Arrangement Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready Signal Ground DR(DSR) Input Data Set Ready RS(RTS) Output Request to Send CS(CTS)
  • Page 131 GP3000 Series Hardware Manual <Cable side> Recommended Cable Connector XM2A-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.> (#4-40 UNC) RS422/RS485 Pin No. Arrangement Signal Name Direction Meaning Termination TRMRX (Receiver side: 100Ω) Input...
  • Page 132 Chapter 4 Specifications Sound Output/AUX Input/Output Interface This interface is used for external reset, alarm output, buzzer output or sound output. <Cable side> Applicable Connector S2L3.5/12/180F <made by Weidmuller> Pin Arrangement Pin# Signal Name Direction Meaning RESET IN_A Input External Reset Input RESET IN_B Input RUN+...

  • Page 133: Dimensions

    GP3000 Series Hardware Manual 4.5.4 Dimensions The following dimensions apply to all GP-3600 Series units. The dimensions of the AGP-3600∗ are the same. The following drawings show the AGP-3650T. External Dimensions Unit: mm[in.] 301[11.85] 56[2.20] 313[12.32] 5[0.20] Front Right side...
  • Page 134 Chapter 4 Specifications Installation Fasteners Attached Dimensions Unit: mm[in.] 301[11.85] 130[5.12] 130[5.12] 313[12.32] 56[2.20] 5[0.20] Left side Front Right side 130[5.12] 130[5.12] Bottom 4-71...
  • Page 135 GP3000 Series Hardware Manual Cable Attached Dimensions Unit:mm[in.] Connector, FLEX NETWORK Connector or CANopen Connector 12.7[0.50] 10[0.39] Connector 28 [1.10] 59[2.32] Right side Rear Left side AUX Connector 8.4[0.33] Cable Bottom The DC type unit has the (The figure shows the DIO board type unit.) power supply terminals shown above.
  • Page 136 Chapter 4 Specifications Panel Cut Dimensions Unit: mm[in.] 301.5 +1 +0.04 [11.87 4-R3 [0.12] or less Panel thickness area 1.6[0.06] to 10.0[0.39] Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-73...
  • Page 137 GP3000 Series Hardware Manual 4.6 GP-3700 Series 4.6.1 General Specifications Electrical Specifications DC model AC model Input Voltage DC24V AC100 to 240V Rated Voltage DC19.2 to 28.8V AC85 to 265V Rated frequency 50/60Hz Rated frequency range 40 to 72Hz Shorter than 1cycle...
  • Page 138 Chapter 4 Specifications Environmental Specifications Surrounding Air 0 to 50°C Temperature Storage Temperature -20 to +60°C 10 to 90% RH Ambient Humidity (Wet bulb temperature: 39°C max. - no condensation.) 10 to 90% RH Storage Humidity (Wet bulb temperature: 39°C max. - no condensation.) Dust 0.1mg/m and below (non-conductive levels)
  • Page 139 GP3000 Series Hardware Manual Structurel Specifications Grounding resistance of 100Ω 2mm or thicker wire, or your country’s Grounding applicable standard. (Same for FG and SG terminals) Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface at panel embedding) Structure...

  • Page 140: Performance Specifications

    Interface Connector: modular jack connector (RJ-45) Expansion Connects the communication unit Unit Interface VM Unit Connects the VM unit / DVI Input unit manufactured by Pro-face. Interface Conforms to USB1.1.(TYPE-A conn.) x 2 ± USB Host Power Supply Voltage: DC5V Interface Output Current: 500mA(max.)
  • Page 141 GP3000 Series Hardware Manual Variable Area 64 KB SRAM (uses lithium battery) Program Area 132 KB FLASH EPROM User active capacity. The GP’s internal clock has a slight error. At normal operating temperatures and conditions, with the GP operating from its lithium battery, the degree of error is 65 seconds per month.
  • Page 142 Chapter 4 Specifications Display Specifications AGP-3750T Display Type TFT Color LCD Resolution W1024 X H768 pixels Dot pitch W0.297mm[0.01in] X H0.297mm[0.01in] Effective Display Area W306.2mm[12.06in] X H230.1mm[9.06in] 65,536 Colors (No blink) Color/Shade level 16,384 Colors (Enables blink feature) Backlight CCFL Brightness control 8 levels of adjustment available via touch panel Contrast Adjustment...
  • Page 143 GP3000 Series Hardware Manual 4.6.3 Interface Specifications This section describes the specifications of each interface of the GP Series unit. • For instructions on how to connect to other devices, always refer to the “GP-Pro EX Device/PLC Connection Manual”. • Always connect the #5 SG (Signal Ground) of the GP unit to the connected device, especially if the connected device is also not isolated.
  • Page 144 Chapter 4 Specifications In the case of RS232C RS232C Pin No. Arrangement Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready Signal Ground DR(DSR) Input Data Set Ready RS(RTS) Output Request to Send CS(CTS)
  • Page 145 GP3000 Series Hardware Manual <Cable side> Recommended Cable Connector XM2A-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.> (#4-40 UNC) RS422/RS485 Pin No. Arrangement Signal Name Direction Meaning Termination TRMRX (Receiver side: 100Ω) Input...
  • Page 146 Chapter 4 Specifications Sound Output/AUX Input/Output Interface This interface is used for external reset, alarm output, buzzer output or sound output <Cable side> Applicable Connector S2L3.5/12/180F <made by Weidmuller> Pin Arrangement Pin# Signal Name Direction Meaning RESET IN_A Input External Reset Input RESET IN_B Input RUN+...
  • Page 147 GP3000 Series Hardware Manual 4.6.4 Dimensions The following dimensions apply to all GP-3700 Series units. The following drawings show the AGP-3750T. External Dimensions Unit: mm[in.] 383[15.08] 60[2.36] 5[0.20] 395[15.55] Front Right side 4-84...
  • Page 148 Chapter 4 Specifications Installation Fasteners Attached Dimensions Unit: mm[in.] 395[15.55] 383[15.08] 160[6.30] 160[6.30] 60[2.36] 5[0.20] 405[15.94] Front Left side Right side 160[6.3] 165[6.5] Bottom 4-85...
  • Page 149 GP3000 Series Hardware Manual Cable Attached Dimensions Unit: mm[in.] 12.7[0.50] 10[0.39] Connector 10[0.39] Left side Right side 20[0.79] Rear 8.4[0.33] AUX Connector The DC type unit has the power supply terminals Bottom shown above. • All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used.
  • Page 150 Chapter 4 Specifications Installation Fasteners Unit: mm[in.] 16[0.63] 16.6[0.65] 31[1.22] 4-87...
  • Page 151 GP3000 Series Hardware Manual 4-88...
  • Page 152 DIO Connector 1. DIO Interface (Connector) 2. Wiring to the DIO Connector This section explains the interface specifications of the DIO board type unit (model with DIO I/F) and the wir- ing to the DIO Connector.
  • Page 153 This section describes the DIO Connector packaged with the DIO board type unit of the GP3000 series. This connector is an accessory of the GP unit. It is also offered as an optional maintenance item by Pro-face. 2.2 Optional Item for the DIO Board Type (page 2-7) •...
  • Page 154 Chapter 5 DIO Connector Input Specifications Rated Voltage DC 24V Maximum Allowable Voltage DC 28.8V Input Method Source/Sink Input Rated Current 5.7 mA (DC 24V) Input Resistance 4.2 kΩ ON Voltage: DC 15V or more Operation Range OFF Voltage: DC 5V or less OFF to ON: 1.5 ms or less Input Delay Time ON to OFF: 1.5 ms or less...
  • Page 155 GP3000 Series Hardware Manual Output Specifications (Sink type) Rated Voltage DC 24V Rated Voltage Range DC 20.4V to DC 28.8V Output Method Sink Output Maximum Load Voltage 0.2A /point, 0.4A /common Output Voltage Drop 1.5V or less OFF to ON: 1ms or less...
  • Page 156 Chapter 5 DIO Connector Output Specifications (Source type) Rated Voltage DC 24V Rated Voltage Range DC 20.4V to DC 28.8V Output Method Source Output Maximum Load Voltage 0.2A /point, 0.4A /common Output Voltage Drop DC 1.5V or less OFF to ON: 1ms or less Output Delay Time ON to OFF: 1 ms or less Voltage Leakage (when OFF)
  • Page 157 GP3000 Series Hardware Manual 5.2 Wiring to the DIO Connector Be sure to remove the DIO Connector from the GP unit prior to starting wiring. Failure to do so may cause an electric shock. Items Required to Wire Connectors •...
  • Page 158 Chapter 5 DIO Connector The adjacent wire insertion hole (round-shaped hole) will be in an open state. With the slot screwdriver inserted, insert the wire into the wire insertion hole (round-shaped hole). Screwdriver Wire Wire insertion hole (Round-shaped hole) Tool insertion hole (Square-shaped hole) (4) Remove the slot screwdriver from the tool insertion hole (square-shaped hole).
  • Page 159 GP3000 Series Hardware Manual...
  • Page 160 FLEX NETWORK Connector 1. FLEX NETWORK Specifications 2. Wiring to the FLEX NETWORK Connector This section explains the interface and communication specifications of the FLEX NETWORK board type unit (model with FLEX NETWORK I/F) and the wiring to the FLEX NETWORK Connector.
  • Page 161 This section describes the FLEX NETWORK Connector packaged with the FLEX NETWORK board type unit of the GP3000 series. This connector is an accessory of the GP unit. It is also offered as an optional maintenance item by Pro-face. 2.3 Optional Items for the FLEX NETWORK Board Type (page 2-7) •...

  • Page 162: Flex Network Data Transfer Settings

    Chapter 6 FLEX NETWORK Connector 6.1.2 Flex Network Data Transfer Settings Communication Type Connection Method Multi Drop Transfer Distance At 6Mbps 200m per CH, at 12Mbps100m per CH Transfer Method During cyclic period, distributed transmission, Half-duplex Transfer Speed 6Mbps, 12Mbps Transfer I/F Differential method, Pulse transfer resistance Error Check...
  • Page 163 GP3000 Series Hardware Manual 6.2.2 Wiring to the FLEX NETWORK Connector Be sure to remove the FLEX NETWORK Connector from the GP unit prior to starting wir- ing. Failure to do so may cause an electric shock. Remove the wire’s external covering and insert the wire center strand into the opening.

  • Page 164: Chapter 7 Canopen Interface

    CANopen Interface 1. CANopen Specifications This section explains the interface and communication specifications of the CANopen board type unit (model with CANopen I/F).
  • Page 165 This section describes the CANopen Interface packaged with the CANopen board type unit of the GP3000 series. • When you use the CANopen board type unit of the GP3000 series, read this section in conjunc- tion with the specifications of your GP series (Chapter 4).

  • Page 166: Canopen Data Transfer Settings

    Chapter 7 CANopen Interface 7.1 CANopen Specifications 7.1.1 CANopen Interface Connector (GP unit side) XM2C-0942-502L <OMRON Co.> Recommended Cable Connector (Cable side) See page 7-5. Interfit Bracket #4-40 (UNC) Pin Arrangement Signal Name Meaning CAN_L CAN-L bus line CAN_GND CAN ground CAN_H CAN-H bus line (GP Unit Side)

  • Page 167: Canopen Communication Cable And Other Recommended Items

    GP3000 Series Hardware Manual Node 1 Node 2 Node n Diagram 1 Diagram 2 CAN_H Twisted Pair Cable CAN_L CAN_GND LT = Line Termination Diagram 1 Diagram 2 D-sub 9 pin (socket) Shield Shield D-sub 9 pin (socket) Signal Signal...
  • Page 168 Chapter 7 CANopen Interface Model No. Manufacturer Description Recommended XM2D-0901 <OMRON Co.> D-Sub 9-pin socket Cable Connector Straight connector with terminal TSXCANKCDF180T <Schneider Electric> selector switch attached Right angle connector with terminal TSXCANKCDF90T selector switch attached. Only for <Schneider Electric> TSXCANKCDF90TP use for GP-3300 Series’...
  • Page 169 GP3000 Series Hardware Manual...

  • Page 170: Chapter 8 Installation And Wiring

    Installation and Wiring 1. Installation 2. Wiring Precautions 3. CF Card Insertion/Removal 4. USB Cable Clamp Attachment/Removal 5. Attaching the AUX Connector 6. Installation and Removal of Function Expansion Memory...

  • Page 171: Installation

    GP3000 Series Hardware Manual 8.1 Installation This section describes the procedures and precautions for installing the GP Series units. Check the Installation Gasket’s Seating It is strongly recommended that you use the installation gasket, since it absorbs vibration in addition to repelling water.
  • Page 172 Chapter 8 Installation and Wiring Installation Requirements • For easier maintenance, operation, and improved ventilation, be sure to install the GP at least 100 mm [3.94 in.] away from adjacent structures and otherequipment. Unit: mm[in.] 100[3.94] [3.94] 100[3.94] 100[3.94] 100[3.94] 100[3.94] [3.94] •...
  • Page 173 GP3000 Series Hardware Manual • When installing the GP in a slanted panel, the panel face should not incline more than 30°. 30° or less • When installing the GP in a slanted panel, and the panel face inclines more than 30°, the ambient temper- ature must not exceed 40°C.
  • Page 174 Chapter 8 Installation and Wiring Installing the GP (1) Insert the GP into the panel cut, as shown. (2) Insert the installation fasteners into the GP Installation Panel insertion slots, at the left-and-right or top- and-bottom of the unit. (total: 4 slots).Only the AGP-3750T has 8 slot locations.
  • Page 175 GP3000 Series Hardware Manual (3) Insert each of the fasteners shown below. Be sure to pull the fastener back until it is flush with the rear of the attachment hole. (4) Use a Phillips screwdriver to tighten each fastener screw and secure the GP in place.

  • Page 176: Connecting The Power Cord

    Chapter 8 Installation and Wiring 8.2 Wiring Precautions This section describes the procedures and precautions for wiring power cords. 8.2.1 Connecting the Power Cord To avoid an electric shock, prior to connecting the GP unit’s power cord terminals to the power terminal block, confirm that the GP unit’s power supply is completely turned OFF, via a breaker, or similar unit.
  • Page 177 GP3000 Series Hardware Manual When the AC type Power Cord Specifications • Use copper conductors only. AC Power Cord Grounding Wire Double-insulated Wire Power Cord 1.25 to 2.0mm (16-14AWG) 1.25 to 2.0mm (16-14AWG) Recommended J.S.T. Mfg. Co., Ltd J.S.T. Mfg. Co., Ltd...
  • Page 178 When the GP-3500/3600/3700 series is used; FG Grounding Terminal connected to the Power Cord Insertion Holes • The power supply connector (plug) is CA5-DCCNL-01 (made by Pro-face) or GMVSTBW2, 5/ 3-STF-7, 62 (made by Phoenix Contact For details, please contact your local Phoenix Contact distributor.
  • Page 179 GP3000 Series Hardware Manual Wiring When connecting the Power Cord, use the following items when performing wiring. (Items are made by Phoenix Contact.) Recommended Driver SZF 1-0.6x3.5 (1204517) AI 0.75-8GY (3200519) Recommended Pin AI 1-8RD (3200030) Terminals AI 1.5-8BK (3200043) AI 2.5-8BU (3200522)
  • Page 180 Chapter 8 Installation and Wiring When the GP-3500/3600/3700 series is used; (1) Confirm that the power cord is unplugged from the power supply. (2) Remove the power connector (plug) from the main unit. (3) Loosen the three screws in the center of the Power Connector (plug). (4) Strip the sheath of the power cord, twist the wire ends, insert them into the bar terminals.

  • Page 181: Connecting The Power Supply

    GP3000 Series Hardware Manual 8.2.2 Connecting the Power Supply This section describes the precautions for supplying a power voltage. Twisted-pair cord • If the supplied voltage exceeds the GP unit’s range, Constant connect a constant voltage transformer. Voltage Transformer Chapter 4 Specifications (page 4-1) •...

  • Page 182: Grounding

    Chapter 8 Installation and Wiring 8.2.3 Grounding This section describes the precautions for grounding the GP unit. Do not use common grounding, since it can lead to an accident or machine breakdown. (a) Exclusive Grounding (BEST) • When supplying power to the GP unit, be sure to separate the input/output and power lines, as shown.

  • Page 183: Wiring Precautions

    GP3000 Series Hardware Manual 8.2.4 Wiring Precautions To help prevent noise and interference problems, separate all control, communication and power lines by placing them in a separate ducts. Duct for I/O Signal Duct for Control Duct for Power Lines Lines Lines If different wires must be placed in the same duct, separate them with an earthed/grounded divider.

  • Page 184: Installation Precautions

    Chapter 8 Installation and Wiring 8.2.5 Installation Precautions • When you use the DIO/FLEX NETWORK board type unit of the GP3000 series, read the following installation precautions. External power failure or failure of the GP unit may cause abnormal behavior.
  • Page 185 GP3000 Series Hardware Manual Emergency Stop Circuit Do not process emergency stop signals with a software program by inputting the signal to the GP. Configure the emergency stop circuit externally to the GP as shown in the figure below: 100 to 240VAC...
  • Page 186 Chapter 8 Installation and Wiring • After executing an internal program, the GP outputs ON/OFF information to the output devices at the same time. For example, the electromagnetic switches for forward and reverse rotation of a motor are turned on and off at the same time. Consequently, a situation may arise in which both of the main contacts of the motor circuits for the electromagnetic switches for forward and reverse rotation may turn on, causing a short-cir- cuit of the R and T phases.

  • Page 187: Cf Card Insertion/Removal

    Multi Unit, the CF Card’s internal data and the GP unit may be damaged or broken. Be sure to use only CF Cards manufactured by Pro-face. The CF Card’s internal data may be damaged when using another manufacturer’s CF Card.

  • Page 188: Inserting The Cf Card

    Chapter 8 Installation and Wiring 8.3.1 Inserting the CF Card Use the following steps to insert the CF Card in the GP. (1) Pull the CF Card Cover frontward and then open it upward. (2) Insert the CF Card in the CF Card Slot, until the eject button is pushed forward. Eject Button (3) Close the cover.

  • Page 189: Cf Card Handling

    GP3000 Series Hardware Manual 8.3.3 CF Card Handling The CF Card has a data overwrite limit of approximately 100,000 times. Therefore, be sure to back up all CF Card data regularly to another storage media. (100,000 times assumes the overwriting of 500KB of data in DOS format.) Two methods are available for backing up data.

  • Page 190: Usb Cable Clamp Attachment/Removal

    Use the associated USB Cable Clamp: CA5-USBATL-01 (made by Pro-face) b) Use the USB cable with the housing that suits the associated USB Cable Clamp: CA3-USBCB-01 (made by Pro-face) or USB cable with the housing of the same size as CA3-USBCB-01 (If USB cable with a small housing is used, it may not be securely fixed.)
  • Page 191 GP3000 Series Hardware Manual (4) Attach the USB cover to fix the USB cable. Insert the USB cover into the tab of the USB Holder. USB cover • Check the up/down orientation of the USB cover to ensure that the USB cable is secured properly.

  • Page 192: Gp-3300 Series (Except Agp-3310T/3360T)

    Chapter 8 Installation and Wiring 8.4.2 GP-3300 Series (except AGP-3310T/3360T) Attachment (1) Insert the USB holder into the slot in front of the AGP unit’s USB port and pull it down and forward. (2) Pass the band of the USB cable clamp through the bridge of the USB holder. Bridge USB Holder (3) Insert the USB cable into the port.

  • Page 193: Agp-3310T/3360T Units

    GP3000 Series Hardware Manual Removal To remove the clamp from the USB cables, push down on the clamp strap’s clip to release it while pulling up on the clamp. Clip Clamp 8.4.3 AGP-3310T/3360T units Attaching the USB Cable Clip • Watch your fingers, the edge of the clip is sharp.
  • Page 194 • Pass the tie through the head lightly because once it has been tightened it cannot be loosened again. Tighten according to Step 5. • The provided tie can be substituted with the Pro-face made CA8-USBATALL-01 or other com- mercially available items with width: 2.5 mm [0.10in.] and thickness: 1.1 mm [0.04in.].
  • Page 195 GP3000 Series Hardware Manual • Attach the USB cable to the GP unit’s rear face USB socket using the same procedure. Detaching the USB cable (1) Remove the USB cable while pushing the grip section of the clip. • When the clip is removed from the USB cable, cut the tie making sure not to damage the cable.

  • Page 196: Gp-3400/3500/3600/3700 Series

    Chapter 8 Installation and Wiring 8.4.4 GP-3400/3500/3600/3700 Series Attachment (1) Before starting the procedure, orient the two tabs on both sides of the USB Holder in the direction of the arrows in the figure and remove the USB Cover. Tabs (2) Attach the USB Holder to the USB Host Interface part of the main unit.
  • Page 197 GP3000 Series Hardware Manual (4) Attach the USB cover to fix the USB cable. Insert the USB cover into the tab of the USB Holder. GP-3400/3500/3600 Series GP-3700 series USB Holder USB cover In case of installing the second USB cable, repeat the steps (3) and (4).

  • Page 198: Attaching The Aux Connector

    Chapter 8 Installation and Wiring 8.5 Attaching the AUX Connector Be sure to remove the AUX Connector from the GP unit prior to starting wiring. Failure to do so may cause an electric shock. Items Required to Wire Connectors • Screwdriver Recommended type: SDI (Product No.
  • Page 199 GP3000 Series Hardware Manual Wire should be AWG22 to AWG18 thick, and twisted. Applicable wire sizes are UL1015 and UL1007. Be sure to strip from 6.5 to 8.0mm [0.26 to 0.31in.] of cover from the wire. • Be sure to strip only the amount of cover required. If too much cover is removed, the end wires may short against each other, or against an electrode, which can create an electric shock.

  • Page 200: Installation And Removal Of Function Expansion Memory

    Chapter 8 Installation and Wiring 8.6 Installation and Removal of Function Expansion Memory • Models that can mount Function Expansion Memory are as indicated below. • GP-3400 Series • GP-3500 Series • GP-3600 Series • GP-3700 Series Operate after confirming power is not being supplied to the GP. Failure to do so may cause electric shock or device damage.
  • Page 201 GP3000 Series Hardware Manual (2) Remove the retaining screws (4) on the rear cover. Screws Screws GP-3400 Series rear view • Do not let the attachment screws fall inside the GP, or lose them. (3) Open the rear cover by lifting it vertically.

  • Page 202: Agp-35*0T

    Chapter 8 Installation and Wiring (7) Return the rear face cover to the original position, and secure the cover in place using the mounting screws (4). The necessary torque is 0.5N•m. The Function Expansion Memory is not designed to be removed. Do not remove it unless mounting it to another GP.
  • Page 203 GP3000 Series Hardware Manual (2) Remove the retaining screws (6) on the rear cover. Screws Screws GP-35*0T rear view • Do not let the attachment screws fall inside the GP, or lose them. (3) Open the rear cover by lifting it vertically.
  • Page 204 Chapter 8 Installation and Wiring (6) Verify the position of the frame for the installation of the Function Expansion Memory. Frame GP-3500 Series interior (7) Insert the Function Expansion Memory at an angle so it’s base plate locks on to the frame’s tabs. While pushing the Function Expansion Memory in the tab’s direction, connect to the push-in connector.

  • Page 205: Agp-3500L/3500S, Gp-3600/3700 Series

    GP3000 Series Hardware Manual Removal The Function Expansion Memory is not designed to be removed. Do not remove it unless mounting it to another GP. (Insert/remove limit: 10 times) (1) Lay the frame with the lever facing outward. While pushing in the direction of the frame’s tab, lift the Function Expansion Memory.
  • Page 206 Chapter 8 Installation and Wiring (2) Verify the position of the Function Expansion Memory interface cover. Function Expansion Memory interface cover GP-3600 Series rear view • Depending on the series in use, the position of the Function Expansion Memory interface cover will differ, however, the installation method will be the same.
  • Page 207 GP3000 Series Hardware Manual Removal The Function Expansion Memory is not designed to be removed. Do not remove it unless mounting it to another GP. (Insert/remove limit: 10 times) (1) Lay the frame with the lever facing outward. While pushing in the direction of the frame’s tab, lift the Function Expansion Memory.

  • Page 208: Chapter 9 Maintenance

    Maintenance 1. Cleaning the Display 2. Periodic Check Points 3. Replacing the Installation Gasket 4. Replacing the Backlight This chapter explains cautions and inspection criteria that will ensure trouble-free use of the GP.
  • Page 209 GP3000 Series Hardware Manual 9.1 Cleaning the Display When the surface or frame of the display become dirty, soak a soft cloth in water with a neutral detergent, wring the cloth tightly, and wipe the display. • Do not use paint thinner, organic solvents, or a strong acid compound to clean the unit.
  • Page 210 Chapter 9 Maintenance 9.2 Periodic Check Points To keep your GP unit in its best condition, please inspect the following points periodically. GP Operation Environment Is the operating temperature within the allowable range (0ºC to 50ºC)? Is the operating humidity within the specified range (10%RH to 90%RH, dry bulb temperature of 39ºC or less)? Is the operating atmosphere free of corrosive gasses? When using the GP unit inside a panel, the ambient environment refers to the interior of the panel.
  • Page 211 GP3000 Series Hardware Manual 9.3 Replacing the Installation Gasket The installation gasket provides protection against dust and moisture. • A gasket which has been used for a long period of time may have scratches or dirt on it, and could have lost much of its water resistance. Be sure to change the gasket at least once a year, or when scratches or dirt become visible.
  • Page 212 Chapter 9 Maintenance • The gasket must be inserted correctly into the groove for the GP’s moisture resistance to be equivalent to IP65f. • Since the gasket is flexible but not elastic, be careful not to stretch it unnecessarily, as doing so could tear the gasket. •...
  • Page 213 GP3000 Series Hardware Manual 9.4 Replacing the Backlight • The GP-3200/3300/3400’s backlight and AGP-3500L’s backlight cannot be replaced by the user. When the backlight needs to be replaced, please contact your local GP distributor. 9.4.1 AGP-35∗0T • Use the following table to check that you have ordered the correct backlight.
  • Page 214 Chapter 9 Maintenance • If the backlight or the display unit is damaged, the screen display will go out. Even if the screen goes out, however, there is a possibility that the touch panel is still operating correctly. Therefore, since any type of touch panel contact could have an unexpected or dangerous effect or result, be sure not to touch the screen when this condition occurs.
  • Page 215 GP3000 Series Hardware Manual (2) Remove the retaining screws (6) on the rear cover. Screws Screws • Do not let the attachment screws fall inside the GP, or lose them (3) Open the rear cover carefully from the bottom of the unit to the top.
  • Page 216 Chapter 9 Maintenance (6) Disconnect the Backlight Unit cable from the connector on the inverter board, and then remove the cable from the cable clamp. Cable Clamp Cable Connector (7) Remove the hook from the Backlight Unit. Hook (8) Remove the Backlight Unit while sliding it along the groove. Backlight Unit...
  • Page 217 GP3000 Series Hardware Manual (9) Insert a new Backlight Unit while sliding it along the groove. • Be careful that no dust or dirt adheres to the backlight surface or to the backlight holder. • Be careful not to soil the Backlight with moisture, oil content or finger prints;...
  • Page 218 Chapter 9 Maintenance CA6-BLU10T-02 Preparation Please have the following ready beforehand. • Replacement backlight (Model: CA6-BLU10T-02) • One pair of clean (preferably new) cotton gloves. • Phillips screwdriver (no.1:for the attachment of the backlight unit’s one (1) attachment setscrew. no.2:for the attachment of the other mounting screws.) About the Backlight GP units use a CFL, long-life type backlight.
  • Page 219 GP3000 Series Hardware Manual Procedure for replacing the backlight (1) Unplug the power cord from the main power supply. • Remove the GP unit from the equipment to which the unit has been incorporated, and work with the GP unit with the display surface facing downward. Be sure to perform the backlight changeover on a flat, level surface.
  • Page 220 Chapter 9 Maintenance (6) Disconnect the Backlight Unit cable from the connector on the inverter board, and then remove the cable from the cable clamp. Cable Clamp Cable Connector (7) Remove the setscrew from the Backlight Unit. setscrew • Use the Phillips screwdriver No.1. (8) Remove the Backlight Unit while sliding it along the groove.
  • Page 221 GP3000 Series Hardware Manual Backlight Unit (10) Reattach the backlight unit’s setscrew. The necessary torque is 0.196N•m. setscrew • Use the Phillips screwdriver No.1. (11) Insert the Backlight Unit cable to the connector on the inverter board, and the secure the cable with the cable clamp.
  • Page 222 Chapter 9 Maintenance • After backlight replacement is completed, turn the GP unit’s power ON and check if the screen’s display is normal. If the display is not correct, please contact the GP distributor from whom you purchased the backlight unit. 9-15...
  • Page 223 GP3000 Series Hardware Manual 9.4.2 AGP-3500S Preparation Please have the following ready beforehand. • Replacement backlight (Model: PS501S-BU00 (Set of two)) • One pair of clean (preferably new) cotton gloves. • Phillips screwdriver (no.2) About the Backlight GP units use a CFL, long-life type backlight. In a real world situation, the backlight may need to be replaced depending on the GP’s operating environment.

  • Page 224: Replacing The Backlight

    Chapter 9 Maintenance Procedure for replacing the backlight There are two backlight of AGP-3500S. (1) Unplug the power cord from the main power supply. • Remove the GP unit from the equipment to which the unit has been incorporated, and work with the GP unit with the display surface facing downward. Be sure to perform the backlight changeover on a flat, level surface.
  • Page 225 GP3000 Series Hardware Manual (5) Open the circuit board chassis, it’s turn left to right. Circuit board chassis • A hot circuit board chassis can burn you. Be sure the chassis has cooled completely prior to replacing the backlights. (6) Disconnect the Backlight Unit cable from the connector on the inverter board, and then remove the cable from the cable clamp.
  • Page 226 Chapter 9 Maintenance (8) Insert the new lower backlight unit into the backlight holder as shown here. After the backlight is completely inserted and the attachment clip clicks into place, lower the unit into the GP. Backlight Unit • Be careful that no dust or dirt adheres to the backlight surface or to the backlight holder. Be sure to handle the replacement backlight unit carefully, since if can be easily damaged or broken.

  • Page 227: Agp-3600T/3650T

    GP3000 Series Hardware Manual 9.4.3 AGP-3600T/3650T Preparation Please have the following ready beforehand. • Replacement backlight (Model: CA3-BLU12-01) • One pair of clean (preferably new) cotton gloves. • Phillips screwdriver (no.2) About the Backlight GP units use a CFL, long-life type backlight. In a real world situation, the backlight may need to be replaced depending on the GP’s operating environment.
  • Page 228 Chapter 9 Maintenance (2) Remove the retaining screws (7) on the rear cover Screws Screws • Do not let the attachment screws fall inside the GP, or lose them (3) Remove the setscrew (1) on the circuit board chassis. Setscrew •...
  • Page 229 GP3000 Series Hardware Manual (6) Remove the Setscrew from the Backlight Unit Setscrew for the Backlight Unit (7) Lift the edge of the Backlight Unit, and remove the unit while sliding it along the groove Backlight Unit (8) Insert a new Backlight Unit while sliding it along the groove.
  • Page 230 Chapter 9 Maintenance (12) Return the rear face cover to the original position, and secure the cover in place using the mounting screws (7). The necessary torque is 0.5N•m. • The cable clamp is used to prevent the cable from being caught inside in the GP unit and possibly damaged.

  • Page 231: Agp-3750T

    GP3000 Series Hardware Manual 9.4.4 AGP-3750T Preparation Please have the following ready beforehand. • Replacement backlight (Model: CA3-BLU15-01 (Set of two)) • One pair of clean (preferably new) cotton gloves. • Phillips screwdriver (no.2) About the Backlight GP units use a CFL, long-life type backlight. In a real world situation, the backlight may need to be replaced depending on the GP’s operating environment.
  • Page 232 Chapter 9 Maintenance Remove the retaining screws (6) on the rear cover, and detach the cover from the main unit. Retaining screws Upper Rear • Do not let the attachment screws fall inside the GP, or lose them. (3) Pull out cable from inverter insulating sheet, and remove from cable clump. Remove cable from backlight connector on inverter circuit board.
  • Page 233 GP3000 Series Hardware Manual (5) Drawn out the cable in the direction of an arrow. Creep out backlight unit from backlight unit slot. Backlight Unit slot Backlight Unit Cable • Replace backlight the whole backlight unit. (6) Insert a new backlight unit in backlight unit slot.

Table of Contents
