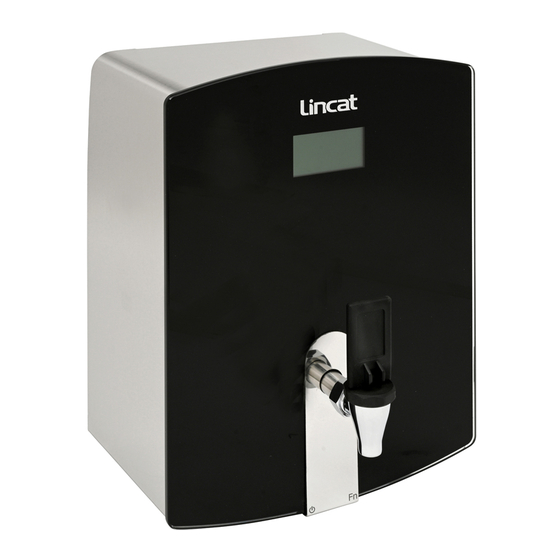

Wall mounted water boiler
Hide thumbs Also See for WMB3F/B:

Advertisement

Table of Contents

See also: Instruction Manual
Installation, Operating and Servicing
Instructions
Wall Mounted Water Boiler
WMB3F/B,WMB3F/W
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 435 ECN 3607
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMB3F/B and is the answer not in the manual?

Questions and answers

Related Manuals for Lincat WMB3F/B

Summary of Contents for Lincat WMB3F/B

  • Page 1 Installation, Operating and Servicing Instructions Wall Mounted Water Boiler WMB3F/B,WMB3F/W Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 435 ECN 3607 Page 1 of 12...

  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.

  • Page 3: Warnings And Precautions

    Disconnect this appliance before servicing, maintenance or cleaning. This appliance is not suitable for outdoor use. TECHNICAL DATA Model Height (mm) Width (mm) Depth (mm) Weight (kg) WMB3F/B WMB3F/W CHECK LIST OF ENCLOSURES Warranty card Instructions manual 44mm diameter rubber grommet IS436 mounting template INSTALLATION AND COMMISSIONING This appliance must be earthed.
  • Page 4 20mm diameter glanded bush in the base after removing the smaller knock out panel (Fig 1 B). Connection sequence is: Earth Green/Yellow Right terminal Neutral Live Centre terminal Live Brown Left terminal Power Ratings Model Amps WMB3F/B 13.0 WMB3F/W IS 435 ECN 3607 Page 4 of 12...

  • Page 5: Operating Instructions

    Water Installation Connection hoses may either be fed through the cutout in the back panel or via the larger of the two knock out panels (Fig 1 A). A blank rubber grommet is supplied and should be cut to fit around the feed pipe and fitted into the appliance base to seal it.

  • Page 6: Turn Power Off At The Mains For 5 Seconds And Then Back On Again. When The

    Adjustment - water temperature, screen backlight and contrast. Fig 1 Consult Fig 1. Turn power off at the mains for 5 seconds and then back on again. When the ‘Filterflow’ screen is displayed, press and hold the power button (D) until the IS 435 ECN 3607 Page 6 of 12...
  • Page 7 software version is displayed. Press the function button Fn (E) and the temperature will be displayed. Press the power button to cycle through the values 70 to 96 Deg C. Press the Fn button to select the required value. The backlight adjustment screen is displayed next. Press the power button to cycle through the values 1 to 25.

  • Page 8: Cleaning

    De-scaling the boiler at the end of the working day gives the de-scaling agent several hours to work. Lincat recommend our own de-scaling agent MS19, available from our Spares department. Wear protective clothing.
  • Page 9 Drain and flush all de-scaling agent from the tank completely as follows: Unscrew the drain plug (beneath the grommet – Fig 1 G) using a 24mm spanner to hold the plug and a 21mm socket on a ratchet (Fig 3) to remove it from the bottom of the tank.

  • Page 10: Servicing, Maintenance And Component Replacement

    SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT All servicing, maintenance and component replacement on this appliance should be carried out by one of our recommended service engineers. FAULT FINDING The control panel displays information that can help with fault diagnosis. Before calling for service, draw off a litre of water, clear the fault code by pressing the Fn button and turn the boiler off and on again at the supply.

  • Page 11: Spare Parts List

    SPARE PARTS LIST Part Number Description Used on CO252 Compression stop end EL277 Element WMB3F/B, WMB3F/W FH02 Filter head only GA56 Tank gasket GF01 Glass front WMB3F/B GF02 Glass front WMB3F/W LE47 Level sensor insulator LE48 Upper level sensor LE51...

  • Page 12: Service Information And Guarantee

    All available on serial plate Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.

This manual is also suitable for:
