Installation, Operating and Servicing
Instructions

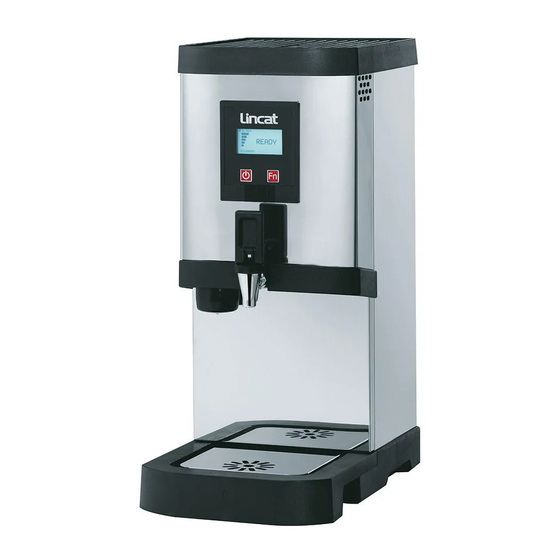

Electric Auto-Fill Water Boilers
EB3F, EB4F, EB6F, EB6TF
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 339 ECN 3607
Page 1 of 11
Advertisement
Table of Contents
Related Manuals for Lincat EB3F
Summary of Contents for Lincat EB3F
- Page 1 Installation, Operating and Servicing Instructions Electric Auto-Fill Water Boilers EB3F, EB4F, EB6F, EB6TF Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 339 ECN 3607 Page 1 of 11...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
Disconnect this appliance before servicing, maintenance or cleaning. TECHNICAL DATA Model Height Width (mm) Depth (mm) Weight (kg) (mm) EB3F EB4F EB6F EB6TF CHECK LIST OF ENCLOSURES Warranty card Instructions manual Drip tray and insert Inlet hose with ¾” BSP connection... - Page 4 100 to 800 EB6F EB6TF Electrical supply The EB3F is supplied with a 13 amp plug. The EB4F is supplied with a bulkhead cable connector. Connect a 2.5mm 3 core cable. The EB6F and EB6TF are supplied with a bulkhead cable connector. Connect a single or 3 phase cable.
-
Page 5: Operating Instructions
are required to exit at either side of the boiler the thinner section between the moulded base sides may be cut away with a hacksaw. Ensure the metal overflow pipe protrudes through the metal base of the boiler. OPERATING INSTRUCTIONS Fig 1 Only qualified or trained personnel should use this appliance. - Page 6 Regular Operation The boiler starts automatically when the water supply is turned on. During the heating cycle, only small quantities of water are added to ensure hot water is always available at the tap. The boiler is designed to be permanently switched on: it is only necessary to turn it off for de-scaling or maintenance.
-
Page 7: Cleaning
READY FILTER CHANGE FILTER STANDBY CLEAR Fig 2 To replace the filter: Twist the base of the filter (G) 90 degrees to the left and lower the cartridge out of the appliance. It will contain a small amount of water. Remove the black cap and place it on the new filter. -
Page 8: Servicing, Maintenance And Component Replacement
De-scaling the boiler at the end of the working day gives the de-scaling agent several hours to work. Lincat recommend our own de-scaling agent MS19, available from our Spares department. Wear protective clothing. Isolate the boiler from the electrical supply. -
Page 9: Fault Finding
FAULT FINDING The control panel displays information that can help with fault diagnosis. Before calling for service, draw off a litre of water, clear the fault code by pressing the Fn button and turn the boiler off and on again at the supply. If the fault persists, call service for advice. -
Page 10: Spare Parts List
SPARE PARTS LIST Part Number Description Used on ¼” to 3/8” elbow CO206 CO215 Contactor All excluding EB3F DV02 Service valve EBM05 Outer lid EB3F, EB4F EBM08 Outer lid EB6F, EB6TF EL235 Element 3kW EB3F, EB6F, EB6TF EL241 Element 4.5kW... -
Page 11: Service Information And Guarantee
All available on serial plate Type number Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
