Installation, Operating and Servicing
Instructions

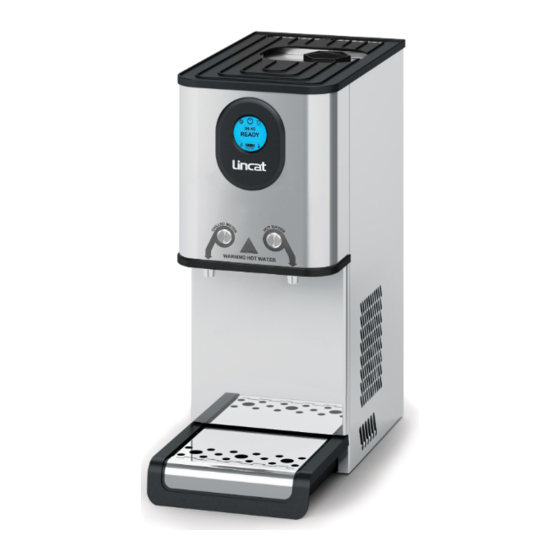

Water boiler and chiller –
EB3FX/HC/PB
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS726 ECN 4530
Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Lincat EB3FX/HC/PB
Summary of Contents for Lincat EB3FX/HC/PB
- Page 1 Installation, Operating and Servicing Instructions Water boiler and chiller – EB3FX/HC/PB Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS726 ECN 4530 Page 1 of 10...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person with the installation instructions for the appliance and in accordance with national and local regulations in force in the country of installation. This appliance is intended for indoor use only and should never be installed outdoors or exposed to the elements of nature. -
Page 4: Technical Data
TECHNICAL DATA Height (mm) Width (mm) Depth (mm) Weight (kg) Power rating(kW) Current rating (A) CHECK LIST OF ENCLOSURES Warranty card Instructions manual Drip tray Connection hose Silicone drain hose assembly INSTALLATION AND COMMISSIONING This appliance must be earthed. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N... -
Page 5: Operating Instructions
Water supply connection Connect the supplied water inlet hose to the inlet connection point on the filter head and the other end to the mains supply via an accessible isolating tap with a ¾” BSP thread. Use the hose set supplied with the appliance - any previous hose set is not to be re- used. - Page 6 To replace the filter: Twist the base of the filter (E) 90 degrees to the left and lower the cartridge out of the appliance. It will contain a small amount of water. Only use a genuine Lincat Filter. IS726 ECN 4530...
-
Page 7: Spares List
Insert the new filter into the recess and lock in place by twisting to the right. Press the “Filter life icon” and follow the on-screen instructions to reset the filter life. Drain off approximately 5 litres of water to remove any loose carbon particles from the filter. -
Page 8: Descaling Servicing
De-scaling is an important maintenance task and must be performed to maintain the warranty. Failure to descale a unit may result in the boiler overfilling and leaking from the overflow. Lincat offer a purpose designed de-scaler powder, part number DP10 that can be used should you require it. SERVICING, MAINTENANCE AND... -
Page 9: Service Information And Guarantee
Type number All available on serial plate Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. - Page 10 This page intentionally blank IS726 ECN 4530 Page 10 of 10...
