The display will show the number of the edited macro page, and will then show the macro knob settings menu. The
upper line displays the lower boundary for each of the 4 parameters, while the lower line displays the upper boundary for
each of the 4 parameters. To adjust the lower boundary of a parameter, turn the corresponding encoder. You can also
press-turn the corresponding encoder to adjust the lower boundary value by bigger steps. To adjust the upper boundary
of a parameter, hold the shift button (4) down and turn the corresponding encoder. While holding the shift button down,
you can also press-turn the corresponding encoder to adjust the upper boundary value by bigger steps.
Setting the same lower and upper boundary value will disable macro for this parameter (turning the macro knob won't
affect the current value of the parameter).
Using the Macro Knob to send relative CCs
Setting a lower boundary of 128 for the first encoder activates the relative CC mode of the Macro Knob. When the Macro
Knob is set to relative CC, it sends out 2-bits complement Relative CC messages, which are recognized by softwares like
Ableton Live. You can set two CC values for the relative CC mode using the shift button and the first and second
encoders.
Midi Command Documentation
030 060 000 127
060 030 127 000

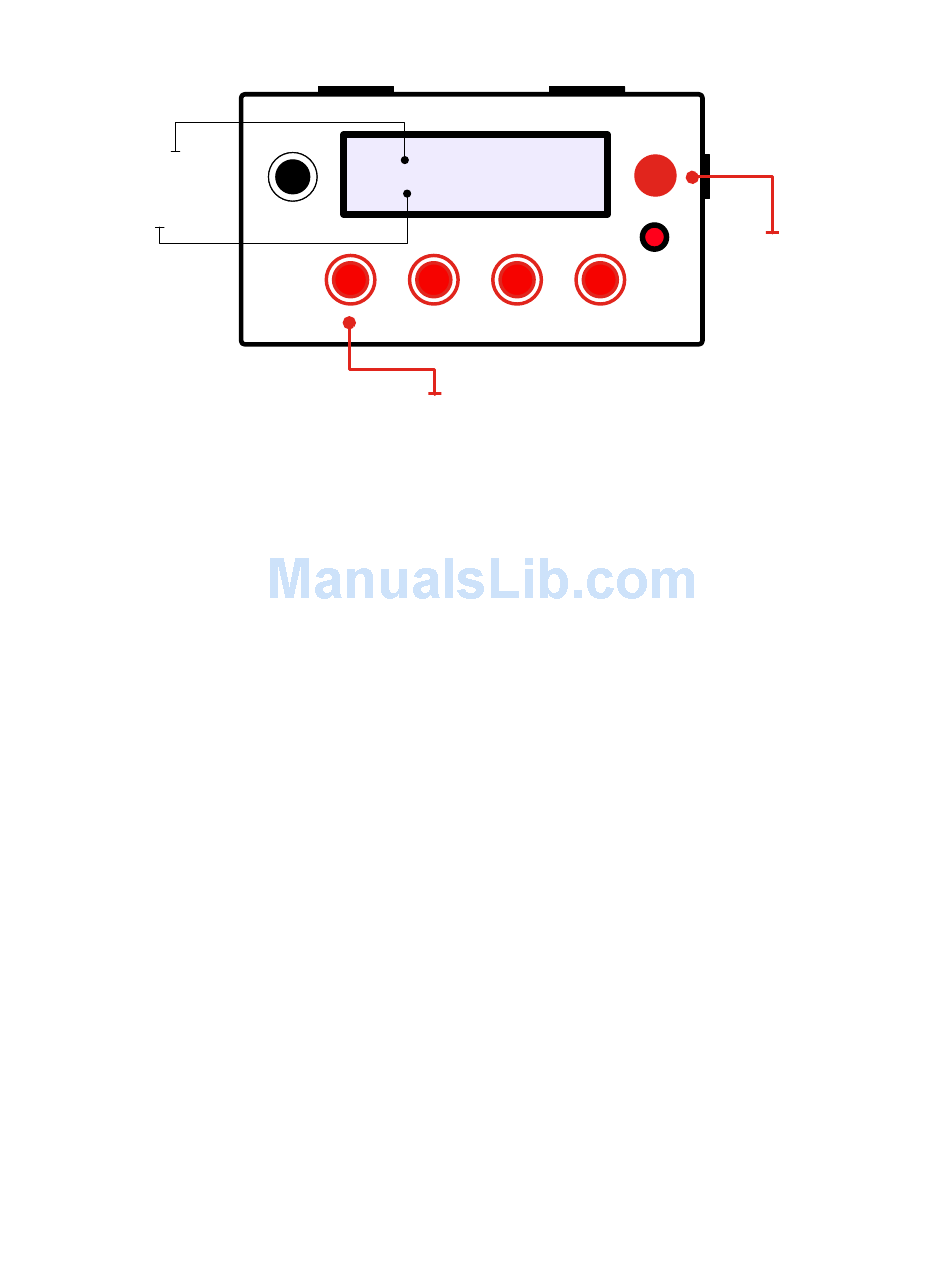

Turn encoder to adjust lower/upper boundaries
Editing macro boundaries
Hold shift to access
upper boundaries
