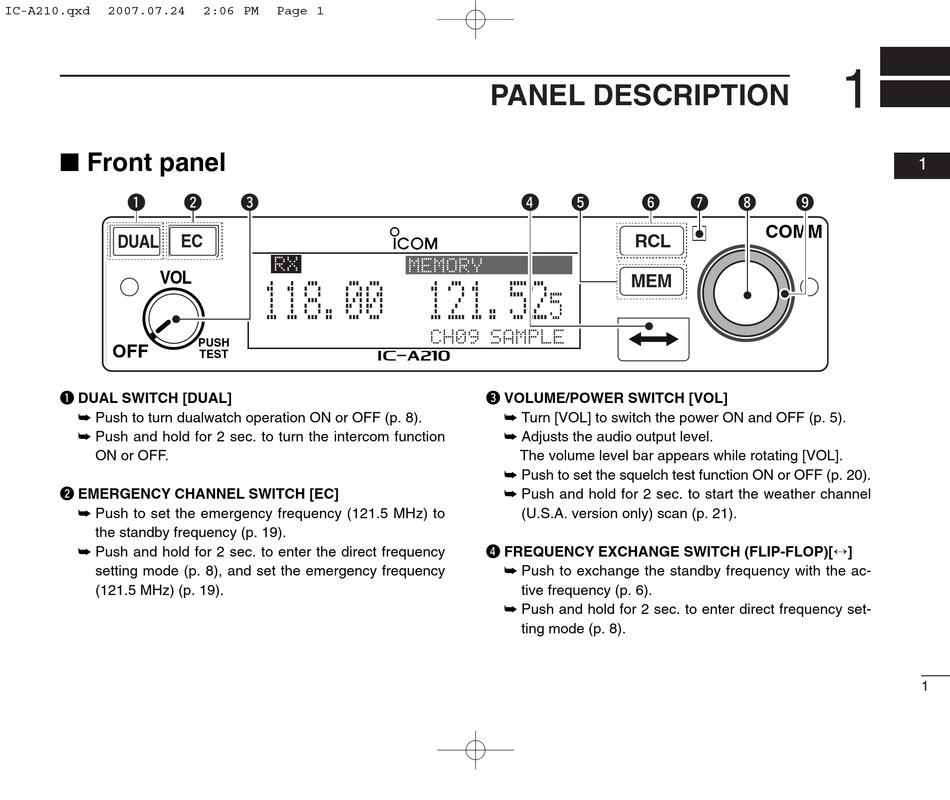

I Front panel

q w
DUAL EC
VOL
PUSH
OFF
TEST
q DUAL SWITCH [DUAL]
¯ Push to turn dualwatch operation ON or OFF (p. 8).
¯ Push and hold for 2 sec. to turn the intercom function
ON or OFF.
w EMERGENCY CHANNEL SWITCH [EC]
¯ Push to set the emergency frequency (121.5 MHz) to
the standby frequency (p. 19).
¯ Push and hold for 2 sec. to enter the direct frequency
setting mode (p. 8), and set the emergency frequency
(121.5 MHz) (p. 19).
e
RX
MEMORY
118.00
iA210

PANEL DESCRIPTION

r t
121.52
5
CH09 SAMPLE
e VOLUME/POWER SWITCH [VOL]
¯ Turn [VOL] to switch the power ON and OFF (p. 5).
¯ Adjusts the audio output level.
The volume level bar appears while rotating [VOL].
¯ Push to set the squelch test function ON or OFF (p. 20).
¯ Push and hold for 2 sec. to start the weather channel
(U.S.A. version only) scan (p. 21).
r FREQUENCY EXCHANGE SWITCH (FLIP-FLOP)[£]
¯ Push to exchange the standby frequency with the ac-
tive frequency (p. 6).
¯ Push and hold for 2 sec. to enter direct frequency set-
ting mode (p. 8).
y u i o
COMM
RCL
MEM
1
01
1
