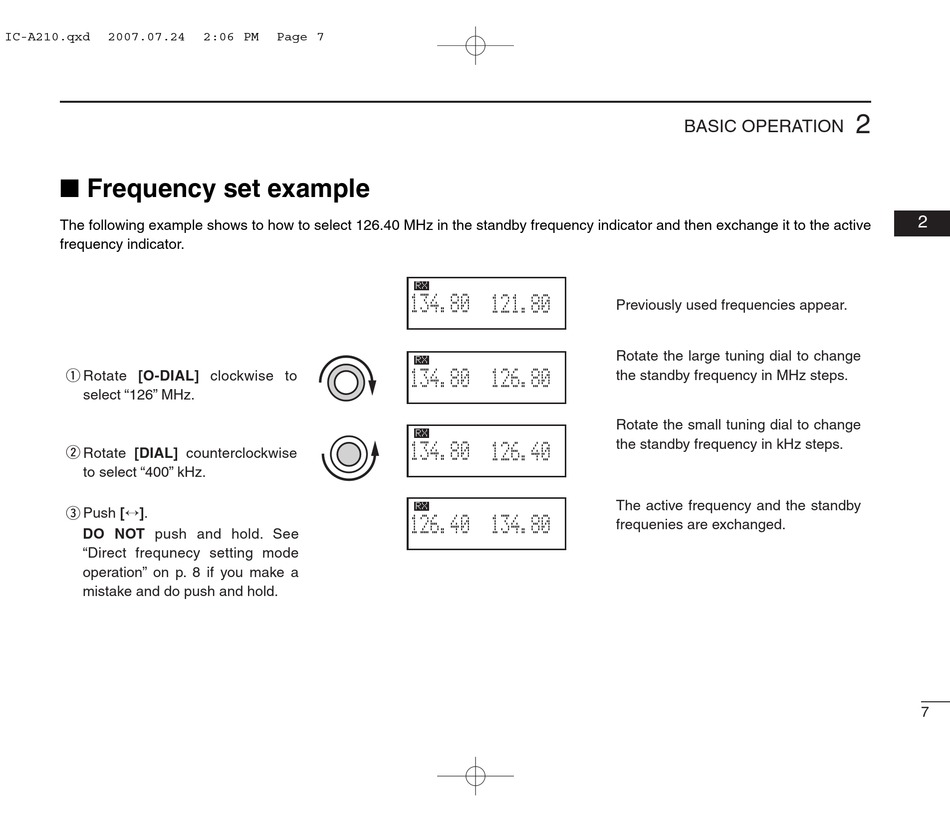

I Frequency set example

The following example shows to how to select 126.40 MHz in the standby frequency indicator and then exchange it to the active
frequency indicator.
Rotate [O-DIAL] clockwise to
q
select "126" MHz.
Rotate [DIAL] counterclockwise
w
to select "400" kHz.
Push [£].
e
DO NOT push and hold. See
"Direct frequnecy setting mode
operation" on p. 8 if you make a
mistake and do push and hold.
RX
134.80 121.80
5
RX
134.80 126.80
5
RX
134.80 126.40
5
RX
126.40 134.80
5
BASIC OPERATION
Previously used frequencies appear.
Rotate the large tuning dial to change
the standby frequency in MHz steps.
Rotate the small tuning dial to change
the standby frequency in kHz steps.
The active frequency and the standby
frequenies are exchanged.
2
02
7
