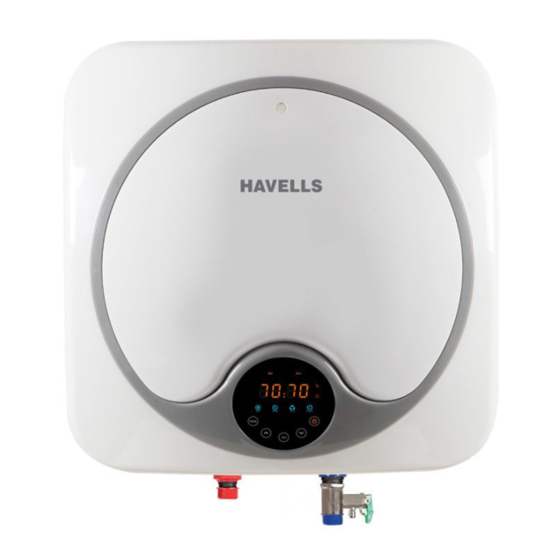

- Page 1 Quatro Digital Storage Electric Water Heater 15 & 25 L...
-
Page 3: Parts List
PARTS LIST: 1. Thermal Cutout Safety Valve 2. Maintenance Cover Water Tubes with Whirl Flow 3. Digital Temperature Setting Heating Element 4. Digital Display and control panel 10. Anode Rod 5. Top Cover 11. Inner Tank 6. Bottom Cover 12. Puff Insulation... - Page 4 Product Dimension: Quatro Digital: Actual Auto Timer ON/OFF Mode Model Quatro-15 L G1/2” Quatro-25 L G1/2”...
- Page 5 Display and Control Panel Setting Actual Temp. Temp. Time & Temp. Display Zone Temp. Symbol Time Symbol Control Panel Mode Display Zone Mode Button On/Off Button Up Button Down Button Set Button Press Buttons “Mode” : Mode selection to choose “STD”,”Timer”,”ECO”, and”Smart” working modes on screen.
- Page 6 Display Interface Time Display Temp. Display Interface Interface Interface Four working Modes Mode One : Standard Mode (STD) Temp. Display Interface Time Display Interface Standard Mode : Water Heater supply hot water by cyclic working for 24 hours at a set temp. (such as 75 C).
- Page 7 Four working Modes Mode Two: Timer Mode Temp. Display Interface Time Display Interface Timer Mode: (Auto Memory function) W a t e r H e a t e r w i l l e n s u r e a h o t w a t e r s u p p l y w i t h s e t t e m p . a t t h e r e q u i r e d t i m e . ( D u r i n g b a t h i n g t i m e i t w i l l k e e p h e a t i n g f o r 1 h o u r t o e n s u r e c o n s t a n t f l o w o f h o t water supply ), for rest of hours it remains in standby mode.
- Page 8 Four working Modes Mode Four: Smart Mode Temp. Display Interface Time Display Interface Standby Interface Smart Mode: Water Heater shall turn on and off at the required time automatically itself. (such as Auto on time at 08:00 am Auto off time at 11:00 pm). It ensures a hot water supply with set temp. during the operating hours.This cycle will continue every day till user reset parameters according to his/her needs.
- Page 9 Key Functions- Set Temperature Short Press Short Press “ V ” or “ ” “ V ” or “ ” Setting desired temperature 1. In Standard Mode or Timer Mode, short press "V" or " ", the set temperature digits start to flash (such as “70”) with a centigrade icon at the right side of screen.
- Page 10 Key Functions - Smart System Short Press Short Press Flash 3S “set” “ V” or “ ” Flash 3S Time Short Press Short Press is up “set” “ V ” or “ ” Setting of Auto ON/OFF time 1. Short press "Mode" to Smart Mode, “ON” symbol will appear on the interface and disappears 3s later to prompt setting the Auto ON Time 2.
- Page 11 Special Function-Reset “Set”+”Mode”: Reset the product to default status with following setting. 1. Setting temperature: 75 C 2. Heating mode: STD (standard heating) 3. Timer mode: 08:00 (product time, NOT real time) 4. Product time:12:00 5. Auto on time: 08:00 (product time, NOT real time) 6.
- Page 12 S.No. PARAMETER Quatro digital 15 L Quatro digital 25 L Rated Capacity in Ltr. Mounting Vertical Vertical Rated Voltage in Volts & frequency in Hz. 230V, 1Ph 50 Hz A.C. 230V, 1Ph 50 Hz A.C. Rated Power Input in Watts 2000 2000 Rated Input Current in Amps...
- Page 13 Vitreous Enamel Coating Incoloy Heating Element: Incoloy 800 Coated Heating element offers superior heating performance with its excellent resistance to both oxidation & carbonization at high temp. setting. Also resists against most extreme and hard water conditions thus extending life span of heating element with minimum energy loss.
- Page 14 temp. Digital Temperature Setting 70:26 Digital Setting Safety Devices : (14)
- Page 15 (15)
- Page 16 (16)
- Page 17 Thermal Cutout Brown Blue Terminal 1 Yellow&Green Terminal 2 High frequency transformer Terminal 3 Terminal 4 Temp. Sensor Control Board (17)
- Page 18 DON’TS (18)
- Page 19 (19)
- Page 20 (20)
- Page 21 Corp Office: QRG Tower, 2D, Sector-126, Expressway, Noida - 201 304. U.P. (INDIA) For Consumer Complaint, Contact QRG Towers, 2D, Sector-126, Expressway, Noida - 201 304. U.P. (INDIA) Toll Free No. 1800 11 0303, 1800 103 1313 E-mail : customercare@havells.com, www.havells.com...
