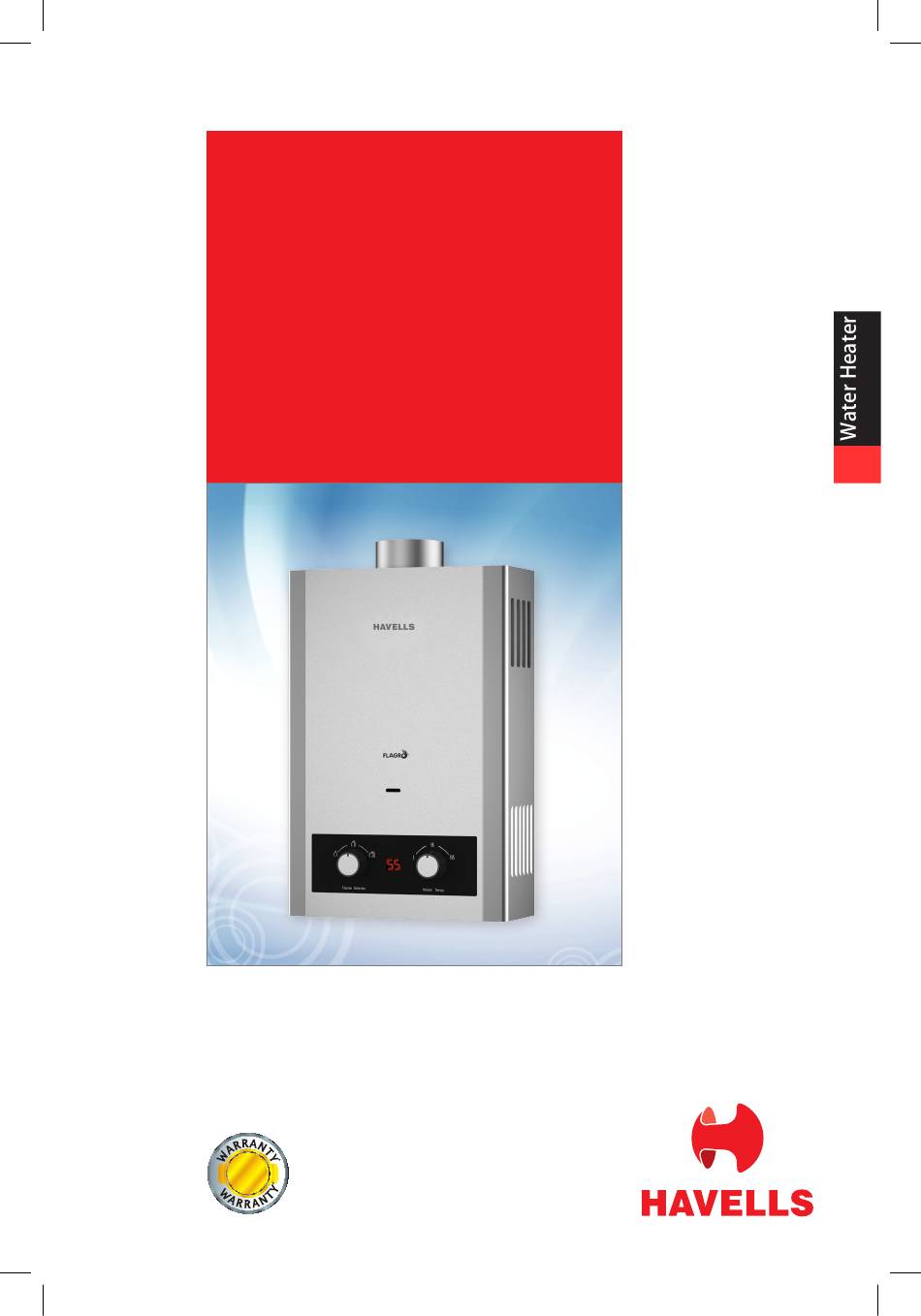

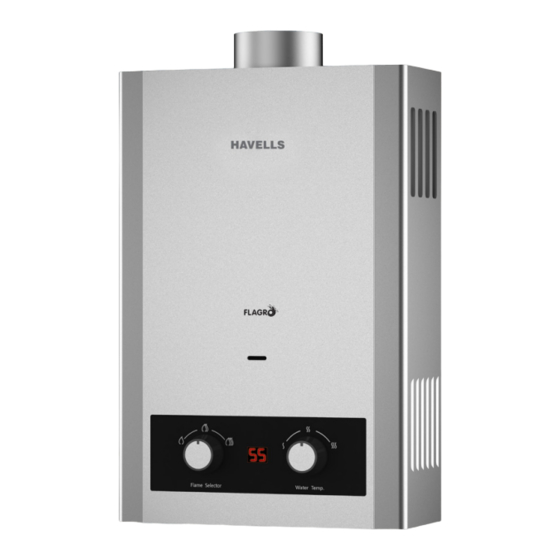

- Page 1 Operating Instructions Instantaneous Gas Water Heater Flagro 6L & 8L YEAR COMPREHENSIVE...
- Page 2 Dear Customer, We congratulate you on choosing a HAVELLS Instantaneous Gas Water Heater, one of the highly prestigious brand in India. Meticulously designed, using only the highest quality materials and components, your electric water heater is designed to have many years of trouble free operation.
- Page 3 Parts name & Structure for Flagro 6L: Back cover assembly Gasket Drought diverter Water outlet fixing plate Heat Exchanger Screw (M4*8) Screw (M4*6) Battery box Screw assembly (M4*14) Screw (M4*8) Needle fixing plate Water tube seal ring Burner assembly NG/LPG...
- Page 4 Features: Product features -Safety Auto Ignition: Simply open the water valve & the impulse will ignite automatically & hot water immediately available. Water temperature regulation: regulate the water temperature at any temperature. Child Lock: This Ensures safety to children / old age people by preventing ignition if operated unsafe.
-
Page 5: Parts Name And Dimensions
Parts name and Dimensions: Model G ½” Flagro 6 L Flagro 8 L G ½” Note: All dimensions are in mm, dimensions tolerance ±5 mm... - Page 6 Technical Specifications: Name Gas-fired instantaneous Water Heater Model Flagro 6L Flagro 8L Rated Heat Load 12 kW 16 kW Max Flow Rate (rise 25 6kg/min 8kg/min Water Pressure 0.01~1.0MPa LPG 2940Pa Gas Pressure NG 2000Pa Gas Inlet G ½" Pipe Joint Cold Water Inlet G ½"...
-
Page 7: Installation
Installation: Before installation, please contact qualified technicians and ensure that Installation is approved by the local gas authority. Installation Requirements: The room for installation should be well ventilated. Do not install the water heater in bedroom, basement, bathroom, or rooms with bad ventilation condition. A ventilation hole as well as an exhaust hole must be drilled in the wall, connected to the outside. - Page 8 (Fig.7). (Note: There is a filter inside the water inlet faucet, so please do not remove it while installing). Hot Water Outlet may be connected to a tap or Flagro 6L Flagro 6L shower by either a flexible pipe or rigid pipe.
- Page 9 is not connected, the water heater will not operate normally. After initial installation or change of gas cylinder, air may remain in the gas pipe and it requires several ignition attempts to push the air out before the gas can be ignited. If a problem comes up after normal operation, turn off the water immediately.
- Page 10 the electric power supply are strictly prohibited to avoid explosion and fire. (Fig.12) Keep on using one type of gas (L.P.G or NG), never mixing using them. Check the gas tube regularly in case of aging or crack after long period of usage. Replace it if cracked tubes are found.
- Page 11 phenomenon when the gas pressure is insufficient. This causes increase of the carbon deposit in the burner and affect the normal use of the heater. In such case, should the flame turn from blue to yellow, the amount of carbon monoxide would increase.
-
Page 12: Maintenance
The following phenomenon are normal: The drain valve is dripping. When the water pressure is too high, the drain valve will release water so as to reduce the pressure to protect the heater. When the heater is supplying hot water to too many points at the same time, the hot water flow would be reduced, and under exceptional circumstances no hot water will come out at all. - Page 13 Do’s 1) Ensure proper Ventilation while gas water heater in use. 2) Use genuine spare parts & connecting Pipes. 3) Switch off the water heater after use. 4) Ensure no leakage in Water & Gas Pipe after Installation. 5) Install in vertical position only. 6) In case LED display does not show temperature, do not start the unit.
-
Page 14: Troubleshooting
Trouble Shooting: Troubles Reasons Solutions Turn on main valve or Gas valve not open • replace the gas Gas valve half open • • Turn on the main valve Open several opening Air in the gas pipe • the water inlet valve until ignition High •... - Page 15 Warranty This Water Heater carries 2 years comprehensive warranty on instantaneous gas water heater from the date of purchase against manufacturing defects. Free repair will be provided under the warranty period when the Water Heater is returned to our Service Centre, freight and cartage paid. This warranty only applies if: a) The water heater has been installed as per instruction manual.
- Page 16 Expressway, Noida-201304 (U.P) Ph. +91-120-4771000 Email : marketing@havells.com, www.havells.com Consumer Care: 1800 11 0303, 1800 103 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet ! CIN - L31900DL1983PLC016304...
