Summary of Contents for Havells Instanio Prime 6 L

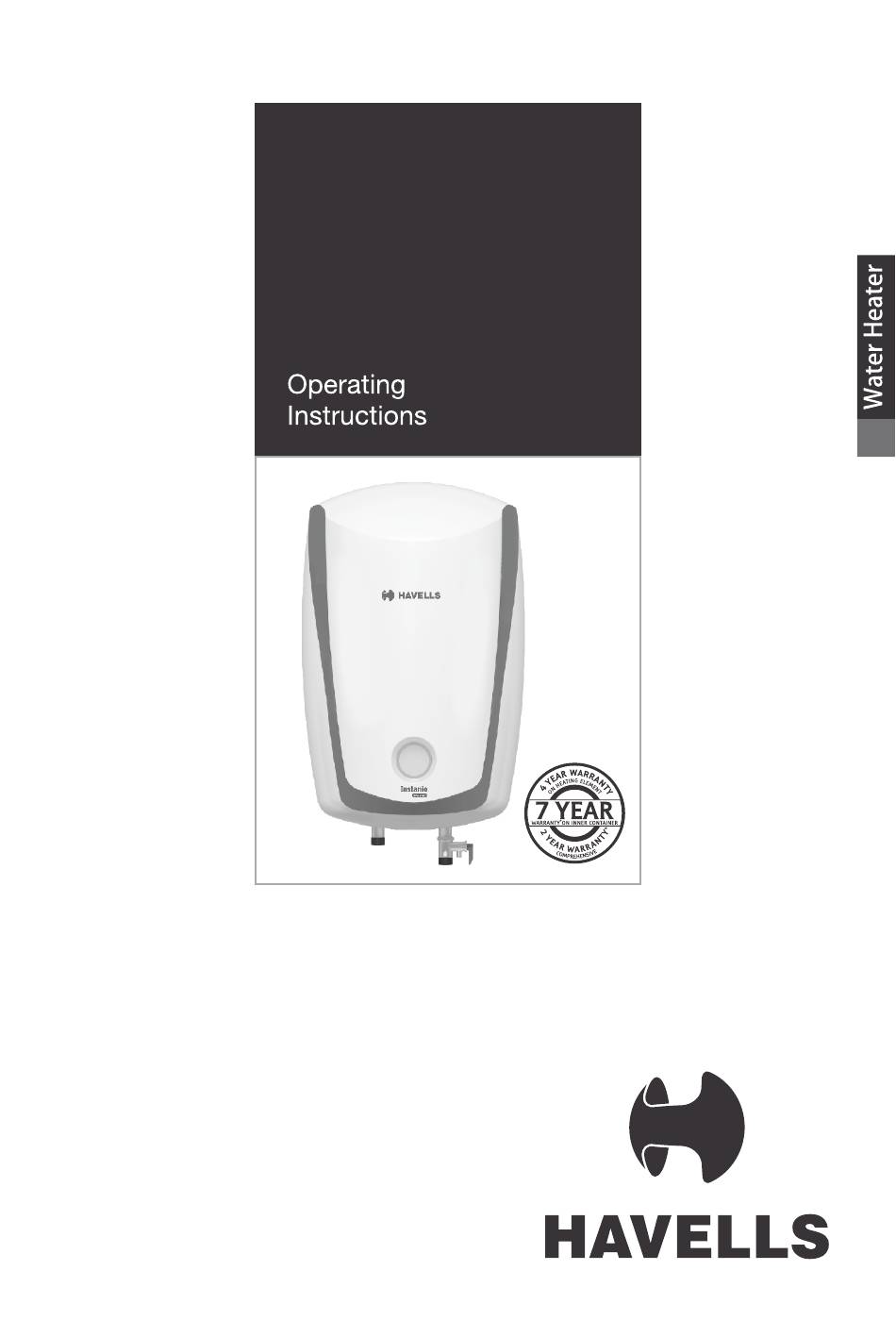

- Page 1 Storage Electric Water Heater Instanio Prime 6 L...
- Page 3 Parts List: Instanio High quality incoloy 800 glass coated heating element Heavy guage inner tank Fero glass coating layer Heavy-Duty anode rod Energy saving high density PUF insulation Thermal cutout / Thermostat with single setting Multifunctional safety valve Temperature indicative color changing LED Lamp 4 Bolt flange High Gloss Outer Plastic Body with Deco...
- Page 4 Model Instanio Prime 6L 1/2" Note: All dimensions are in mm, dimensions tolerance...
- Page 5 Technical Specifications: S. No. Parameter Instanio Prime Rated Capacity in Ltr. Mounting Vertical Rated Voltage in Volts & 230v, 1Ph, frequency in Hz. 50Hz, A.C. Rated Power Input in Watts 3000 Rated Input Current in Amps 13.04 A Mean Hot Water Output Temp. ( C) Rated Pressue in MPa Standing Loss in KWH/24 hrs/45 C 0.320...
- Page 6 Key Features: Feroglass Feroglass...
- Page 7 8. Preset Thermostat 75 C Single setting thermostat at 75°C 10. Color changing LED indicator Indicated water heating by colour change from Blue to Amber. 11. Fire Retardant Power Cord Safety Devices: A. Thermostat Capillary type thermostat: This device “cut-off” and “cut-in” the power supply between a narrow band of temperature range.
- Page 8 • Customer can ensure proper working of the MFV by cleaning of salt deposits, by lifting the drain lever up. Customer can drain out the water from tank in case of prolonged non-use of water heater. Installation: A. Always use services of qualified plumber/electrician to install this unit. B.
- Page 9 Mounting 2. Do not install in the area of direct sunlight and water splashes. CAUTION CAUTION Picture-2...
- Page 10 Water Connections CAUTION CAUTION Electrical Connections...
-
Page 11: Internal Wiring Diagram
INTERNAL WIRING DIAGRAM Green Blue Thermostat Yellow Black Brown Brown Ring LED Thermal Black Blue Indicator Cut Out Blue/Amber Yellow/Green Driver PCB Black Fiber Glass/Silicon Sleeve Heating Element Operation of Water Heater: Maintenance & Cleaning:... - Page 12 If the water heater is not going to be used for a long time,...
- Page 13 This Water Heater carries 7 years warranty for Inner Container, 4 year warranty on Heating Element and 2 Year comprehensive warranty on other electrical components from the date of purchase against manufacturing defects. Free repair will be provided under the warranty period when the Water Heater is returned to our Service Centre, freight and cartage paid.
- Page 15 Expressway, Noida - 201 304 (UP), Ph. +91-120-3331000, E-mail: marketing@havells.com, www.havells.com Consumer Care No.: 1800 11 0303, 1800 103 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet! CIN - L31900DL1983PLC016304. Regional & Branch Offices:...
