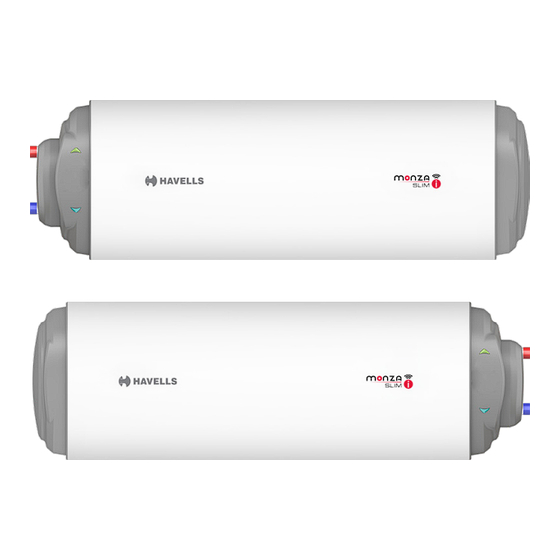

- Page 1 Operating Instructions Storage Electric Water Heater Monza Slim I 15 L & 25 L...
- Page 2 Dear Customer, We congratulate you on choosing a HAVELLS Electric Water Heater, one of the highly prestigious brand in India. Meticulously designed, using only the highest quality materials and components, your electric water heater is designed to have many years of trouble free operation.
- Page 3 Parts List: Monza Slim i High quality Incoloy 800 glass coated heating element Energy saving high density PUF insulation Water tubes with whirlflow 4 N Bolts Flange Heavy gauge inner tank Fero glass coating layer Heavy-Duty anode rod LED indicators PCBs...
- Page 4 General arrangement drawing: Monza Slim i Model Monza Slim I 15 L 325 mm 607 mm 311 mm 163 mm 320 mm 110 mm Monza Slim I 25 L 325 mm 893 mm 311 mm 163 mm 591 mm 110 mm *Note: All dimensions are in mm, dimensions tolerance +-5 mm Dimensions in mm above refer to mechanical figures in this page.
- Page 5 Technical Specifications: S.No. PARAMETER Monza Slim i Rated Capacity in L 15 L 25 L Mounting Horizontal Horizontal Rated Voltage in Volt & 230 V, 1 Phase, 230 V, 1 Phase, frequency in Hz 50 Hz, AC 50 Hz, AC Rated Power Input in W 2000 W 2000 W Rated Input Current in Ampere...
- Page 6 Key Features: 1. Horizontal Mounting 2. Slim Body with 31.1 cm Dia 3. Feroglass Coated Tank: A. Made of ultra thick superior quality steel. B. Provides more corrosion resistance and anti-rust property compared to standard inner tank designs resulting longer life.
- Page 7 3. Notifies user when water is ready to use. Works with Alexa and Ok Google Safety Devices: Havells Water Heater is built-in with a host of Safety Devices to ensure your safety at all times. The operation of these devices are described below: Thermostat / Temperature senser This device is availed with temperature control through mobile application. This device “cuts-...
- Page 8 B. Thermal Cutout A non-self resetting thermal cutout is provided as a safety device. When the thermostat fails to function, this cut-off the power at 93 °C ± 5 °C The thermal cutout has to be manually reset before the heater can start operating again. Multi Function Valve (MFV) This valve prevents the built-up of excessive pressure within the water heater by releasing water from the drain.
- Page 9 Installation & Safety : A. Always use services of qualified plumber/electrician to install this unit. B. For easy installation and servicing enough space should be provided around this unit (5 cm from ceiling, 50 cm from sides & minimum 1.8 m from ground). C. Ensure following tools and accessories are made available before installation of this unit. (not provided by company) 1.
- Page 10 Mounting Now the water heater can be hooked on the wall bracket. 1. After hooking on bracket, tug downward the water heater and ensure both fingers of bracket are properly seated in the mounting slot. 2. Do not install in the area of direct sunlight and water splashes. 2. Do not install in the area of direct sunlight and water splashes. CAUTION CAUTION Note: Image may vary from the actual product.
- Page 11 Water Connections CAUTION Do not connect the inlet directly to water lifting pump. Do not SWITCH ON water heater without water filled in tank 1. In case inlet water pressure is more than 0.8 MPa or water pressure head 80 metre, install the dead weight valve before inlet as shown in Picture 2 (not provided with this unit). 2.
-
Page 12: Apple Devices
BLUE YELLOW OPERATING INSTRUCTIONS: USING GEYSER WITH HAVELLS SYNC APP. The Application Can Be Downloaded From Play Store For Android Devices And App Store For Apple Devices. BEFORE SETTING UP THE APP, ENSURE THE FOLLOWING POINTS: Internet is mandatory for registration. - Page 13 How to register in app Open App and click on new Enter mobile number Homer, the smart assistant, will now user’ guide through pages where user can fill details like name, email-ID, product purchased etc. Once done, app will land in this page. Click “Ok,Proceed”. Create a 6 digit PIN for You will receive an OTP and Registration is complete and user will...
- Page 14 How to login in app Open App and click on Enter registered mobile number and Sign-in is successful and user will “existing user”. pin and tap on “Sign In”. land in Dashboard page.
- Page 15 How to add geyser in app Tap on add new device Adding a new device Select your home router Provide your home router SSID network from the list password rocess will start App will search for the nearby Device will be detected and Device added.
- Page 16 How to control geyser from app Set to favorites and on/off controls 35 °C Current water temp Desired Temp. range Desired Temp. slider Modes shortcuts Go to devices section. You will Device details page will open see your devices listed. with all the temperature control view.
- Page 17 How to set automation Create automation page will open. Automation name and description Controls 24 °C Time when automation should kick off Time when automation should end. Days in week when automation is desired Go to automate tab in device details page. Tap on create a new automation 24 °C 30 min...
- Page 18 How to delete a device Go to device page and long Device now will be selected. Tap delete on the confirmation press on the device you wish dialogue and device will be Tap on the delete icon. to delete deleted. How to delete an automation Go to device page and long Automation now will be Tap delete on the confirmation...
- Page 19 How to share the geyser device with others Go to more section and tap on Tap on invite a new member Your phonebook will open. Add/manage a member Select the member with which you want to share your device Select the devices to be Invitation for sharing will be shared.
- Page 20 How to access help and support 08045 77 1313 On any page in app, tap on Help and support page will open. the help icon on top In case the geyser shows the following error codes on the mobile APP and Power LED keeps blinking with RED color, the error codes have been described below:- •...
- Page 21 Smart Assistant’s Voice Control 1. Alexa Smart assistant 1.1 Alexa & Havells Sync Account linking process 1. Launch Amazon Alexa app on your device. 2. Open More and select 3. Select Search on skill & games Skill & games page.
- Page 22 5.Tap on ‘Enable to use’ button Havells Sync logging page will open 6. Sign in using your Havells Sync app login creden- 7. After Sign in, Your Havells Sync account tials. To signup, get app from Google play or Apple will be successfully linked, app stores.
- Page 23 8. To discover and add device, follow the on-screen instructions. 1.2 Smart Assistant Alexa controls & status commands Functionality Alexa Utterance Sample Alexa Power Updating Power State Hi Alexa, turn on <device name> Hi Alexa, turn on Bathroom Water Heater Updating Power State Hi Alexa, turn off<device name>...
- Page 24 I'm not quite sure what went wrong. Bathroom Water Heater isn't responding. Please check its network connection and power supply. 2. Google Action Smart Assistant 2.1 Google & Havells Sync Account Linking process 1. Launch Google home app on your device 2.
- Page 25 4. Go to Assistant tab 5. Scroll list to select ‘Home control’ to see list of google actions 6. Now, search ‘Havells Sync’...
- Page 26 7. Select Havells Sync in search result, 8. Sign in using your Havells Sync app login credentials. To which will redirect you to account login signup, get app from Google play or Apple app stores. Enter page. your Phone number with +91XXXXXXXXX Enter 6 digit PIN of Havells Sync as password.
- Page 27 11. One device is added to the the room, 12. Now, you can follow the on-screen tap on DONE button. instructions shown by Google to control the devices. 13. Your devices will be shown in their respective rooms assigned by you...
- Page 28 2.2 Smart Assistant Google Home controls & status commands Functionality Google Utternace Google Example Power Hey Google, is <device name> turn Hey/Ok Google, is bathroom geyser Query Power turn on Hey/Ok Google,turn on Updating Power State Hey Google, turn on <device name> bathroom geyser Hey/Ok Google,turn off Updating Power State...
- Page 29 A. Using the water heater in manual mode 1. Do not switch “ON” before filling the heater with water. 2. Leave the hot water tap open. Now fill the heater by opening the control valve at the inlet. 3. When the heater is full, water will start flowing through the hot water tap. Close the hot water tap. 4. Now the heater will always have water inside. Water drawn will be replaced by water from the over head tank. 5. Always keep the inlet control valve open. 6.
- Page 30 Maintenance & Cleaning: 1. To benefit from the highest standards of service and to ensure your guarantee remains in focus, please always contact HAVELLS approved dealer or HAVELLS Authorised Franchise 2. Always keep the inlet control valve open. 3. Never switch “ON” the water heater without water in the heater. It will damage the heating element.
- Page 31 However get this done through a qualified technician /plumber only 3. Always get the water heater serviced once in a year from a Havells authorized service representative 4. Use genuine spares when spares replacement is necessary.
- Page 32 Warranty This Water Heater carries 7 years warranty for Inner Container, 4 year warranty on Heating Element and 2 Year comprehensive warranty on other electrical components from the date of purchase against manufacturing defects. Free repair will be provided under the warranty period when the Water Heater is returned to our Service Centre, freight and cartage paid.
- Page 33 Actual products may vary in colour, design, description and colour combination etc. Although every effort has been made to ensure accuracy in the compilation of the technical detail within this publication. Specifications & performance data are constantly changing. Image/diagrams for illustration purpose only. Copyright Subsists. Imitation of trade dress, graphics and color scheme of this document is a punishable offence.
- Page 34 Expressway, Noida - 201304 (U.P.) India, Ph. +91-120-3331000, E-mail: marketing@havells.com, Website: www.havells.com Customer Care No. 08045 77 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet! CIN - L31900DL1983PLC016304.
