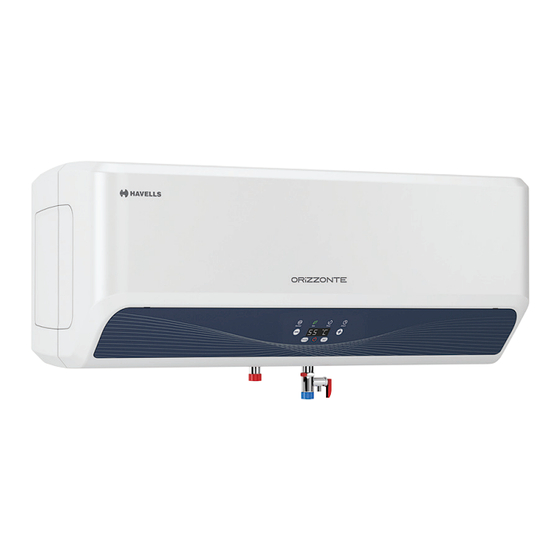

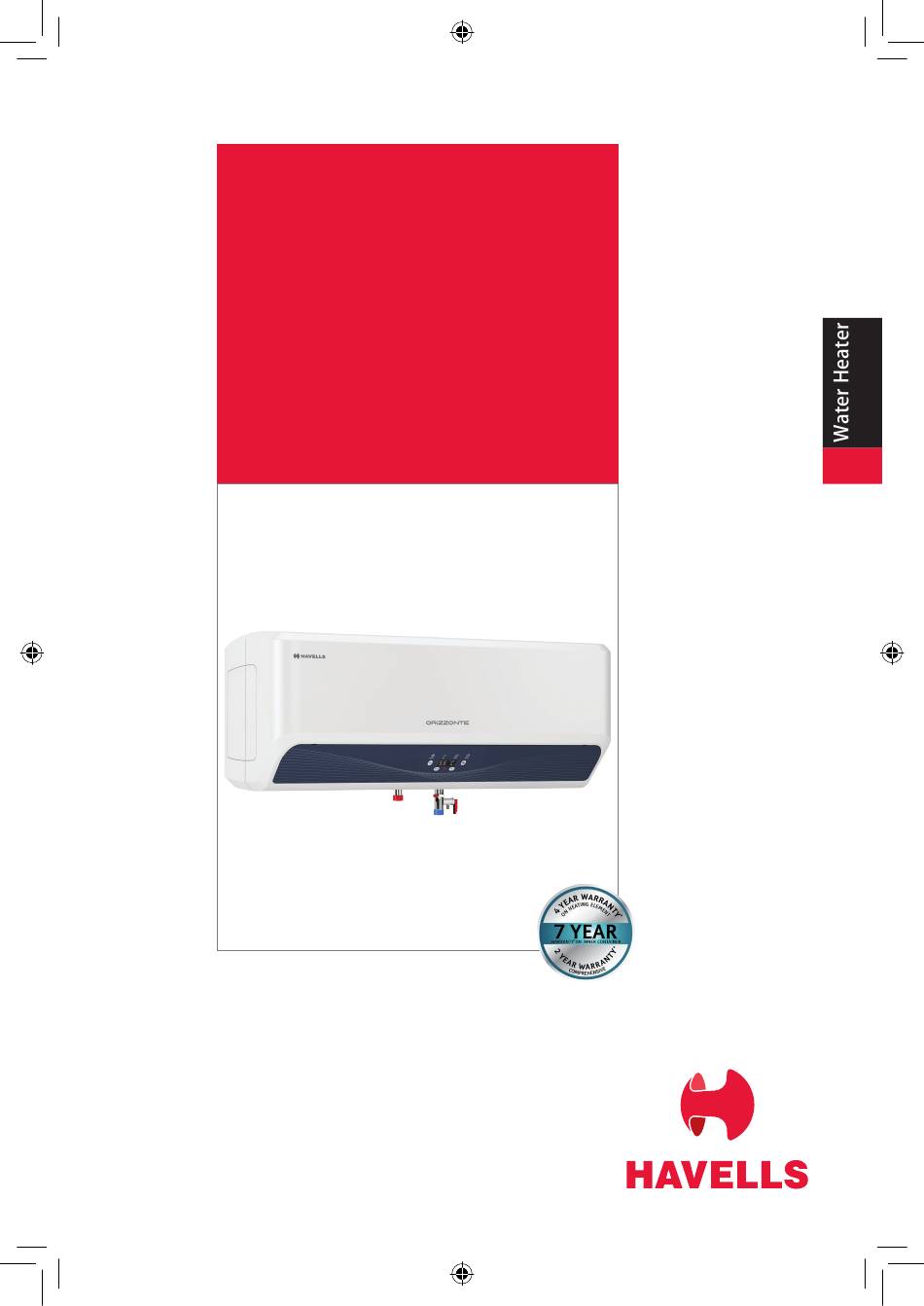

- Page 1 Operating Instructions Storage Electric Water Heater Orizzonte 15 L & 25 L...
- Page 2 Dear Customer, We congratulate you on choosing a HAVELLS Electric Water Heater, one of the highly prestigious brands in India. Meticulously designed, using only the highest quality materials and components, your electric water heater is designed to have many years of trouble-free operation.
- Page 3 Parts List: Orizzonte 15 L & 25 L Cross-sectional view of Orizzonte-25L Heavy gauge inner tank Water inlet tubes with whirl flow Feroglas coating layer Thermal Cutout Display PCBA Outlet hot water pipe Multifunction safety valve High quality Incoloy 800 glass coated heating element...
- Page 4 General arrangement drawing: Orizzonte 15 L / 25 L Model Orizzonte 15 L 600 mm 330 mm 351 mm 381 mm 180 mm 812 mm 335 mm 367 mm 390 mm 250 mm Orizzonte 25 L *Note: All dimensions are in mm, dimensions tolerance +-5 mm...
- Page 5 Technical Specifications: S.No. PARAMETER ORIZZONTE Rated Capacity in L 15 L 25 L Mounting Horizontal Horizontal Rated Voltage in Volt & 230 V, 1 Phase, 230 V, 1 Phase, frequency in Hz 50 Hz, AC 50 Hz, AC Rated Power Input in W 2000 W 2000 W Rated Input Current in Ampere...
- Page 6 Key Features: 1. 4 Modes Setting Options Normal, Eco, Timer & Smart mode 4 modes of operations which can be selected from the touch panel or remote 2. Feather Touch Panel: Allows manual setting for heating the water between 25 °C to 75 °C 3.
- Page 7 13. High working pressure 0.8 MPa Ideal for high rise buildings Safety Devices: Havells Water Heater is built-in with a host of Safety Devices to ensure your safety at all times. The operation of these devices is described below: Temperature sensor This device “cuts-off”...
- Page 8 Installation & Safety: A. Always use services of Havells Authorized person to install this unit B. For easy installation and servicing, enough space should be provided around this unit (5 cm from ceiling, 50 cm from sides & minimum 1.8 m from ground).
- Page 9 In case of solid walls Follow process as described below: • Drill hole as shown in Picture 1. • Insert the nut/bolt assembly in drilled hole to fix the mounting bracket as shown in Picture 1. • Fasten the bracket firmly and test it so that it carries the weight of water heater safely (with water).
- Page 10 2. Do not install in the area of direct sunlight and water splashes. 2. Do not install in the area of direct sunlight and water splashes. CAUTION CAUTION Note: Image may vary from the actual product. Water Connections CAUTION Do not connect the inlet directly to water lifting pump. Do not SWITCH ON water heater without water filled in tank 1.
- Page 11 8. Connect the outlet of water heater with metal flexible pipe having plastic nut / plastic adapter to hot water outlet point of bath fitting. Open the tap & valve to verify that water is flowing through the hot water tap. 9.
- Page 12 Internal Wiring Diagram – The schematic diagram shows the internal wiring. Make sure that the Water Heater is switched off and plugged-off from electrical supply before opening the inspection cover. Follow the Internal wiring connections as shown in the diagram while carrying out the maintenance. HEATING ELEMENT BLUE SLEEVE...
- Page 13 2. Different Modes of operations: Orizzonte is equipped with 4 modes of operations which can be selected from the touch panel or remote provided with the product a. Normal Mode b. Eco Mode c. Timer Mode d. Smart Mode Display OFF Display ON Remote –...
- Page 14 Timer mode – This mode enables user to set a duration for heating. When Timer mode is activated, Timer mode icon turns on. User can set the heating duration from 10 minutes to 180 minutes with set interval of 10 minutes. The default heating time is 60 minutes.
- Page 15 The NTC sensor cuts-in and cuts- off automatically to keep the water at constant temperature assuring hot water output always. Error Codes: Please find below, table for all the error codes in Orizzonte 15 L / 25 L Sr. No. Error Code Explanation...
- Page 16 6. It is recommended to descale the water heater once a year. If the water heater is not going to be used for a long time, a. Plug off the power supply. b. Stop Inlet water supply c. Unscrew the drain lever, lift the lever upward to remove the water through drain system provided in the MFV.
- Page 17 However, get this done through an authorized technician / plumber only. 3. Always get the water heater services once in a year from a Havells authorized service representative.
-
Page 18: Warranty Terms And Conditions
WARRANTY M/s. Havells India Ltd. (“Company”) hereby offers a limited warranty (“Warranty”) against manufacturing defect/s for a period of 2 (two) years on this Water Heater (“Product”), 7 (seven) years on its inner container and 4 (four) years on its heating element from the date of invoice on the terms and conditions provided hereinafter. - Page 19 Company shall not be held liable or be deemed to be in default for any delay or failure in performance resulting directly or indirectly from causes beyond its control including delay in repairing due to nonavailability of any component or accessory, labor problem, restrictions and regulations of the government, public movement, war and any other unavoidable/unforeseen circumstances including any force majeure event, specially vis-à-vis the import of supplies and raw material.
- Page 20 Noida-201304 (U. P.) India Ph. +91-120-4771000 Email : customercare@havells.com, Website: www.havells.com Customer Care No. 08045 77 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet ! CIN - L31900DL1983PLC016304...
