Summary of Contents for Havells Puro DX 10 L

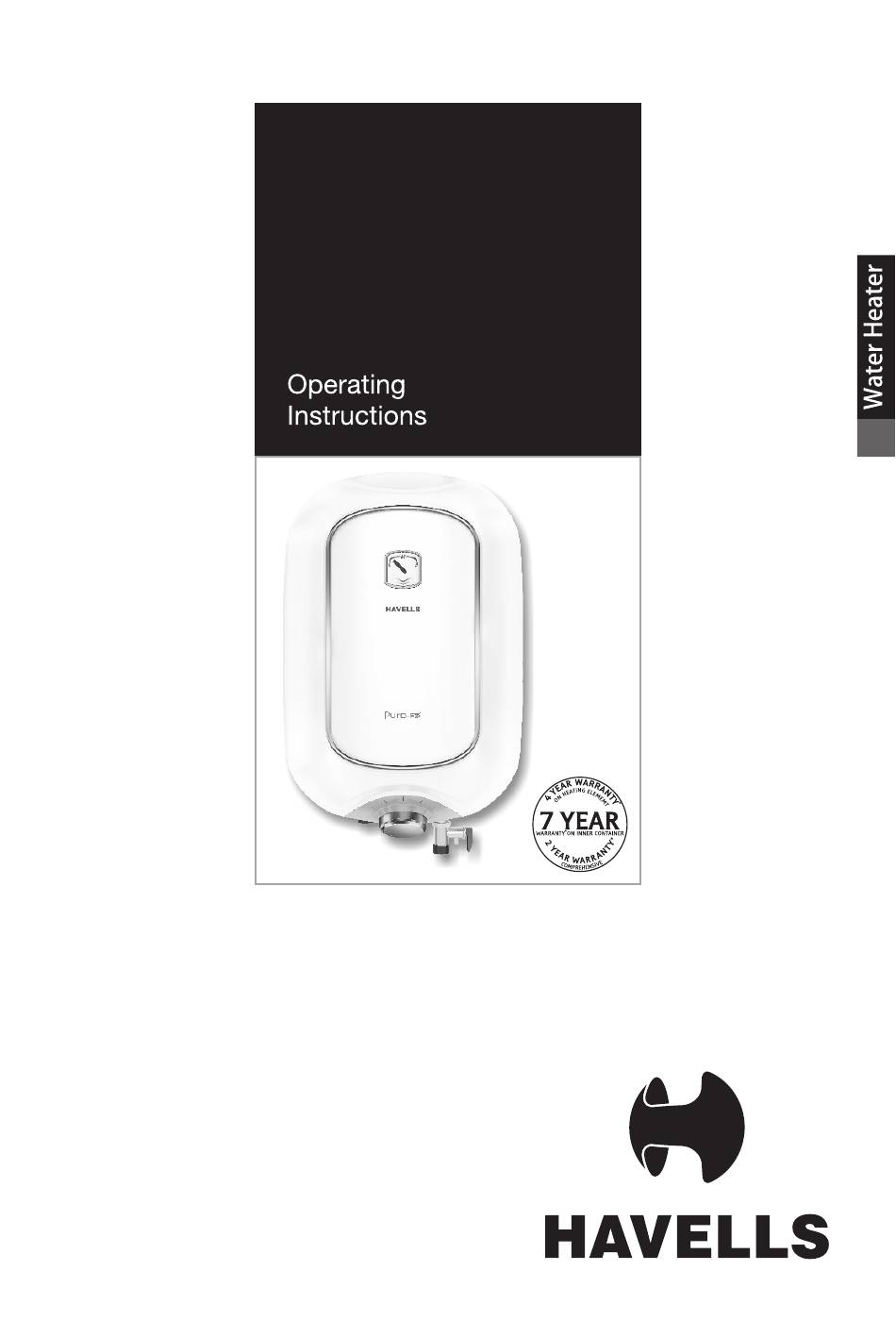

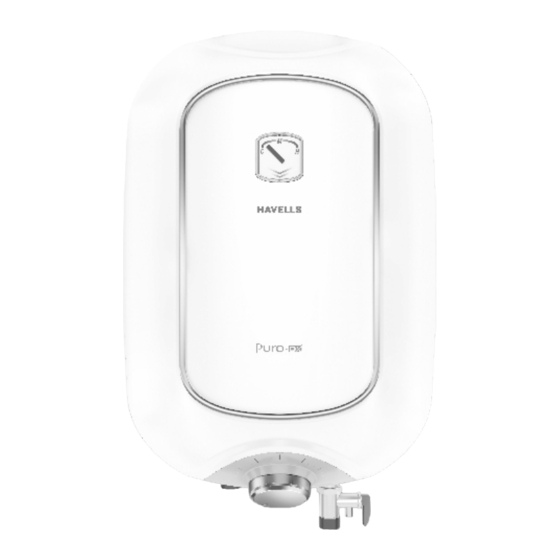

- Page 1 Storage Electric Water Heater Puro DX 10 L, 15 L & 25 L...
- Page 3 Parts List: Puro DX 1. High quality incoloy 800 glass coated heating element 2. Heavy guage inner tank 3. Fero glass coating layer 4. Heavy-Duty anode rod 5. Energy saving high density PUF insulation 6. Water tubes with whirlflow 7. Thermal cutout / Thermostat with adjustable temperature knob 8.
- Page 4 Model Puro DX 10 L 318 mm 460 mm 304 mm 62 mm Puro DX 15 L 329 mm 510 mm 330 mm 62 mm Puro DX 25 L 370 mm 590 mm 370 mm 62 mm *Note: All dimensions are in mm, dimensions tolerance +-5 mm...
- Page 5 Technical Specifications: S. No. Parameter Puro DX Rated Capacity in L 10 L 15 L 25 L Mounting Vertical Vertical Vertical Rated Voltage in Volt & 230 V, 50 Hz,1 Phase, AC frequency in Hz Rated Power Input in W 2000 W Rated Input Current in Ampere 8.7 A...
- Page 6 Key Features: Feroglass Made of Ultra thick superior quality steel. Feroglass...
- Page 7 with temperature indication by LED glow transition. Temperature Sensing LED knob Temperature gauge 11. Shock Safe Plug India's first integrated shock safe plug is designed to prevent injury to humans due to electric shocks, the plug will cut off the power immediately in case of any current leakage.
- Page 8 Installation & Safety: 5 cm 50 cm Mounting...
- Page 9 2. Do not install in the area of direct sunlight and water splashes. CAUTION CAUTION Picture-2 Water Connections CAUTION For connecting the inlet & outlet between water heater and bathroom fittings, use metal flexible pipe having plastic nut / plastic adapter. Connect cold water inlet to other end of MFV with metal flexible pipe having plastic nut / plastic adapter.
-
Page 10: Internal Wiring Diagram
CAUTION Electrical Connections 5. C 16 A Double Pole MCB or 16 A fuse must be used as a back up protection for overload. 6. To ensure proper functioning, use test button in the Shock safe plug at least once a month. 7. - Page 11 Operation of Water Heater: Maintenance & Cleaning: Knob Glow Color : Blue Heating Knob Glow Color : Amber Heated to Set Temperature...
- Page 12 If the water heater is not going to be used for a long time,...
- Page 13 This Water Heater carries 7 years warranty for Inner Container, 4 year warranty on Heating Element, 1 year warranty on Shock safe plug and 2 Year comprehensive warranty on other electrical components from the date of purchase against manufacturing defects. Free repair will be provided under the warranty period when the Water Heater is returned to our Service Centre, freight and cartage paid.
- Page 15 Expressway, Noida - 201304 (UP) India, Ph. +91-120-3331000, E-mail: marketing@havells.com, www.havells.com Consumer Care No.: 1800 11 0303, 1800 103 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet! CIN - L31900DL1983PLC016304.
