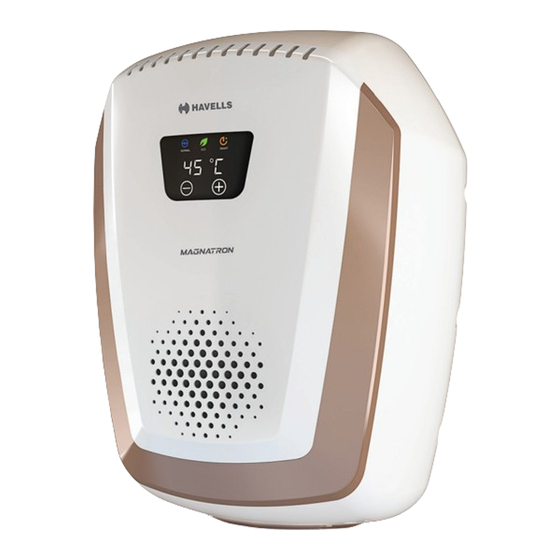

Summary of Contents for Havells MAGNATRON 15L

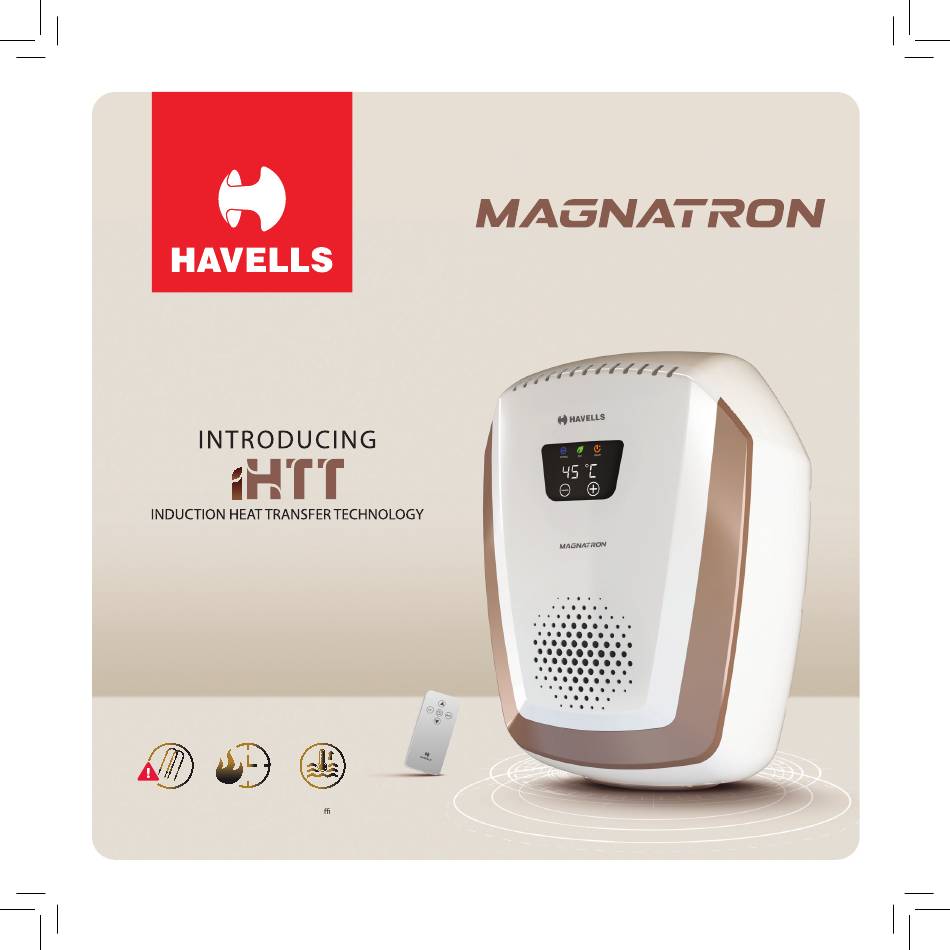

Page 1 No heating element Rapid heating Long lasting heating e ciency...
Page 2 Dear Customer, We welcome you to the ever growing HAVELLS family and congratulate you for being a prior- ity customer of HAVELLS. At Havells we believe in constant innovation and improvement; and keep strengthening our commitment to offer ‘technologically superior and premium products’...
Page 3 AN INTRODUCTION TO MAGNATRON WATER HEATER Introducing a uniquely designed and Industry’s First Water Heater with iHTT (Induction Heat Transfer Technology) which allows quick heating using electromagnetic waves. What’s more it comes with unique features that makes it an excellent choice: •...
Page 4 Parts List: Magnatron 15 L & 25 L 7. NTC pocket 1. Heavy guage inner tank 8. Cutout pocket 2. Fero glass coating layer 9. Energy saving high density PUF insulation 3. Display window 10. Water tubes with whirlflow 4. Fan 11.
Page 5 Model Magnatron 15 L 380 mm 501 mm 374 mm 62 mm Magnatron 25 L 400 mm 560 mm 413.5 mm 62 mm *Note: All dimensions are in mm, dimensions tolerance +-5 mm Dimensions in mm above refer to mechanical figures in this page.
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS: S.No. PARAMETER MAGNATRON 15 L MAGNATRON 25 L Rated Capacity in L 15 L 25 L Mounting Vertical Vertical 230 V, 1 Phase, 230 V, 1 Phase, Rated Voltage in Volt & frequency in Hz 50 Hz, AC 50 Hz, AC Rated Power Input in W 2000 W...
Page 7: Key Features
KEY FEATURES: Ferroglass coated tank with single weld line design: A. Made of Ultra thick superior quality steel. B. Provides more corrosion resistance and anti-rust property compared to standard inner tank designs resulting longer life. C. Single weld line on the inner tank eliminates the risk of water leakage. Heavy Duty anode rod protects tank from corrosion: With steel core, anode rod protects enameled tank from rust and corrosion.
Page 8: Safety Devices
Magnatron’s induction technology heats up the water from outside tank and thus ensure no contact with water and greater heating efficiency SAFETY DEVICES: Havells Water Heater is built-in with a host of Safety Devices to ensure your safety at all times. The operation of these devices are described below: A. Temperature sensor This device “cuts-off”...
Page 9: Installation And Safety
Customer can drain out the water from tank in case of prolonged non-use of water heater. INSTALLATION & SAFETY: A. Always use services of Havells Authorized person to install this unit B. For easy installation and servicing, enough space should be provided around this unit (5 cm from ceiling, 50 cm from sides &...
Page 10 B. In case of solid walls Follow process as below : 1. Drill hole in wall as shown Picture B. 2. Insert the nut/bolt assembly in drilled hole, take out the bolt (as shown) Picture B. 3. Fix the wall plate with the bolt and washer by testing till the wall plate is firmly fixed, in order to carry the weight of water heater safely (with water).
Page 11: Water Connections
2. Do not install in the area of direct sunlight and water splashes. 2. Do not install in the area of direct sunligh and water splashes. CAUTION CAUTION Picture-2 WATER CONNECTIONS CAUTION Do not connect the inlet directly to water lifting pump. Do not SWITCH ON water heater without water filled in tank 1.
Page 12: Electrical Connections
CAUTION Ensure no leakage of water through inlet and outlet joints. To Water Inlet Lever for drain out of water at annual maintenance Multifunctional To Flexible Pipe Safety valve Pressure reducing valve Picture 3 ELECTRICAL CONNECTIONS 1. This unit is provided with all internal connections / wiring made in the factory itself. 2.
Page 13: Internal Wiring Diagram
INTERNAL WIRING DIAGRAM - The schematic diagram shows the internal wiring. Make sure that the Water Heater is switched off and plugged-off from electrical supply before opening the Inspection cover. Follow the Internal wiring connections as shown in the diagram below while carrying out the Magnatron Internal Wiring Diagram maintenance.
Page 14 Mode Display OFF Display ON Remote a. Normal Mode: In this mode, one can adjust the temperature of the water heater from 25 °C to 75 °C. Only Blue LED glows, when the set temperature is above 55 °C. Blue and Green LED glows when the set temperature is 55 °C or below.
Page 15 ECO mode activation in Normal mode ECO mode activation in Smart mode c. Smart Mode : This mode enables user to get the desired temperature at desired time. Magnatron automatically does the calculation and gives desired hot water at your preset convenient time. Only Orange light glows when the user sets the temperature above 55 °C in this mode.
Page 16 Time adjustment slots are available with an interval of 30 minutes. Up ( ) and Down ( ) arrows on ▲ ▼ the remote will increase or decrease the set time by 30 minutes. Press the “Set” button on the remote or do not press anything for 5 seconds, your desired time will be saved.
Page 17: Maintenance And Cleaning
MAINTENANCE & CLEANING: 1. To benefit from the highest standards of services and to ensure your guarantee remains in focus, please always contact HAVELLS Authorized Franchisee 2. Always keep the inlet control open. 3. Never switch “ON” the water heater without water in it; it might damage the tank/water heater.
Page 18 However get this done through a authorized technician / plumber only. 3. Always get the water heater services once in a year from a Havells authorized service representative. 4. Use genuine spares when spares placement is necessary.
Page 19: Warranty Terms And Conditions
WARRANTY M/s. Havells India Ltd. (“Company”) hereby offers a limited warranty (“Warranty”) against manufacturing defect/s for a period of 2 (two) years on this Water Heater (“Product”), 5 (five) years on Induction Coil, 7 (seven) years on its inner container from the date of invoice on the terms and conditions provided hereinafter.
Page 20 Company shall not be held liable or be deemed to be in default for any delay or failure in performance resulting directly or indirectly from causes beyond its control including delay in repairing due to non-availability of any component or accessory, labour problem, restrictions and regulations of the government, public movement, war and any other unavoidable/unforeseen circumstances including any force majeure event, specially vis-à-vis the import of supplies and raw material.
Page 21 transit by the customer or which can be attributed to the fault of the customer. • Any harm resulting from any unforeseeable circumstances such as force majeure event etc. • Any harm caused due to any defect in any electrical/civil installation(s), wiring or third party products. •...
Page 22 Corp Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U. P.) India Ph. +91-120-4771000 Email : customercare@havells.com, Website: www.havells.com Customer Care No. 08045 77 1313 Join us on Facebook at www.facebook.com/havells and share your ways to save the planet ! CIN - L31900DL1983PLC016304...
