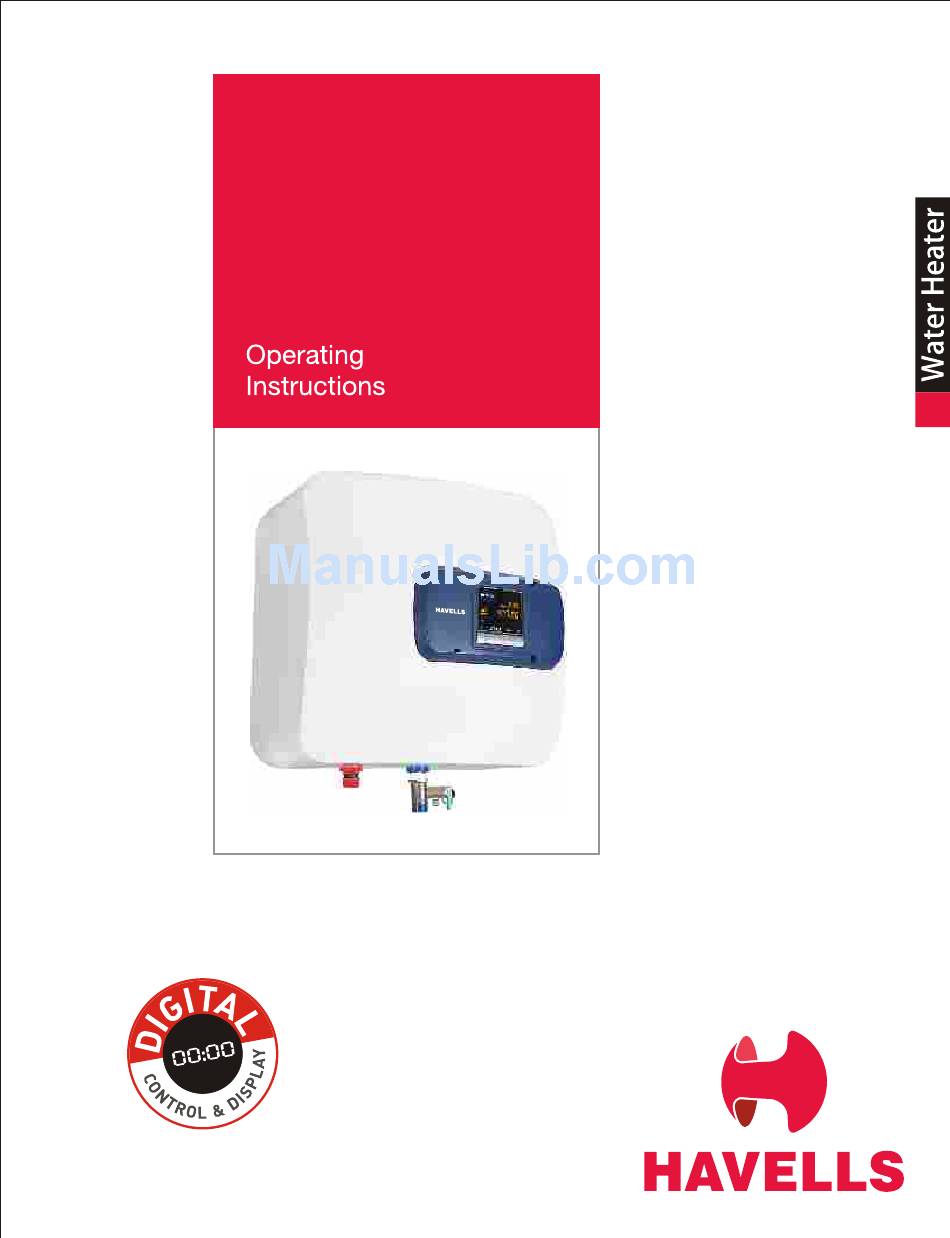

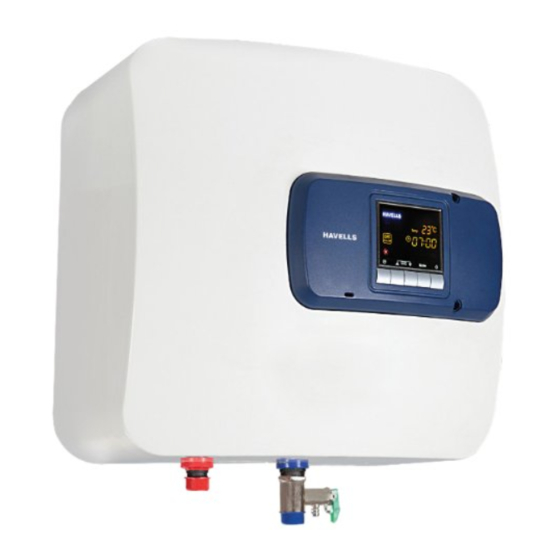

- Page 1 Bello Digital Storage Electric Water Heater 15/25L...
- Page 2 Dear Customer, We congratulate you on choosing a HAVELLS Electric Water Heater, one of the highly prestigious brand in India. Meticulously designed, using only the highest quality materials and components, your electric water heater is designed to have many years of trouble free service.
- Page 3 ..............................................................................................................................................1. Cold water inlet (blue) 5. Inner tank 2.
- Page 4 Digital Display and Control Panel Mode Digital Symbols and Associated Function [ Normal ] Daily Heating Mode As Normal Water Heater ( 24 Hrs Heating ) [ 55 ° C ] Ideal Temperature Setting with power saving Feature. [ Heating Time ] Heating Time Setting Mode ( Start heating on set time for one heating cycle) [ Off ] Off ( Auto Off) Time setting Mode ( Water heater power off on set time )
- Page 5 FUNCTION OF EACH KEYS AND DIGITAL DISPLAY ON SCREEN PANEL NOTE –On pressing, Time, Up-Down, Mode key, the digital symbol on panel will flash for 5 times To set Real time Press “Mode” key to Get the “Normal” symbol on Digital screen. Press “Time”...
- Page 6 SUN Symbol During the period of heating from 60°C to 65°C “SUN” symbol will appear and will keep flashing on digital screen. “SUN” symbol will disappear from screen once water Temperature reaches to 65°C Heating Symbol Energy Saving Temperature Setting Best Energy Saving Temperature setting proposed is “55°...
- Page 7 NOTE : Be sure that On digital screen “ OFF ( Auto-Off)” symbol is appearing at the end. Do Not “Turn Off” the Power switch near the Plug. With this setting performed by you, Water heater will get Automatically “Power On” from Digital Panel at 05:00 am ( Morning) and heat up the water inside to desired temperature set by you ( Say 65°C ).
- Page 8 Bello Mode All figs. in mm Model Bello Digital -15 22.45 Bello Digital -25 371.6 22.45...
- Page 9 Technical Specifications : S.No. PARAMETER Bello Digital-15 Bello Digital-25 Rated Capacity in Ltr. Mounting Vertical Vertical Rated Voltage in Volts & 230V, 1Ph 50 Hz A.C. 230V, 1Ph 50 Hz A.C. frequency in Hz. Rated Power Input in Watts 2000...
- Page 10 Key Features : 1. Vitreous Enamel Coated Tank with single Weld Line Design: A. Made of Ultra thick super cold rolled steel plates 2 mm thick B. Provides more corrosion resistance and anti-rust property compared to standard inner tank designs resulting in longer life Vitreous Enamel Coating C.
- Page 11 Digital panel for controls and display Digital Display Safety Devices : Havells Water Heater is built-in with a host of Safety Devices to ensure your safety at all times. The operation of these devices are described below : A. Thermostat Capillary type thermostat: This device “cut-off”...
- Page 12 D. Multi Function Valve (MFV) 1. This valve prevents the built-up of excessive pressure within the water heater by releasing water from the drain. 2. It also acts as a non-return valve to avoid the return of water from the water heater back to supply, thereby prevent the dry heating.
- Page 13 Water Connections CAUTION Do not connect the inlet directly to water lifting pump. Do Not SWITCH ON water Heater without water filled in tank. 1. In case inlet water pressure is more than 5.5MPa or water pressure head 80 meter, install the dead weight valve before inlet as shown in Picture 2 (not provided with this unit).
- Page 14 Maintenance & Cleaning : 1. To benefit from the highest standards of service and to ensure your guarantee remains in focus, please always contact HAVELLS approved dealer or HAVELLS Authorised Franchise. 2. Always keep the inlet control valve open. 3. Never switch “ON” the water heater without water in the heater. It will damage the heating element.
- Page 15 2. To minimize scaling of heating element & the tank, (which takes place rapidly in areas of hard water), drain the water from heater unit periodically. However get this done through a qualified technician /plumber only 3. Always get the water heater serviced once in a year from a Havells authorized service representative 4. Use genuine spares when spares replacement is necessary.
- Page 18 QRG Towers, 2D, Sector-126, Expressway, Noida - 201 304. U.P. (INDIA) Toll Free No. 1800 103 1313 E-mail : customercare@havells.com, www.havells.com Regional & Branch Offices: NORTH - REGIONAL OFFICES: Delhi: Tel: 011-23888200, Fax: 23888250 Chandigarh : Tel: 0172-4232400 -401, Fax: 0172-...
