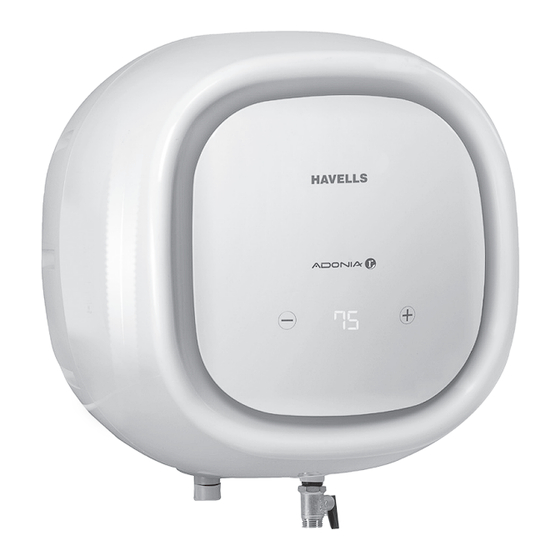

- Page 1 Operating Instructions Storage Electric Water Heater Adonia r 10 L, 15 L & 25 L...
- Page 2 Dear Customer, We congratulate you on choosing a HAVELLS Electric Water Heater, one of the highly prestigious brand in India. Meticulously designed, using only the highest quality materials and components, your electric water heater is designed to have many years of trouble free operation.
- Page 3 7.ii High quality incoloy 800 glass coated heating element Heavy guage inner tank Ferro glass coating layer Heavy-Duty anode rod Energy saving high density PUF insulation Water tubes with whirlflow i. Remote Control for temperature adjustment and ON/OFF control ii. Thermostat with feather touch keys for temperature adjustment (In Adonia Digital) Multifunctional safety valve 4 N Bolt Flange...
-
Page 4: General Arrangement Drawing
General arrangement drawing: Model ADONIA r 10 L 390 mm 390 mm 319 mm 172 mm 100 mm (G ½) 12.7 mm ADONIA r 15 L 390 mm 390 mm 358 mm 172 mm 100 mm (G ½) 12.7 mm... - Page 5 Technical Specifications: S.No. PARAMETER Adonia r Rated Capacity in L 10 L 15 L 25 L Mounting Vertical Vertical Vertical Rated Voltage in Volt & 230 V, 1 Ph, 230 V, 1 Ph, 230 V, 1 Ph, frequency in Hz 50 Hz, AC 50 Hz, AC 50 Hz, AC...
- Page 6 Key Features: Remote Control: Switching ON/OFF water heater. Temperature change using remote. Temperature Display: Color changing LEDs indicates heating of water and related temperature. Adonia Remote – Smooth transition of LED color from blue to amber and digital display to show the water temperature. Ferroglass coated tank with single weld line design: A.
- Page 7 Allows manual setting for heating of water between 25 °C to 75 °C Safety Devices: Havells Water Heater is built-in with a host of Safety Devices to ensure your safety at all times. The operation of these devices are described below:...
- Page 8 Installation & Safety : A. Always use services of qualified plumber/electrician to install this unit. B. For easy installation and servicing enough space should be provided around this unit (5 cm from ceiling, 50 cm from sides & minimum 1.8 m from ground). C.
- Page 9 Mounting Now the water heater can be hooked on the wall bracket. 1. After hooking on bracket, tug downward the water heater and ensure both fingers of bracket are properly seated in the mounting slot.
- Page 10 Water Connections CAUTION Do not connect the inlet directly to water lifting pump. Do not SWITCH ON water heater without water filled in tank 1. In case inlet water pressure is more than 0.8 MPa or water pressure head 80 metre, install the dead weight valve before inlet as shown in Picture 2 (not provided with this unit).
- Page 11 Electrical Connections 1. This unit is provided with all internal connections / wiring made in the factory itself. 2. The water heater is provided with a supply cord, with an in-built ELCB and a 3 pin plug top of 16 A 3.
- Page 12 Maintenance & Cleaning: 1. To benefit from the highest standards of service and to ensure your guarantee remains in focus, please always contact HAVELLS approved dealer or HAVELLS Authorised Franchise 2. Always keep the inlet control valve open.
- Page 13 Functioning of Remote: Pressing the switch ON/OFF button would turn on / off the geyser. Display on geyser will turn -- while it is turned off using remote. Water Heater takes temperature inputs in 5 degree progressions (e.g.: 25 °C, 30 °C, 35 °C, 40 °C, 45 °C, 50 °C, 55 °C, 60 °C, 65 °C, 70 °C & 75 °C). If user presses ±...
- Page 14 However get this done through a qualified technician /plumber only 3. Always get the water heater serviced once in a year from a Havells authorized service representative 4. Use genuine spares when spares replacement is necessary.
- Page 15 Warranty This Water Heater carries 7 years warranty for Inner Container, 4 year warranty on Heating Element, 1 year warranty on Shock safe plug and 2 Year comprehensive warranty on other electrical components from the date of purchase against manufacturing defects. Free repair will be provided under the warranty period when the Water Heater is returned to our Service Centre, freight and cartage paid.
- Page 16 Expressway, Noida - 201304 (UP) India, Ph. +91-120-3331000, E-mail: marketing@havells.com, www.havells.com Consumer Care No.: 1800 11 0303, 1800 103 1313 (All Connections), 011-4166 0303 (Landline) Join us on Facebook at www.facebook.com/havells and share your ways to save the planet! CIN - L31900DL1983PLC016304.
