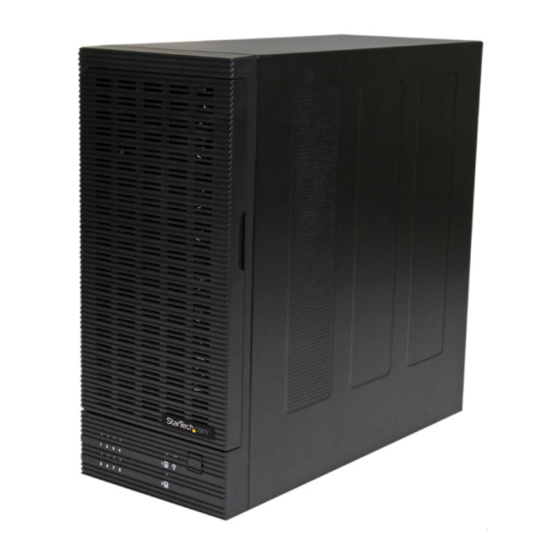

USB 3.0/eSATA 8-Bay Removable 2.5/3.5"
SATA Hard Drive Enclosure with UASP
S355BU33ERM / S358BU33ERM
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/10/2015
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S355BU33ERM
Summary of Contents for StarTech.com S355BU33ERM
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/10/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View - S358BU33ERM..............................2 Rear View - S355BU33ERM..............................3 Introduction ....................4 Packaging Contents ..........................4 System Requirements ..........................4 Hardware Installation ................5 How to Use ....................10 Connecting the Hard Drive ........................10 LED Indicators............................. -
Page 4: Product Diagram
Product Diagram Front View Drive Door Power Button Drive Activity LEDs / Drive Interface LEDs HDD Ready LED USB / eSATA LED Instruction Manual... -
Page 5: Rear View - S358Bu33Erm
Rear View - S358BU33ERM USB 3.0 Host eSATA Host Interface Port Interface Port Power Cable Port Instruction Manual... -
Page 6: Rear View - S355Bu33Erm
Rear View - S355BU33ERM eSATA Host Interface Port USB 3.0 Host Power Cable Port Interface Port Instruction Manual... -
Page 7: Introduction
Apple® Mac® OS 9.x/10 • Linux® • Google Chrome OS™ • (S355BU33ERM) Up to 8 X 2.5/3.5” SATA Hard Drives / Solid State Drives (HDD/SSD) • (S358BU33ERM) Up to 5 x 2.5/3.5” SATA Hard Drive / Solid State Drives (HDD/SSD) Instruction Manual... -
Page 8: Hardware Installation
Hardware Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components, or discharge yourself of any static electricity buildup by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 9 3. Slide the drive tray out of the slot by gently grasping the drive tray arm and pulling the tray out toward you. 4. Install your 2.5” or 3.5” hard drive in the hard drive tray. Note: Two types of drive screws are included: larger screws for 3.5” drives and smaller screws for 2.5”...
- Page 10 a) If you are installing a 2.5” HDD/SSD i. Line up the bottom-facing drive mount holes on your HDD/SSD, with the bottom drive holes on the drive tray. Instruction Manual...
- Page 11 ii. Using a Phillips head screwdriver (not included), drive four of the 2.5” drive screws through the bottom drive holes on the drive tray into the mount holes on your HDD/SSD. b) If you are installing a 3.5” HDD i. Line up the side-facing drive mount holes on your HDD with the side drive holes on the drive tray.
- Page 12 6. Using the included Power Cable, connect the Power Cable Port on the S355BU33ERM/S358BU33ERM to an available power outlet. Note: The S355BU33ERM requires that you select the correct voltage. Use a screwdriver or pen to select 115 V or 230 V, depending on your needs.
-
Page 13: How To Use
7. Connect the S355BU33ERM/S358BU33ERM to your computer system using the included USB 3.0 cable or the eSATA cable depending on your desired host connection. How to Use Connecting the Hard Drive Once the enclosure has been attached to a computer and powered on, your computer system will automatically recognize the drive(s) and it will be accessible as though it were installed in the system internally. -
Page 14: Initializing The Hard Drive
Mac OS X To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the USB storage icon on the desktop and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the enclosure/drive from the computer. -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
