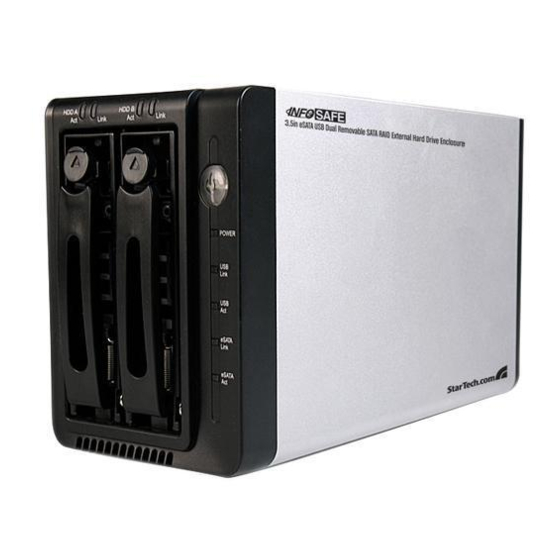

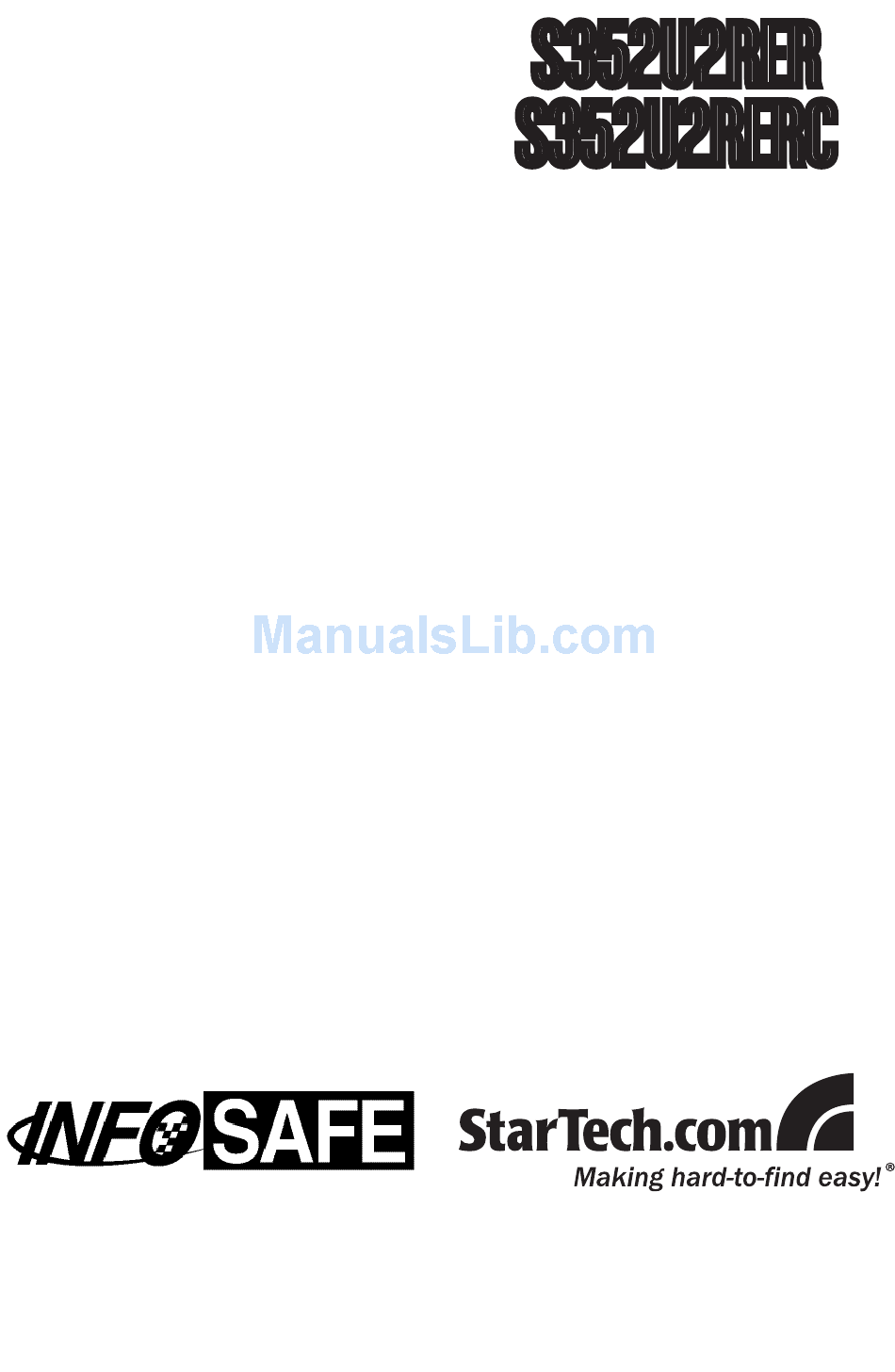

- Page 1 S352U2RER S352U2RERC Instruction Manual Dual SATA External Hard Drive Enclosure 3.5” eSATA/USB Dual Removable SATA RAID External Hard Drive Enclosure...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............3 eSATA Controller Card Installation (S352U2RERC only) ....4 Driver Installation .................5 Verifying Installation ..............5 SteelVine Manager Installation ............6 Configuration ..............7 Mode Selection ................7 SteelVine Manager Operation .............8 RAID Storage Policies ............ -
Page 4: Introduction
Introduction Packaging Contents • 1 x S352U2RER enclosure • 1 x eSATA cable • 1 x USB A to B cable • 1 x Screw Kit • 1 x Power Adapter with power cord • 1 x Instruction Manual •... -
Page 5: Installation
Installation Front View Power Button Power LED USB Link LED USB Activity LED eSATA Link LED eSATA Activity LED Rear View DC Power In (12V) SYS Reset USB Connector eSATA Connector RAID Switch Fan Switch... -
Page 6: Hardware Installation
Hardware Installation Remove the drive trays from the enclosure, by pressing the release button, then pushing down on the arms to eject them and slide the trays out. Remove the brace from the trays, then secure the hard drive into the trays with the supplied screws. -
Page 7: Esata Controller Card Installation (S352U2Rerc Only)
eSATA Controller Card Installation (S352U2RERC only) - PEXESATA1 SATA eSATA Action Setting Set J1-J4 jumpers to pins 1 and 2 Enable external eSATA port J1-J4 Enable internal Set J1-J4 jumpers to pins 2 and 3 SATA port There are two SATA ports available on the PEXESATA1 card - one internal (SATA) and one external (eSATA). -
Page 8: Driver Installation
Place the cover back onto the computer. Insert the power cable into the socket on the power supply. Driver Installation Windows 2000/XP/Server 2003 When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD-ROM drive. If you are prompted to connect to Windows Update, please select the “No, not this time”... -
Page 9: Steelvine Manager Installation
SteelVine Manager Installation Insert the included CD, and AutoPlay will start. Select the Install option and proceed through the installation process. Once complete, you should have the tray icon present, from which you can launch the SteelVine Manager utility. -
Page 10: Configuration
Configuration Mode Selection Make sure the enclosure is powered on and not connected to a computer system. Set the DIP switches to the appropriate mode: SYS Reset Switch Press the SYS Reset button. -
Page 11: Steelvine Manager Operation
GUI mode. Install the SteelVine Manager from the included CD, or download the latest version from the StarTech.com website (www.startech.com). Launch the SteelVine Manager utility or click on the icon in the system tray (Windows only). -
Page 12: Raid Storage Policies
RAID Storage Policies NOTE: The maximum supported partition size for 32-bit Windows systems is 2 TB. Windows cannot detect multiple drives in any RAID mode if the total size exceeds 2TB. Hard drives in non-RAID mode (JBOD) are supported up to 2TB. GUI MODE (factory default) GUI mode allows you to use the SteelVine Manager GUI to set the storage policy and other settings as well as monitor the status of... -
Page 13: Big Mode
BIG MODE BIG concatenates a series of physical hard drives into a single large volume; Hard drives A and B are combined with a storage capacity that is equal to the sum of the two drives. There is no data redundancy, so if one of the disks fail, the data on that disk will be lost. - Page 14 RAID 0 (Fast) RAID0 is a combination of two physical hard drives, where the data is striped (split) between them. It presents the best data speed, as the data is split and written to both disks at the same time, but there is no data redundancy.
-
Page 15: Raid 1 (Safe)
RAID 1 (Safe) RAID1 allows the enclosure to automatically copy data to both hard drives. It stores all data in duplicate on separate drives to protect against data loss due to drive failure. It provides the highest level of data protection for critical data that you cannot afford to lose if a hard drive fails. -
Page 16: Raid / Safe33
RAID / SAFE33 SAFE33 creates two virtual volumes; one SAFE volume and one BIG volume. This should be used when you need one volume for critical data and another for non-critical. It reduces the cost of additional hard drives in operations where non-critical data could be lost without severe consequences. -
Page 17: Raid / Safe50
RAID / SAFE50 SAFE50 creates two virtual volumes; one SAFE volume and one BIG volume. This should be used when you need one volume for critical data and another for non-critical. It reduces the cost of additional hard drives in operations where non-critical data could be lost without severe consequences. -
Page 18: Specifications
Specifications SATA revision 2.0 Bus Interface USB 2.0 Chipset Silicon Image SiI5744 1 x eSATA 7-pin External Connectors 1 x USB type B Power, USB Link, USB Act., eSATA Link, eSATA Act. LEDs HDD A Act., HDD A Link HDD B Act., HDD B Link Cooling Fan 1 x 50mm Ball Bearing eSATA: 3 Gbps... -
Page 19: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 20 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
