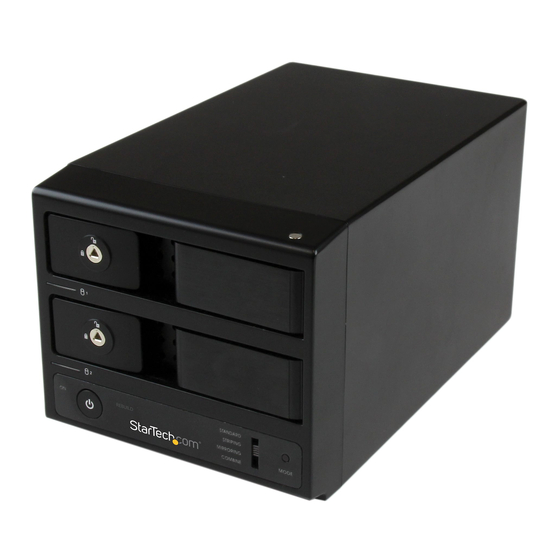

USB 3.0/eSATA Dual 3.5" SATA HDD
Trayless Enclosure with UASP
S352BU33RER
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/28/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S352BU33RER
Summary of Contents for StarTech.com S352BU33RER
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/28/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Specifications ..................3 Technical Support ..................4 Warranty Information ................4 Instruction Manual... -
Page 4: Product Diagram
Product Diagram Front View 1. Drive 1 Lock 2. Drive 1 Latch 3. Drive 1 Door 4. Drive 1 Activity LED 5. Drive 2 Lock 6. Drive 2 Latch 7. Drive 2 Door 8. Drive 2 Activity LED 9. Power Button 10. - Page 5 Back View 1. Drive Fan 2. eSATA port 3. USB 3.0 port 4. Power adapter port Instruction Manual...
-
Page 6: Introduction
Introduction Packaging Contents • 1x USB 3.0/eSATA Hard Drive Enclosure (S352BU33RER) • 1x eSATA Cable • 1x USB 3.0 Cable • 2x Drive Door Keys • 1x Universal Power Adapter (NA/UK/EU) • 1x Instruction Manual System Requirements • 1x Computer system with available USB 3.0 (5 Gbit/s) port/USB 2.0 port (480Mbps) or eSATA port Microsoft®... -
Page 7: Hardware Installation
Hardware Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 8 c) Gentley slide your desired 3.5” Hard Drive into the drive bay with the label facing up until you feel resistence, and the drive door begins to close over the drive. d) While holding the drive latch open, swing the drive door closed. Once the drive door is completely closed, release the drive latch.
- Page 9 Ensure the S352BU33RER is powered off. b) Adjust the RAID Control Switch to your desired RAID configuration. (See list of RAID configurations) c) Press and hold the RAID Mode Button while turning on the S352BU33RER on by pressing the Power Button. REBUILD Note: RAID configuration is only required for initial configuraiton or if you would like to change your RAID configuration.
-
Page 10: Led Indicators
Available RAID Configurations The S352BU33RER enclosure supports 4 different RAID configurations. RAID is a storage technology that combines multiple hard drives into a single unit for secure data redundancy, increased volume size and/or improved performance. Descriptions and benefits for each available RAID configuration are listed below: Normal - JBOD In JBOD, no RAID configuration is set and both drives appear as individual disks. -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
