The COM400CC COMMUNICATOR
receiver/transmitter designed to be used with
the HME Wireless Drive-Thru Audio System 400.
This Communicator is worn around the user's
collar, and a lightweight headset plugs into a
connector on the unit.
These instructions provide detailed information for
proper use of the COM400CC. Setup information
for the audio system installer is in Appendix A.
I.
COM400CC CONTROLS AND CONNECTORS
A. Controls
HM ELECTRONICS, INC.
OPERATING INSTRUCTIONS
is a
®

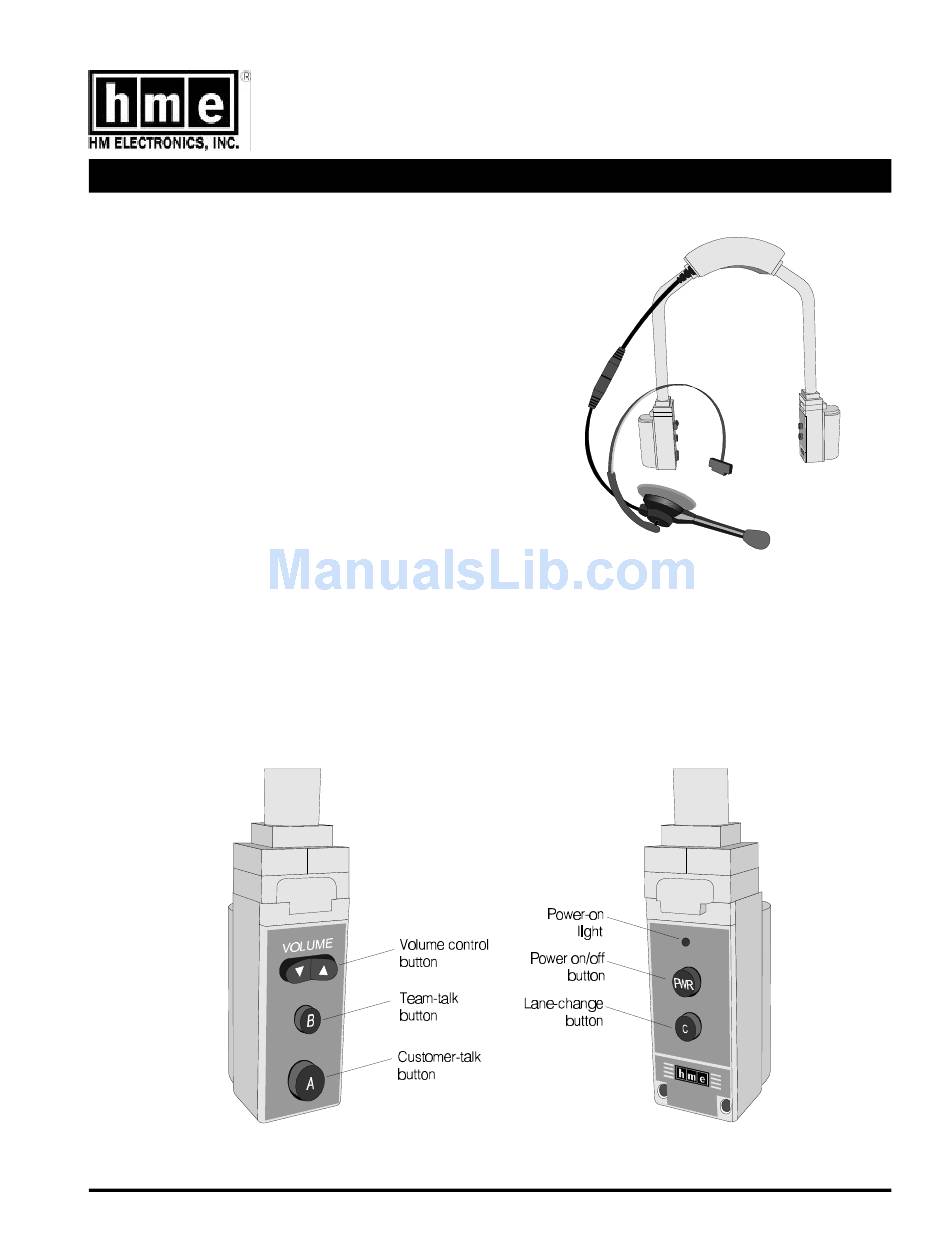

Figure 2. COM400CC control buttons
6675 Mesa Ridge Rd., San Diego, CA 92121 USA
COM400CC
COMMUNICATOR

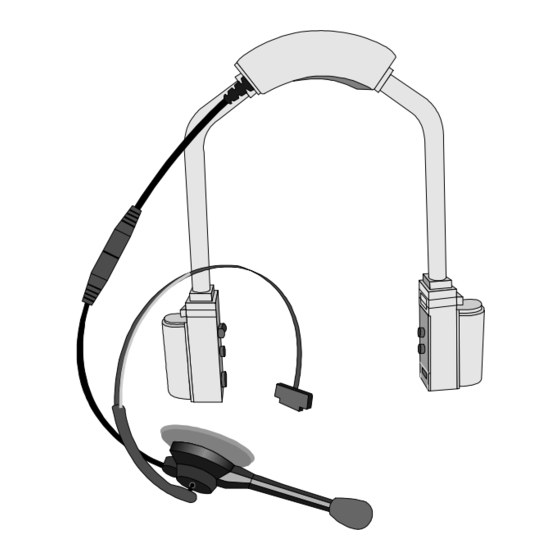

Figure 1. COM400CC COMMUNICATOR
Phone: 1-800-848-4468
! !
® ®
®
Fax: (858) 552-0172
HME# 400436
Rev B
9/13/00
Advertisement
Table of Contents
Related Manuals for HME COM400CC COMMUNICATOR
Summary of Contents for HME COM400CC COMMUNICATOR
- Page 1 The COM400CC COMMUNICATOR is a ® receiver/transmitter designed to be used with the HME Wireless Drive-Thru Audio System 400. This Communicator is worn around the user’s collar, and a lightweight headset plugs into a connector on the unit. These instructions provide detailed information for proper use of the COM400CC.
- Page 2 Figure 3. Cable connectors showing matching pin positions ® ® WEARING THE COM400CC COMMUNICATOR ! Place the Communicator collar unit around your neck and put the headset on your head as shown in Figure 4. ! Adjust the headset band so it rests securely on top of your head, with the microphone to the side of your mouth.
- Page 3 ® ® III. OPERATING THE COM400CC COMMUNICATOR To operate the Communicator, use the control buttons shown in Figure 2 as follows: In both single and dual drive-thru operations, Communicator button “A” is for communica- tion with the customer, and button “B” is for communication with other crew members wearing Communicators.
- Page 4 C. Dual Drive-Thru, Full-Duplex Operation ACTION RESULT If you are using the COMMUNICATOR Customer hears your voice and you hear ® latching feature: customer’s voice (two-way conversation). Press and release button “A” to latch Everyone wearing Communicators set to the communication channel open for speaking and same channel hears the communication.
-
Page 5: Charging The Batteries
CHARGING THE BATTERIES When there are good batteries in the COMMUNICATOR and the power is on, the red ® light above the power (PWR) button will be lit. This light only indicates the power is on. It does not indicate how much power is left in the batteries. As the batteries weaken during routine use, you will hear a repeating beep in the earpiece, indicating the batteries need to be replaced. - Page 6 Battery charging takes approximately 2 hours and 20 minutes. When a battery is fully charged and ready for use, its red light will go off and the green Ready light next to it will go on. Refer to Figure 7. Figure 7.
- Page 7 Clean the headset and cable with a damp sponge sprayed with houshold cleaner. The foam muff on the headset earpiece is easily replaced for sanitary purposes. To order extra foam muffs, call your local HME sales representative. The battery contacts...
-
Page 8: In Case Of Problems
Connector VII. FCC NOTICE HME wireless radio frequency systems are type-accepted in the United States under Part 90 of the Federal Communications Commission (FCC) Code of Federal Regulations, and type-approved in Canada by Industry and Science Canada. Because licensing depends on the system’s application, it is the user’s responsibility to apply for a license from the... -
Page 9: Installer Setup
APPENDIX A INSTALLER SETUP Charge Communicator batteries: Before using the COM400CC COMMUNICATOR , charge all ® batteries in the battery charger as described on pages 5 and 6. Check/Set Communicator frequency: Check the Communicator frequency to be certain it is the same as the audio system base station frequency.
