1
2
3 4 5
7
8

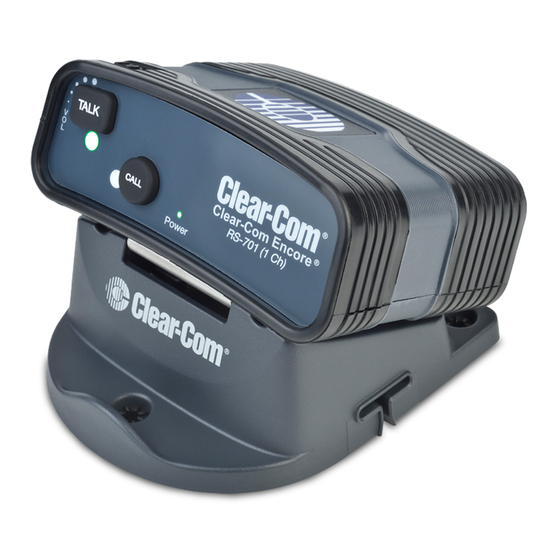

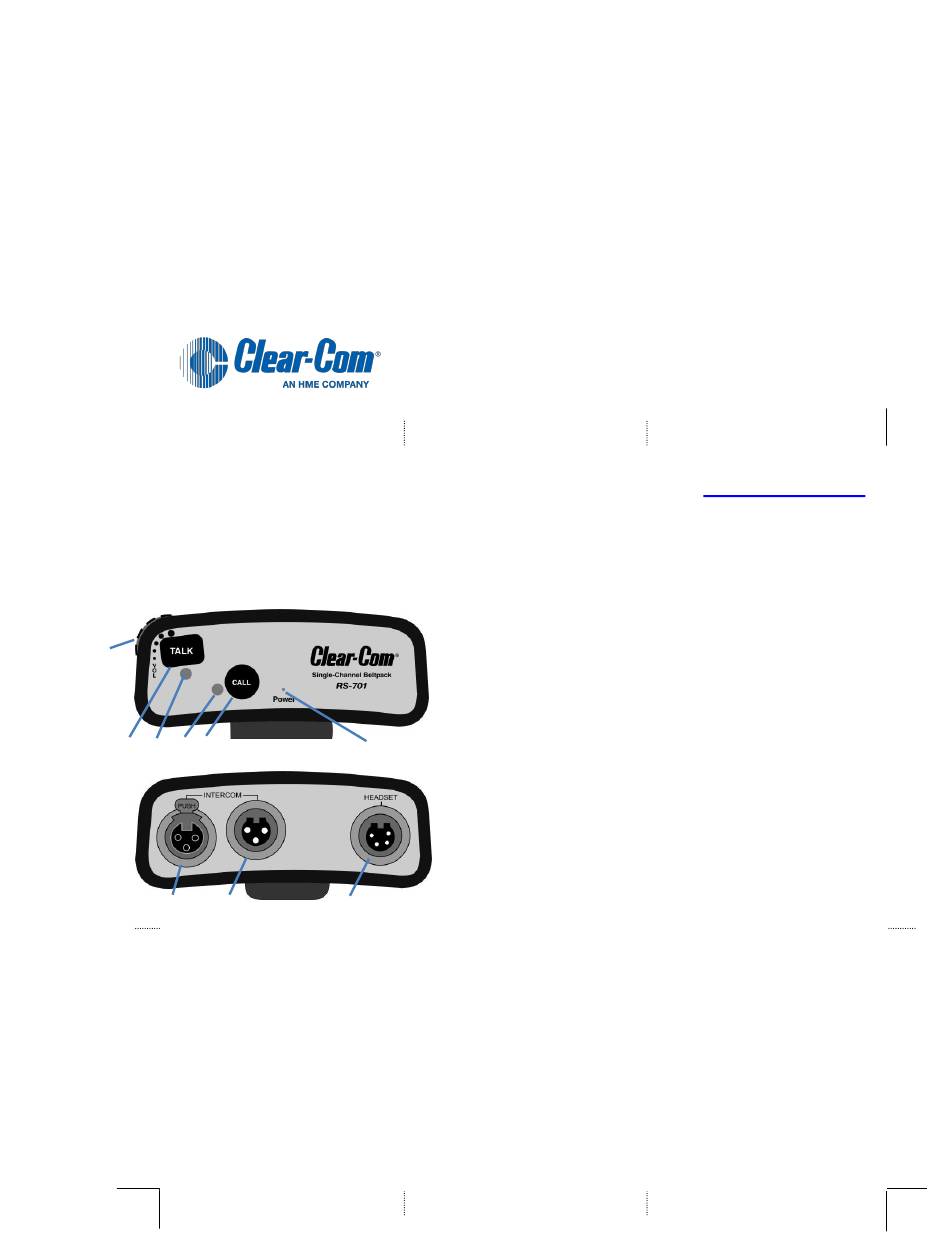

Controls, LEDs & Connectors
1
Volume control – rotates to adjust volume
2
Talk button – talk to all on intercom
level
channel
Press and hold while talking, or tap to latch on
Talk LED – lights when intercom channel active
3
Call LED – lights when call button is pressed
4
Call button – alerts all on intercom channel
6
6
Power LED – lit while beltpack power is on
7
Intercom cable receptacle
8
(3-pin XLR male)
9
Headset cable receptacle
9
(4-pin XLR male)
www.clearcom.com
(3-pin XLR female)
Intercom cable receptacle
RS-701
BELTPACK
QUICK
REFERENCE
GUIDE
5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HME Clear-Com RS-701
Summary of Contents for HME Clear-Com RS-701
- Page 1 RS-701 BELTPACK QUICK REFERENCE GUIDE www.clearcom.com Controls, LEDs & Connectors Volume control – rotates to adjust volume Talk button – talk to all on intercom level channel Press and hold while talking, or tap to latch on Talk LED – lights when intercom channel active Call LED –...
- Page 2 Intercom connector pins Headset connector pins 1 Common 1 Mic− / DC− 2 Power 2 Mic+ 15V-30V 3 Spkr− 3 Signal 4 Spkr+ / DC+ (15V 20mA) DIP Switch settings & Sidetone adjustment Loosen slotted screw inside keyhole in belt clip, on back of beltpack.
