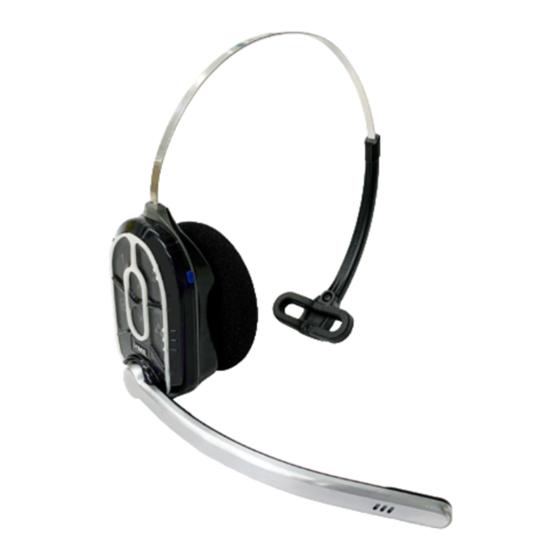

The AIO HS7000 Headset is an all-in-one headset
for communicating with customers in a drive-th-
ru lane environment and with fellow employees
privately or in group chats. It uses one BAT70
lithium-ion battery. With moderate use in a normal
environment, the headset will operate for approxi-
mately six to eight hours on a single battery charge
and will alert you when the battery charge is low.
SETUP AND OPERATION
Volume Up/Unmute
Volume Down/Mute
Pairing your Headset (AIO HS7000):
1. Insert a fully charged BAT70 battery into
the battery holder of the headset (see Fig.
1). The battery clicks securely into place.
2. Press the blue power button to turn on the
headset (see Fig. 1). The Headset status
LED (Fig. 1) turns on green and blinks,
alternating between green and red, indi-
cating you now need to pair the headset.
3. Hold the keypad side of the headset
against the Headset Pairing Ring (solid blue
circle) on the Base Station to pair. Pairing
begins automatically as soon as the head-
set is sensed. The circular blue light turns
a swirling green to indicate pairing is in
progress (see Fig. 2).
4. When the Headset Pairing Ring turns solid
green, pairing is successful. The headset
status LED also turns solid green. Registra-
tion also happens automatically with the
initial pairing. See note if pairing fails.
5. The Select Your Position screen appears
(see Fig. 3). Tap on a pane to select your
position. This selection assigns you to a
channel.
If you are selecting
Note:
DRIVE-THRU 2
for stores with two lanes
also have the option of
mode (see Fig. 3), which saves you from
having to manually connect with a new
customer by tapping the headset button.
HM ELECTRONICS, INC.
2848 Whiptail Loop, Carlsbad, CA 92010 USA
Phone: 1-800-848-4468
Fax: 858-552-0172
Website: www.hme.com
Email: support@hme.com
Quick Reference Installation Guide
HEADSET
Side View
Lane 1
Lane 2
HME
Action
(or
DRIVE-THRU 1
),
you
AUTO HANDS-FREE
NEXEO AIO HS7000 HEADSET
Status
LED
Battery Release
Button (gray)
Group Chat
Battery
Fig. 1
BASE STATION
Fig. 2
Note: If pairing fails (assuming the headset is on, and the headset
battery is fully charged), try again. Hold the headset steadily centered
and flush against the Headset Pairing Ring (headset movement and
distance from the Pairing Ring can cause pairing errors).
HEADSET
Front View
Power Button
(blue)
*
Battery not included
Headset
Sensor
Solid Blue: Sensor
idle until headset is
sensed
Headset
Swirling Green
Pairing
Pairing in progress
Ring
Solid Green: Pairing
Headset
successful. Begin
Pairing
using headset
Ring
Headset
Swirling Red: Pairing
Pairing
unsuccessful. Try again
Ring
HME# PUB - 000xx
Rev A 09/01/20
