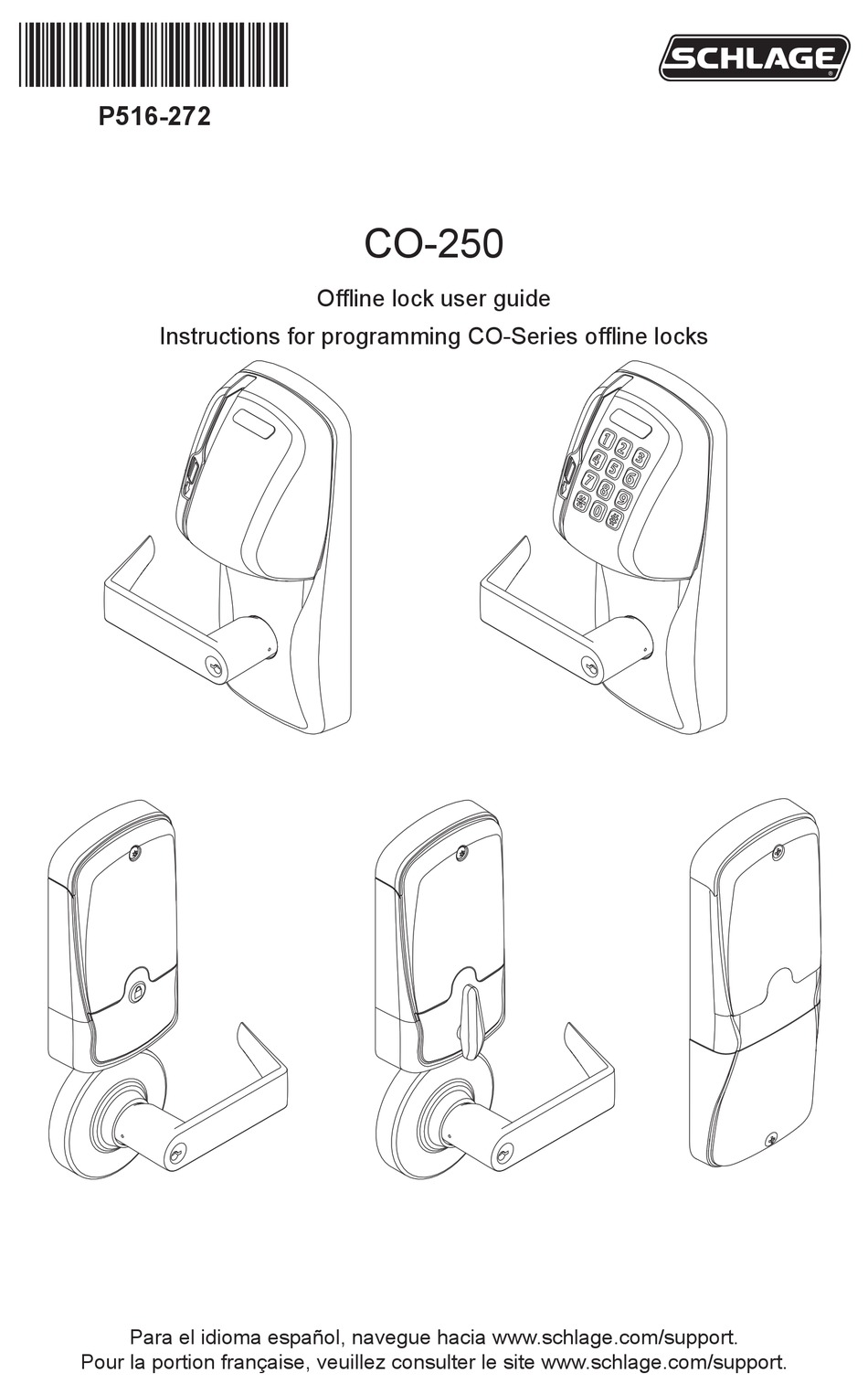

- Page 1 *P516-272* P516-272 CO-250 Offline lock user guide Instructions for programming CO-Series offline locks Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.
-
Page 2: Table Of Contents
UL Listed product, in accordance with the requirements of the Standards UL 294 and ULC S319. This product has been evaluated for ULC-S319 Class 1. 2 • Schlage • CO-250 user guide... -
Page 3: Overview
Overview The Schlage CO-250 is an off-line electronic lock in the CO-Series product line. • This product is listed for UL294 and ULCS319. • The lock is powered by four (4) AA batteries. See Batteries on page 8 for more information. -
Page 4: Getting Started
Schlage Utility Software (SUS) The Schlage Utility Software is used for programming and setup only. The Schlage Utility Software (SUS) is used to configure locks. The SUS configures lock functions that cannot be configured with manual programming, and is used to transfer data files between the access control software and locks. -
Page 5: Construction Access Mode
PIN of 13579 and “ # ”, which can be used for installation, testing and construction access. To test, enter 13579 and “ # ”. The Schlage button will blink and the lock will unlock. The default PIN is automatically deleted when a new programming credential... -
Page 6: Test Lock Operation
1. For locks with a keypad, press any number key. The lock will beep and the Schlage button will blink red. 2. The Schlage button will blink red twice when a credential is presented and the lock is in factory default mode, and has no access programming. -
Page 7: Reset To Factory Defaults
Level 1 factory default reset will not reset configurations and settings in the reader. 1. Press and hold the Schlage button. Wait for the lock to beep twice and two green blinks of the Schlage button, indicating confirmation. 2. After confirmation signals, release the Schlage button. -
Page 8: Batteries
Batteries To install or replace alkaline batteries For coin cell battery installation or replacement, refer to instructions at www.schlage. com/support. Battery voltage can be checked with the SUS. Changing batteries does not affect any programmed data. 1. Remove the battery cover. -
Page 9: Battery Failure Modes
Lock unlocks and remains unlocked until batteries are replaced. Fail Locked Lock locks and remains locked until batteries are replaced. LED reference Most LED and beep indicators are configured using the SUS. See the Schlage Utility Software (SUS) user guide for more information. Schlage button Condition... -
Page 10: Troubleshooting
The batteries may be the correct polarity. inserted with incorrect Refer to the installation instructions polarity. that came with the CO-250 lock, or this user guide for details on the above mentioned procedures. The connection The triangles on the Check the outside lock assembly... -
Page 11: Fcc Statements
FCC statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. - Page 12 Customer Service © Allegion 2014 Printed in U.S.A. P516-272 Rev. 03/14-f 1-877-671-7011 www.allegion.com/us...
