Page 1: Installation Instructions

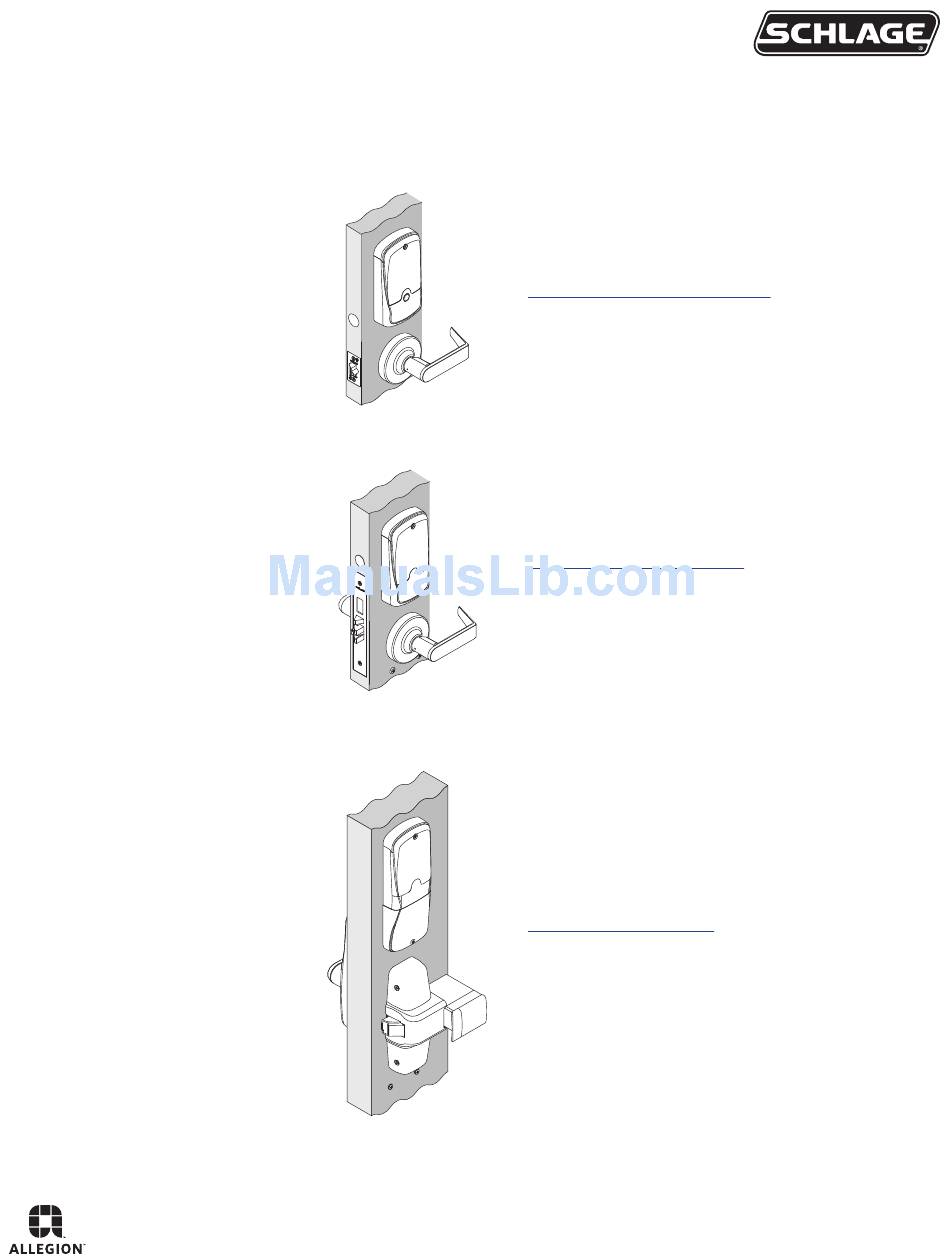

CO 200/250 Coin Cell Battery Replacement Installation Instructions CO 200/250 Series Cylindrical see page 2. CO 200/250 Series Mortise see page 3. CO 200/250 Series Exit see page 4. ©2014 Allegion 1-877-671-7011 23743362 Rev. 11/14-b... - Page 2 CO 200/250 SERIES CYLINDRICAL Remove Interior Lever Remove Rose Remove Spring Cage Remove AA Battery Assembly Unplug Ribbon Cable Remove Exterior Assembly Replace Coin Cell Battery Keypad Only Version Keypad Only Version Keypad Only Version - Replace Coin Go to Page 5 Go to Page 5 Cell Battery see page 5.
- Page 3 CO 200/250 SERIES MORTISE Remove Interior Lever Remove Rose Remove Spring Cage Remove AA Battery Assembly Unplug Ribbon Cable Remove Exterior Assembly Replace Coin Cell Battery Keypad Only Version Keypad Only Version Keypad Only Version - Replace Coin Go to Page 5 Go to Page 5 Cell Battery see page 5.
- Page 4 CO 200/250 SERIES EXIT Remove Interior Lower Cover Plate Remove Exterior Assembly Remove Back Plate Replace Coin Cell Battery Keypad Only Version Keypad Only Version Keypad Only Version - Replace Coin Go to Page 5 Go to Page 5 Cell Battery see page 5.
- Page 5 Battery must be installed with the positive (+) side facing as shown in step 4 to avoid risk of shorting battery, fire, or explosion. Reassemble and Reinstall Lock Follow original installation instructions to reinstall product. These instructions can be found online at www.schlage.com/support Back to Page 1...
- Page 6 Reassemble and Reinstall Lock Mag Swipe Reader Type All other Reader Types Follow original installation instructions to reinstall product. These instructions can be found online at www.schlage.com/support. Positive (+) side Positive (+) side facing as shown facing as shown Back to Page 1...
