Leviton HXC4D-1TW Product Specifications

Product
Specifications

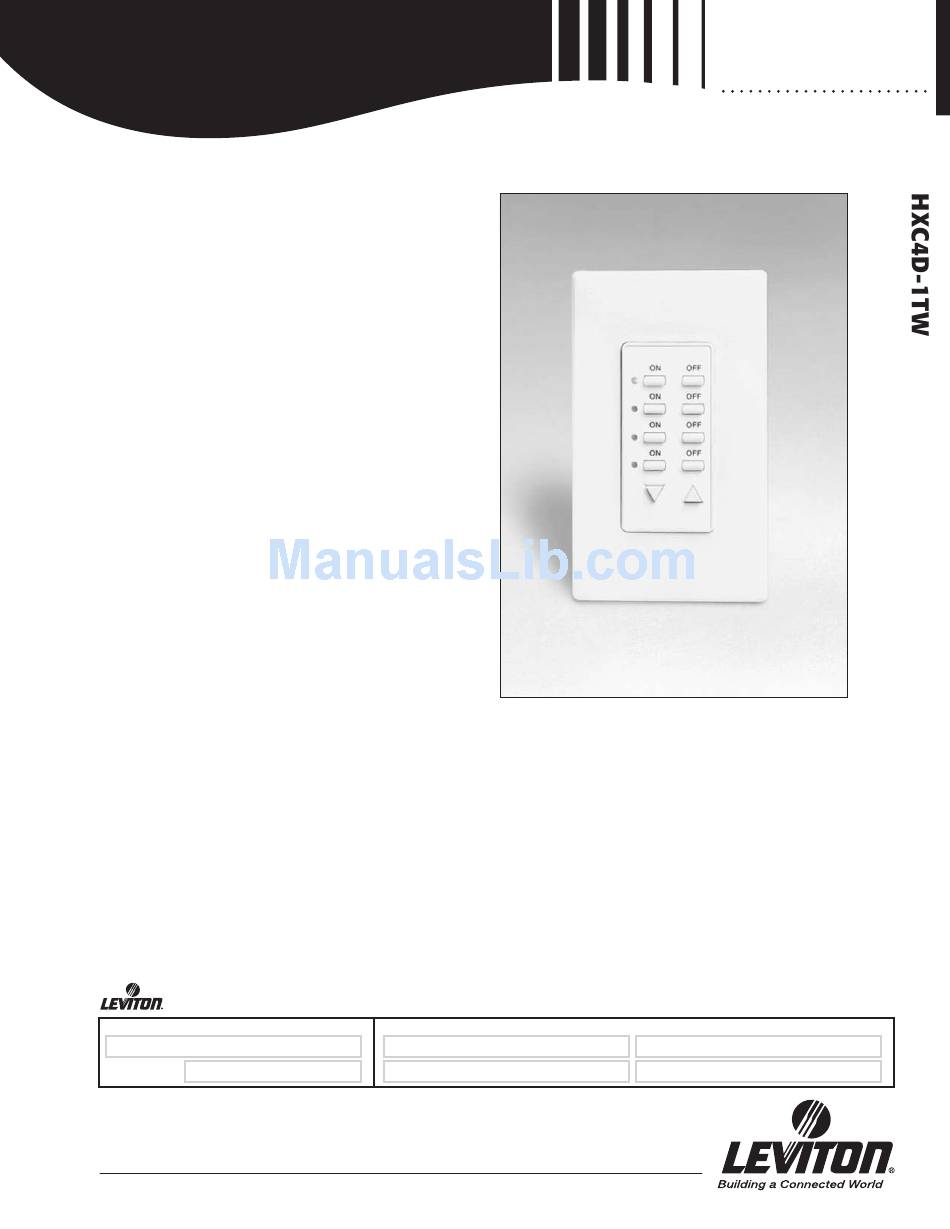

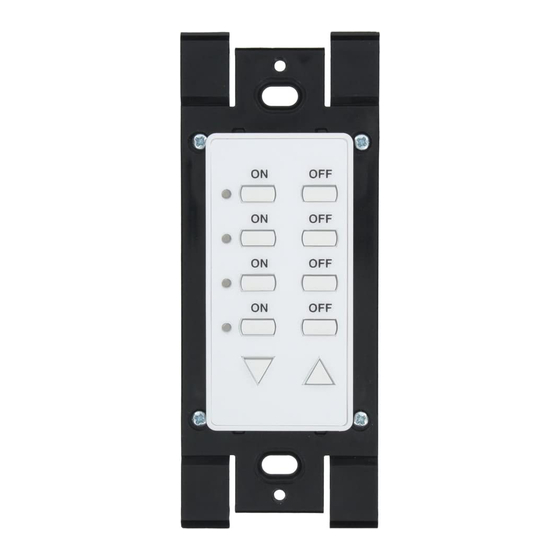

DHC Four-Address
Wall Mounted
Dimming Controller
APPLICATION
• Fits in standard wallboxes and replaces regular switches.
Note: The HXC4D-1TW does not control the load.
• Four sets of ON/OFF buttons provide 3, 4, 5-way etc.,
control of four sequentially addressed receivers without the
need for traditional 3-way wiring, and without the need for a
dedicated traveler wire.
• One set of BRIGHT/DIM buttons transmits BRIGHT/DIM
commands to the most recently selected address.
Leviton's HXC4D-1TW utilizes proven Power Line Carrier (PLC)
technology to control any manufacturer's PLC power-handling
device that complies with the X-10 communications protocol
guidelines.
These devices include, but are not necessarily limited to:
- In-wall dimmers
- In-wall switches
- Plug-in dimmers
- Plug-in relay (appliance) modules
- Fixture dimming modules
- Fixture relay modules
- Low Voltage interface modules for use with sprinkler systems,
drapery controls, home theater applications and more.
FEATURES AND BENEFITS
• Controls Leviton's DHC devices as well as any other
manufacturer's X-10 protocol compliant devices.
• Utilizes existing 60Hz 120V AC house wiring for
"No New Wires" installation, when neutral wire is present
in existing boxes.
• Leviton's patented Intellisense™ Technology greatly improves
reliability and reduces false responses compared to other
manufacturers' products by virtually eliminating signal
problems due to noise.
SPECIFICATION SUBMITTAL
JOB NAME:
JOB NUMBER:
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton-lin.com
• Green LED's illuminate to indicate ON command sent
or STATUS ON report received.
• Color change kits allow fast color changeovers. Devices
ship in White only. See chart for Color Change Kits
(must be purchased separately)
• May be used control lights and loads remotely.
• Compatible with Decora screwless and Decora standard
designer wallplates.
CATALOG NUMBERS:
HXC4D-1TW
Cat. No. HXC4D-1TW
