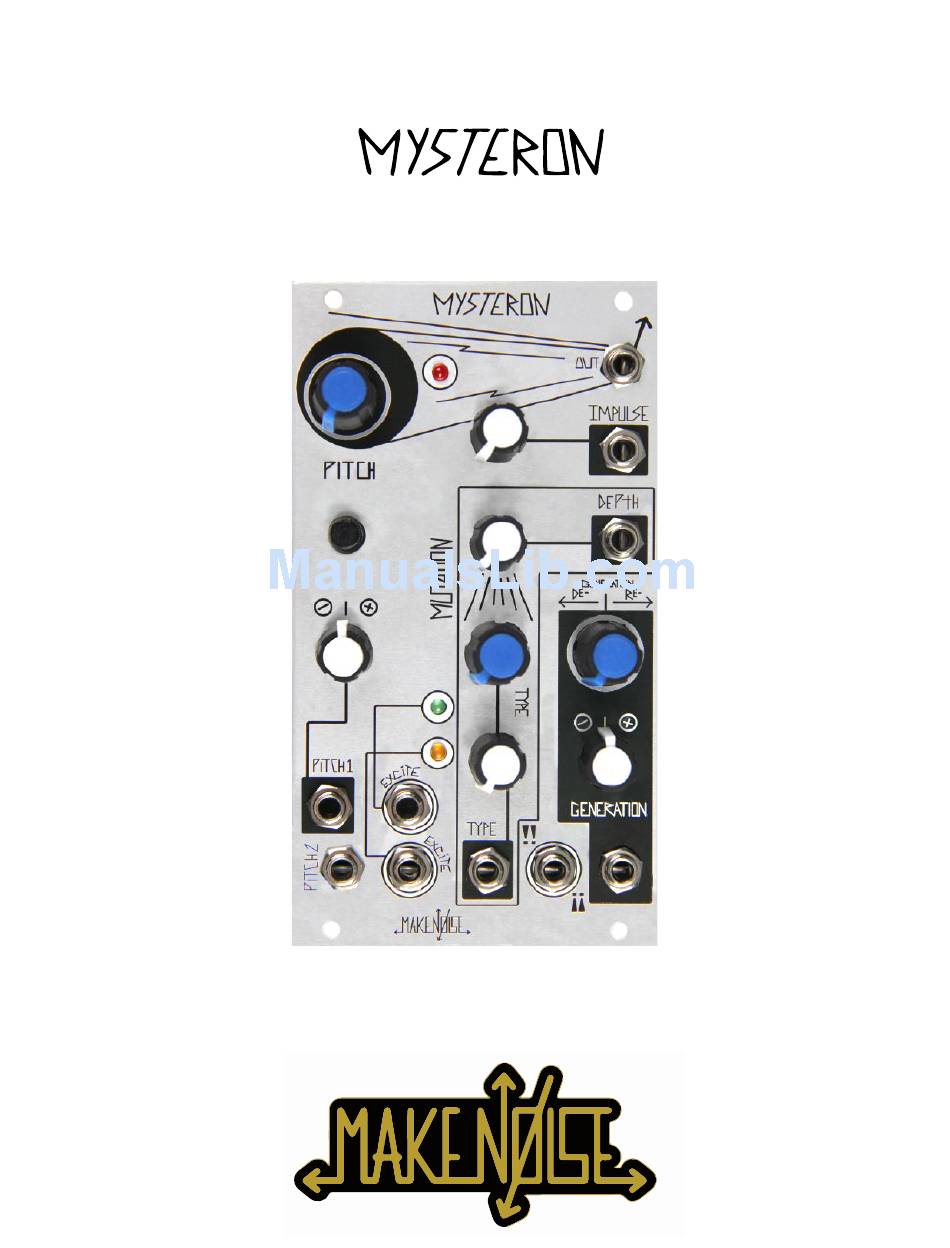

- Page 2 Malfunction resulting from wrong power supply voltages, backwards power cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.
-
Page 3: Installation

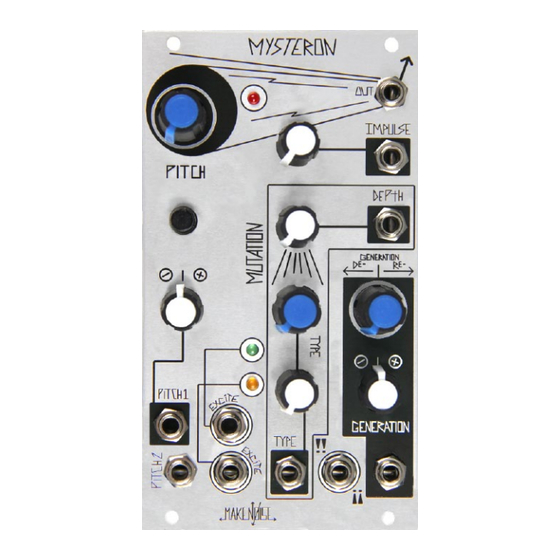

Installation: The Make Noise Mysteron is an electronic generator requiring 95 mA of +12V and 25ma of -12V regulated power and properly formatted distribution receptacle to operate. It is designed to be used within the euro format modular synthesizer system. - Page 4 For a long time, the Mysteron project had no name. It was later referred to as “Mystery Module” and then just “???” Finally, the module was named for the extraterrestrials in the long forgotten BBC television series: “Captain Scarlet and the Mysterons.
- Page 5 8. Excite LEDs: indicate excitation of the Mysteron. 9. Excite Inputs: Gate inputs for excitation. Mysteron will create no sound unless you patch something to at least one of these inputs. Requires Clock/ Gate signal amplitude of at least 1.5V and width of at least 6ms.
- Page 6 Mysteron Interface (cont’d) 12. DEPTH: sets how much the waveguides are Mutated. Operates as Combo Knob, with nothing patched to DEPTH CV IN, works as standard panel control. With Signal Patched to DEPTH CV IN, works as attenuator for that signal.
- Page 7 Flashing of the Mystery LED and forces the Mysteron to a 12 tone Chromatic scale with the pitch determined by Pitch 2 CV IN. This is excellent for using the Mysteron in a melodic way alongside other sound sources such as an STO or DPO VCO.
- Page 8 Industrial Guitar Tones Tune DPO VCOB to a fth, octave, or octave + fth above Mysteron. Adjust Fold to ~9:00, Shape between 12:00 and full CW, Angle to 12:00. Patch Mysteron output to ModDemix Signal Input, DPO Final output to ModDemix Carrier/CV Input.
- Page 9 Cartesian mode and enable all steps on the Access page. Program a sequence with lower notes toward the bottom of the René grid, and higher notes toward the top. Patch René X and Y gates to EXCITE inputs on Mysteron. Engage Quantize mode and patch René QCV to Mysteron Pitch2 input.
