Make Noise TEMPI Manual

Hide thumbs Also See for TEMPI:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEMPI and is the answer not in the manual?

Questions and answers

Related Manuals for Make Noise TEMPI

Summary of Contents for Make Noise TEMPI

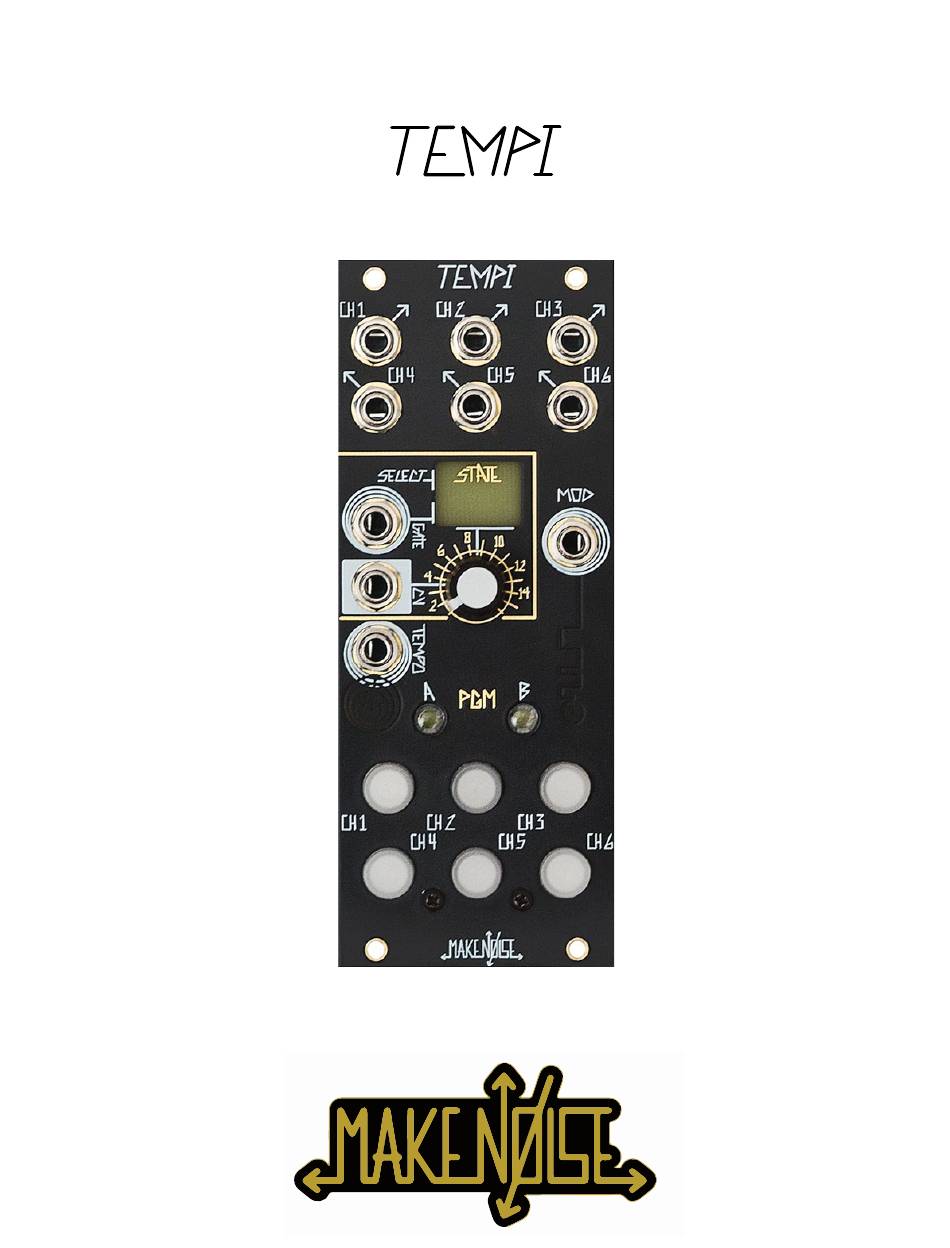

  • Page 1 v1.1...
  • Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes / modi cations not approved by the Make Noise Co. could void the user’s authority to operate the equipment.

  • Page 3: Limited Warranty

    Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 4: Electrocution Hazard

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
  • Page 5 TEMPI is deep, but all you really need to know: patch a clock to the TEMPO INput and [TAP] any CHannel BUTTON at a clock rate of your choice. The <FLASHING> of the Channel BUTTON's LED changes speed to match your [TAPS] and a clock of that TEMPO is available at the respective CHannel OUTput.
  • Page 6 TEMPI Panel Controls 13. PGM_B BUTTON/ LED 1. CHannel 1 OUTput CHannel BUTTON-1 / LED 2. CHannel 2 OUTput 15. CHannel BUTTON-2 / LED 3. CHannel 3 OUTput 16. CHannel BUTTON-3 / LED 4. CHannel 4 OUTput 17. CHannel BUTTON-4 / LED 5.
  • Page 7 When you rst power up a new TEMPI, BANK A will be lled with sixteen States representing a selection of classic and new Clock Divider/Multiplier settings. All these settings are user-editable and can be overwritten at will. Here's a short description: STATE 1 All six CHannels are “÷1.”...

  • Page 8: Quick Reference

    QUICK REFERENCE: HUMAN ProGraMming MACHINE ProGraMming HUMAN ProGraMming of MULTIPLE and DIVISIONS of Leading TEMPO VARIABLE CLOCK {PHASE} MULTIPLIER / DIVISOR [PRESS] PGM_A + PGM_B; PGM_A + PGM_B = <ON> [HOLD] PGM_A + [PRESS] CHannel BUTTON1-6 n times [HOLD] CHannel BUTTON1-6: for VARIABLE CLOCK DIVISOR Coarse adjustment (1÷n) +[PRESS] PGM_A n times to PHASE Fine Decrement MULTIPLIER/DIVISOR value...

  • Page 9: Program Edit

    ( CONT'D ) QUICK REFERENCE: {BANK EDIT} [DOUBLE PRESS] PGM_A; PGM_A = <FLASHING> [PRESS] BUTTON-1 to SELECT BANK [PRESS] BUTTON-2 to STORE ALL BANKS and current TEMPO [PRESS] BUTTON-3 to FOLLOW SELECT & TEMPO Busses [PRESS] BUTTON-4 to COPY selected BANK [PRESS] BUTTON-5 to PASTE over selected BANK [PRESS] BUTTON-6 to MUTATE over selected BANK [PRESS] PGM_A to Exit {BANK EDIT}...

  • Page 10: Leading Tempo

    Note: While externally clocking, when changing TEMPO from fast to slow, there will be some delay, as the TEMPI needs a minimum of 2 Clock pulses to measure the incoming Clock rate. For a stable CLock, once the Leading TEMPO is learned, unpatch the Clock from the external TEMPO INput. As such, to create clock jitter, pre-process your external Clock before it is patched to the External TEMPO INput.
  • Page 11 ProGraMming, patch the Leading TEMPO (i.e. MULT of the clock For HUMAN ProGraMming: patched to TEMPO INput or any CHannel TEMPI set to 1:1 using MACHINE MULTIPLIER or DIVISOR) so that the timing is audible, and ProGraM a Variable Clock by [TAPPING] the BUTTON(s)1-6 for...
  • Page 12 [TAP] BUTTON(s)1-6 simultaneously, in order to ProGraM several CHannels at once. The TEMPI counts the [TAPS] and sets this number as the DIVISOR value. If thirty-two [TAPS] are exceeded, the count stays at maximum number of thirty-two-- the counting of subsequent [TAPS] is stops with changes take PGM_A is [RELEASED].

  • Page 13: Fine Adjustment

    MACHINE ProGraMming MULTIPLIER/DIVISOR: (cont’d) For Variable Clock MULTIPLIER/DIVISOR Fine adjustment: For Variable Clock Fine decrement (i.e. to make [PRESS] PGM_A to slower), the user [HOLDS] associated CHannel Variable Clock BUTTON1-6 and [PRESSES] PGM_A. The STATE Fine decrement LED <FLASHES RED> to indicate a Variable Clock Fine decrement has been made.
  • Page 14 MACHINE ProGraMming {PHASE}: To begin {PHASE} ProGraMming, [PRESS] PGM_A and PGM_B The other way to MACHINE ProGraM is by PHASE adjustments. To enter {PHASE} ProGraMming Page, [PRESS] both PGM_A and PGM_B at the same time. While in the {PHASE} page, both PGM_LEDs are <ON> and STATE changes and HUMAN ProGraMming are ignored.
  • Page 15 MACHINE ProGraMming {PHASE}: (cont’d) While still in {PHASE} ProGraMming Page: For Fine PHASE adjustment: [HOLD] Associated BUTTON(s)1-6 For FINE PHASE decrement, the user [HOLDS] [PRESS] PGM_A to the associated CHannel BUTTON(s)1-6 and Fine PHASE decrement [PRESSES] PGM_A. The STATE LED <FLASHES (i.e.
  • Page 16 {MUTE} To MUTE a CHannel output, [PRESS] PGM_A to toggle {MUTE} ProGraM page to "ON. " In order to exit the {MUTE} ProGraM page, [PRESS] PGM_A. The associated PGM_A LED <ON> indicates that the {MUTE} ProGraM page is active. While in {MUTE} page, STATE changes are ignored. The User then [PRESSES] the associated CHannel BUTTON(s)1-6 in order to toggle the Variable Clock OUTput(s) to be MUTE enabled or MUTE disabled.
  • Page 17 <BLUE> of the MOD SETTINGS in the {ProGram EDIT} page. RANDOM <PURPLE> The MOD INput a ects the TEMPI according to the BUTTON-5 selected behavior speci ed. The two behaviors are SHIFT, which causes timing information to move between [PRESS] BUTTON5 for RUN/STOP = <RED>...
  • Page 18 MOD INput so that when a Gate "HIGH" is read, the MOD LED <FLASHES MAGENTA> and the SHIFT of parameter values occurs immediately, thus allowing for self-patching the TEMPI. Using BUTTON-6 in {ProGraM EDIT}, SHIFT may be ProGraMmed to operate in...
  • Page 19 <ON> or <OFF>. This behavior is good for creating compositional structures where you would like a Beginning or End. It is also nice when used with a MIDI to CV module to convert MIDI Note On/Note O messages to Gate Signals that can be used to drive the TEMPI.
  • Page 20 {ProGraM EDIT}: RUN / STOP (cont’d) Still in the {ProGraM EDIT} Page ([Double Press] PGM_B = PGM_B <FLASHES>), while RUN / STOP is active (i.e. BUTTON-5 = <ON>, any color), BUTTON-6 sets the behavior of the MOD IN jack to be Momentary or Toggled. Toggled Momentary BUTTON-6 = <OFF>...
  • Page 21 To RESET to STATE 1, patch a Gate to the STATE SELECT CV INput and set the Combo Pot/attenuator so at GATE HIGH, TEMPI goes to the last STATE you would like to use (STATE 8, for example). Next, patch a Clock or Gate to the STATE SELECT GATE INput and step through STATES 1 through 8.
  • Page 22 {STATE EDIT}: COPY, PASTE, and MUTATE STATE Use STATE SELECT Panel Control in order to audition and select a STATE to COPY. Note: it is important that you rst remove any modulation source controlling STATE SELECT and/or MOD in order to accurately choose the desired STATE.
  • Page 23 {BANK EDIT} Settings In order to enter {BANK EDIT} ProGraMming page, [DOUBLE PRESS] PGM_A. PGM_A <FLASHES> in order to indicate {BANK EDIT} page. To exit the {BANK EDIT} ProGraMming page, [DOUBLE PRESS] PGM_A. {BANK EDIT} [DOUBLE PRESS] PGM_A: [PRESS] BUTTON-1 to SELECT BANK [PRESS] BUTTON-2 to STORE ALL BANKS and current TEMPO [PRESS] BUTTON-3 to FOLLOW SELECT &...
  • Page 24 {BANK EDIT} Settings (CONT’d) COPY, PASTE, and MUTATE BANKS: Still in the {BANK EDIT} ([DOUBLE PRESS] PGM_A = PGM_A <FLASHES>) page, in order to COPY, [PRESS] BUTTON-1 to select the BANK to COPY. When you nd desired the BANK, [PRESS] BUTTON-4 to COPY. In order to PASTE, [PRESS] BUTTON1 to select the BANK into which you would like to PASTE.
  • Page 25 Clock from the TEMPO Bus to determine the Leading TEMPO. IT DOES NOT TRANSMIT messages. The Panel Controls for STATE and TEMPO are still useful when the TEMPI is set to FOLLOW. The STATE SELECT CV and GATE allow for o setting from and modulating around the STATE that is selected by the SELECT Bus. The TEMPO Bus may be completely overridden by patching a Clock to the External TEMPO INput, thus allowing for an independent Leading TEMPO.
  • Page 26 (i.e. patch-less) control of STATE SELECTion and TEMPO for TEMPI and other modules designed with this standard in mind. Any number of TEMPI on the same Bus Board can be controlled simultaneously by these signals, simplifying the process of macro-control over complex changes in a patch. It is worth noting, TEMPI only RECEIVES messages over the SELECT/TEMPO Buses.

  • Page 27: Tips And Tricks

    •To RESET to STATE 1, patch a Gate to the STATE SELECT CV INput and set the Combo Pot/attenuator so at GATE HIGH, TEMPI goes to the last STATE you would like to use (STATE 8, for example). Next, patch a Clock or Gate to the STATE SELECT GATE INput and step through STATES 1 through 8.
