  • Page 1 Optomix...

  • Page 2: Limited Warranty

    Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 3: Electrocution Hazard

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.

  • Page 4: Panel Controls

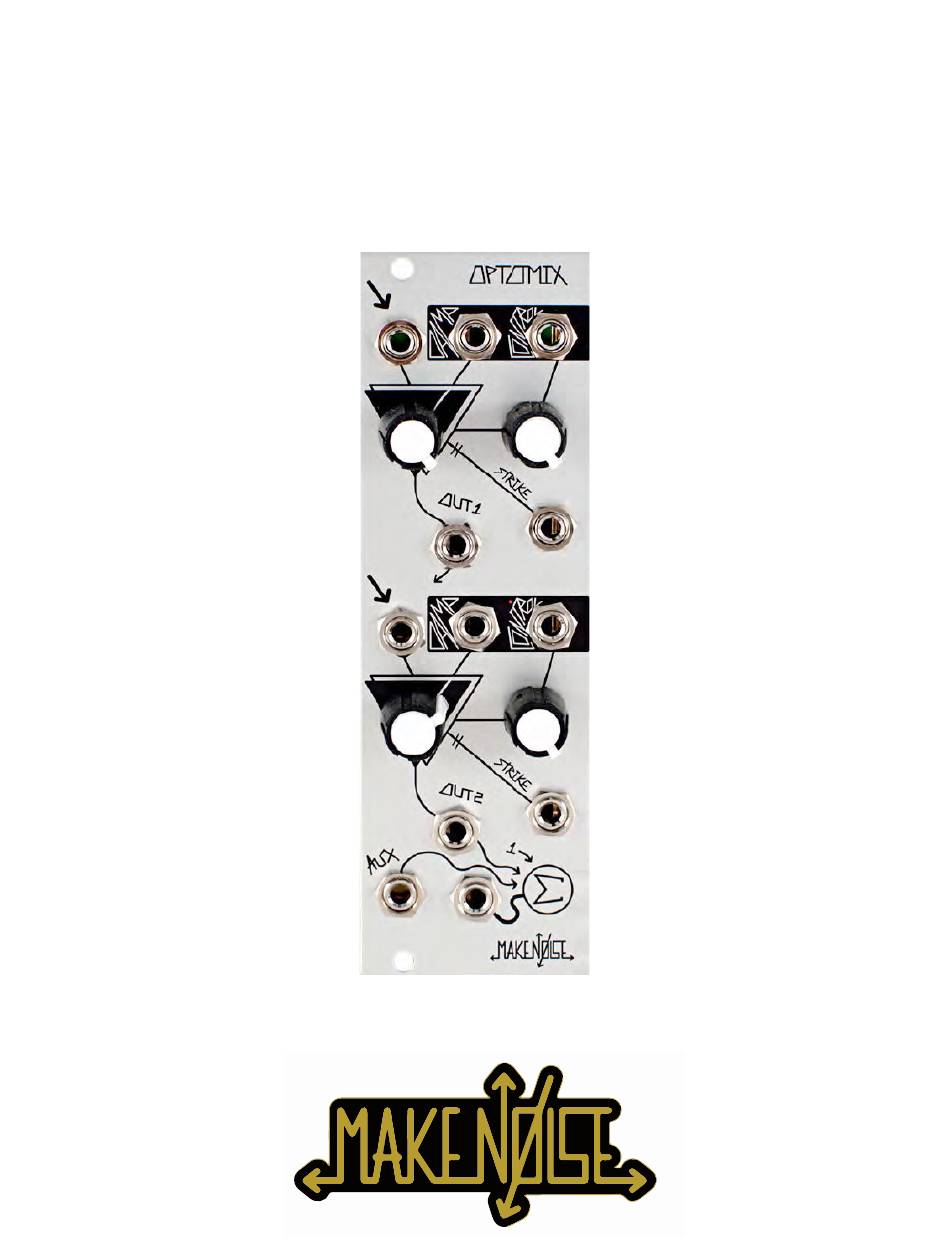

    Panel Controls Signal IN CH. 1: Direct coupled signal input capable of accepting audio or control signals. Range of up to 18Vpp. DAMP CV IN CH. 1: Direct coupled, CV input for the corresponding channel’s DAMPing parameter. Normalized to +8V so that with nothing patched the associated attenuator operates as a manual control for the parameter.
  • Page 5 Capable of accepting audio or control signals. Range of up to 10Vpp. SUM OUT: The sum or mix of all signals processed by the Optomix is output at this jack. 10Vpp (depending upon settings and source material).
  • Page 6 VCAs look elsewhere! If you seek to program extremely short sounds, clicks, pops and ticks, the Optomix is not the best choice. What the Optomix does offer is extremely low noise and low distortion and a smooth, natural sounding circuit.
  • Page 7 (LFO, Ran-dom, Noise etc...) Program a palm mute by applying your gate signal to both STRIKE IN on the Optomix and the TRIGGER IN on MATHS. Set MATHS for longer Rise time, at least 60% and short Fall time (less then 50%). Apply Signal...
  • Page 8 Set up a VCO for two-operator FM by applying a SINE wave to its linear FM input, and patch it to the input of an Optomix. Patch Pressure Points Common Gate OUT to the Optomix Strike Input, and Gate OUT 3 to the DAMP input.
